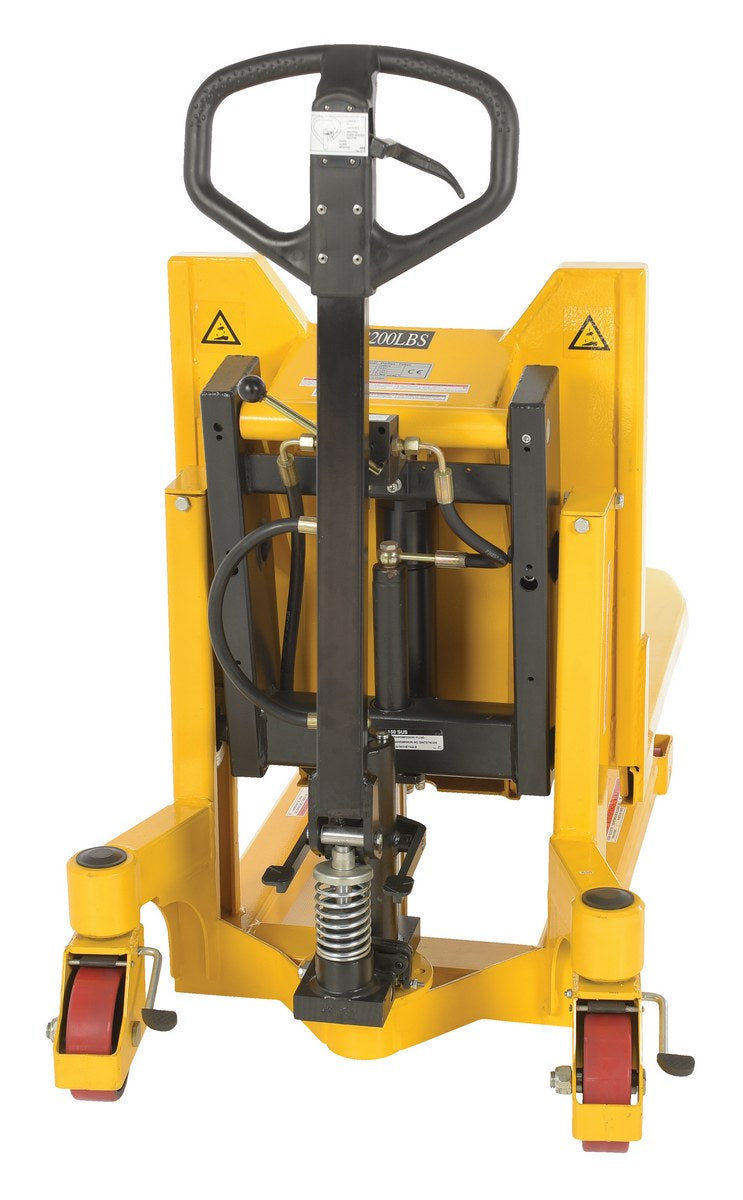

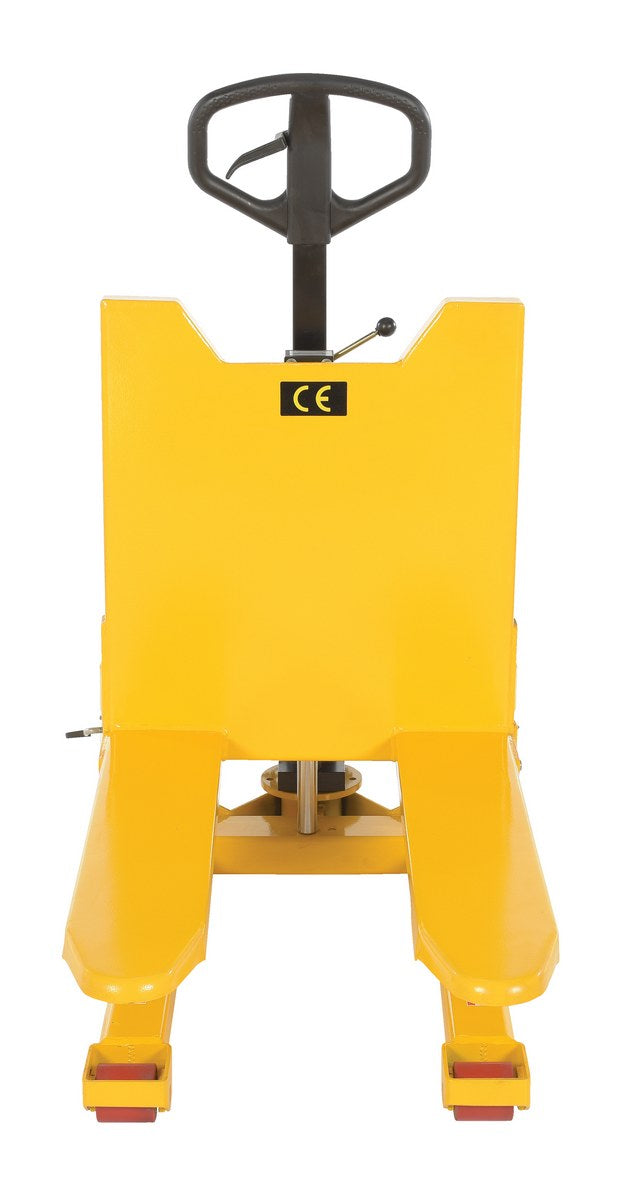

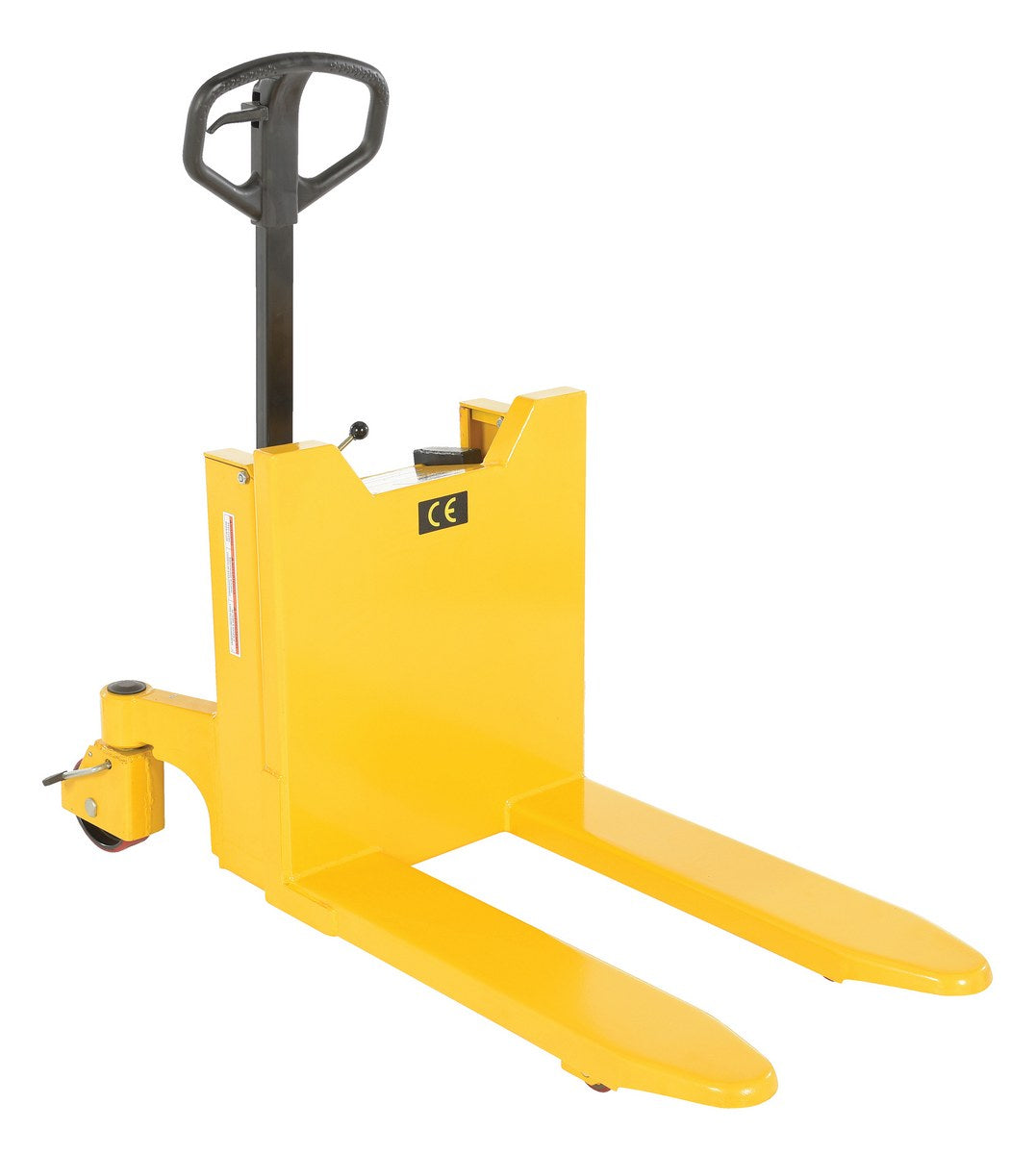

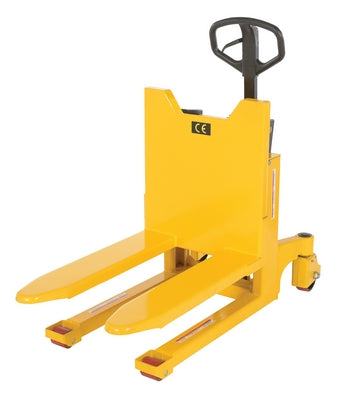

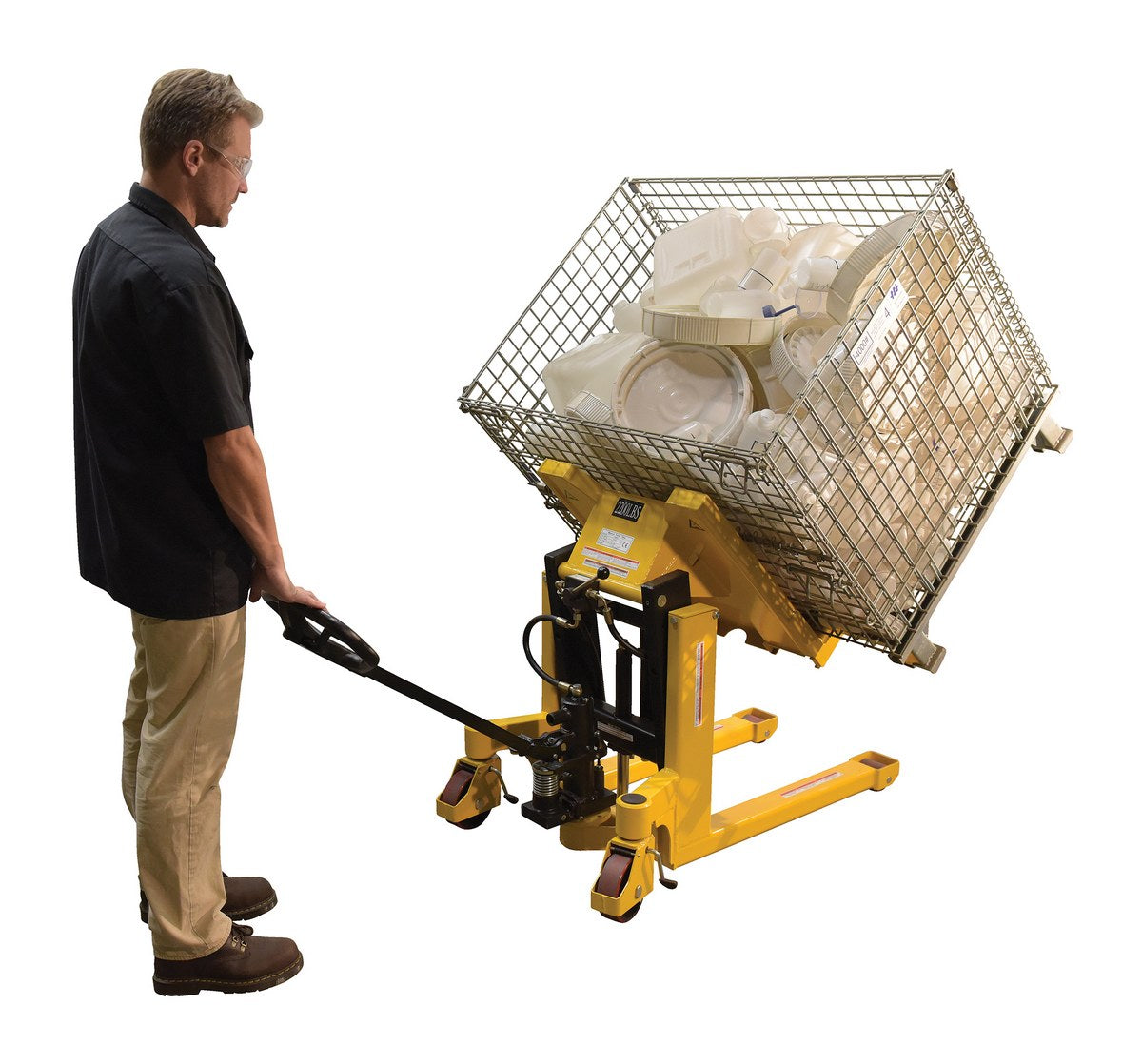

The Tilt Master is a manual lift that raises, tilts and moves crates, boxes and open-bottom pallets. It holds the load at a comfortable working height so you can reach in without bending or over-reaching. The forks tilt up to 90 degrees, and the unit is rated at 2200 LB.
Key features
- Lifts, tilts and transports crates, boxes and pallets with an open bottom.
- Forks tilt to 90 degrees.
- Holds loads at an ergonomic height to cut down on bending and reaching.
- 6" x 2" polyurethane swivel casters with brake and foot protectors.
- Stainless steel version available.
Specifications
| Type | Manual tilt master |
| Capacity | 2200 LB |
| Fork tilt | Up to 90 degrees |
| Casters | 6" x 2" polyurethane swivel, with brake and foot protectors |
| Width between forks | 9-1/2" |
| Overall fork width | 22" |
| Individual fork width | 6-1/4" |
| Loads | Crates, boxes and open-bottom pallets |
A stainless steel version is also available. It is built for strength and durability through daily use. A DC version is shown at the top of this page.
Follow the manual for setup and use.
Questions
Can it handle closed-bottom pallets?
It is designed for crates, boxes and pallets with an open bottom.
Is there a stainless steel version?
Yes. Call 833-738-2671 to order the stainless steel version.
How far apart are the forks?
9-1/2" between forks. Overall fork width is 22" and each fork is 6-1/4" wide.
