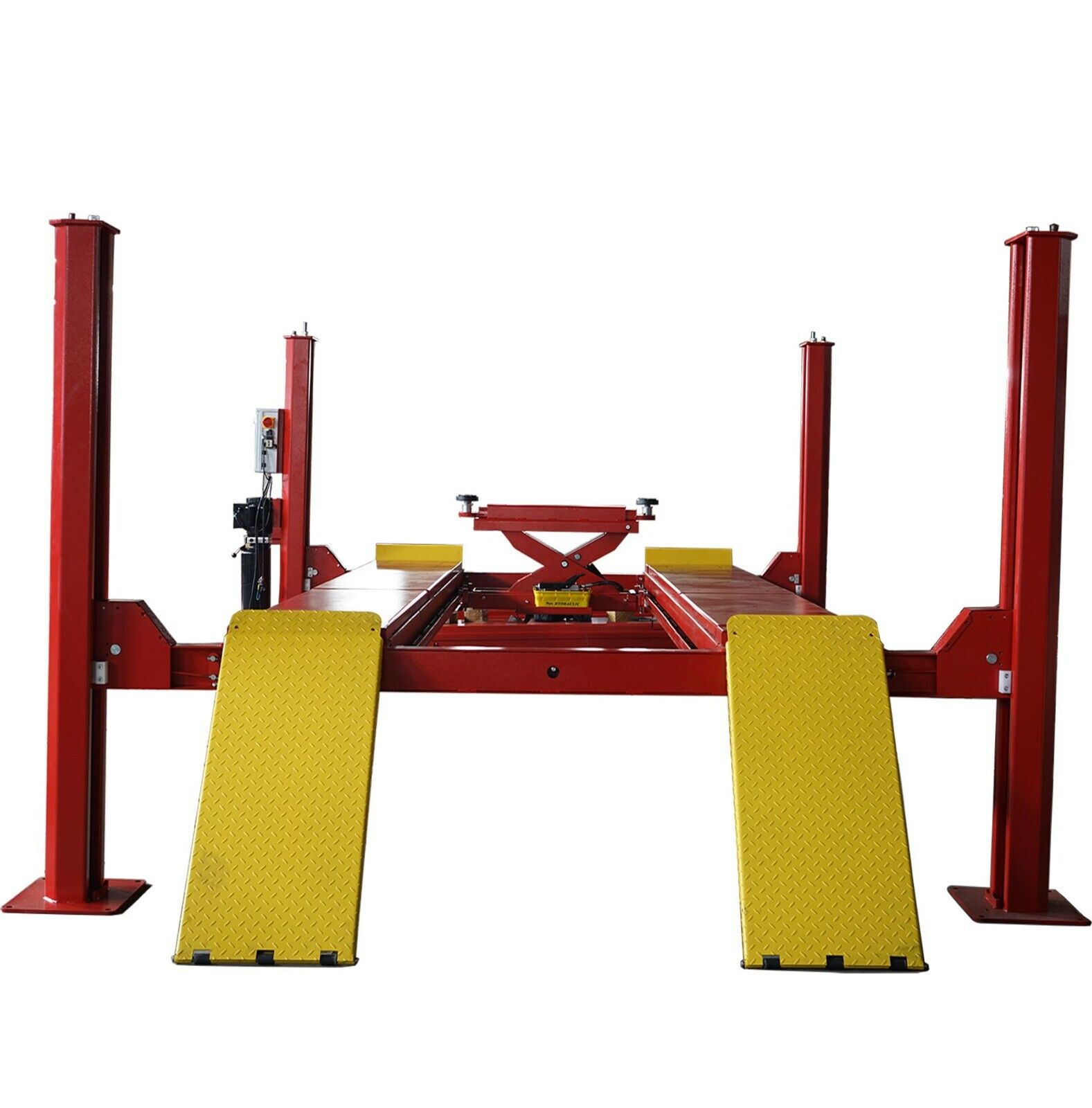

The Katool KT-4H150 is a heavy duty 4-post alignment lift rated for 15,000 lbs. It suits shops and serious home garages that lift everything from compact cars to larger trucks and want to run wheel alignments on the same lift. Alignment turntables and a 6,000 lb rolling jack are included.
Key features
- 15,000 lb lifting capacity for cars, SUVs and larger trucks

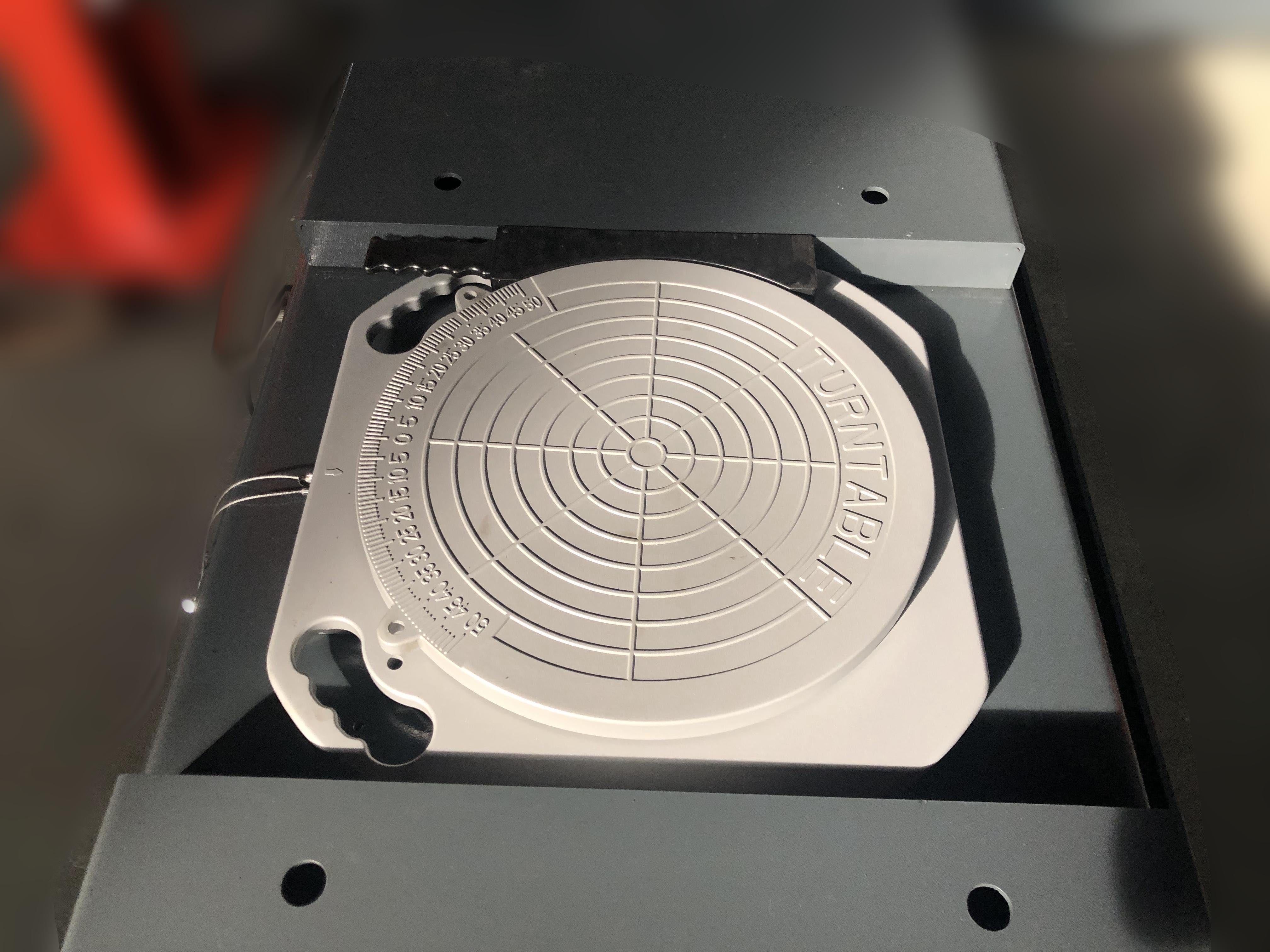

- Turntables included for wheel alignment work

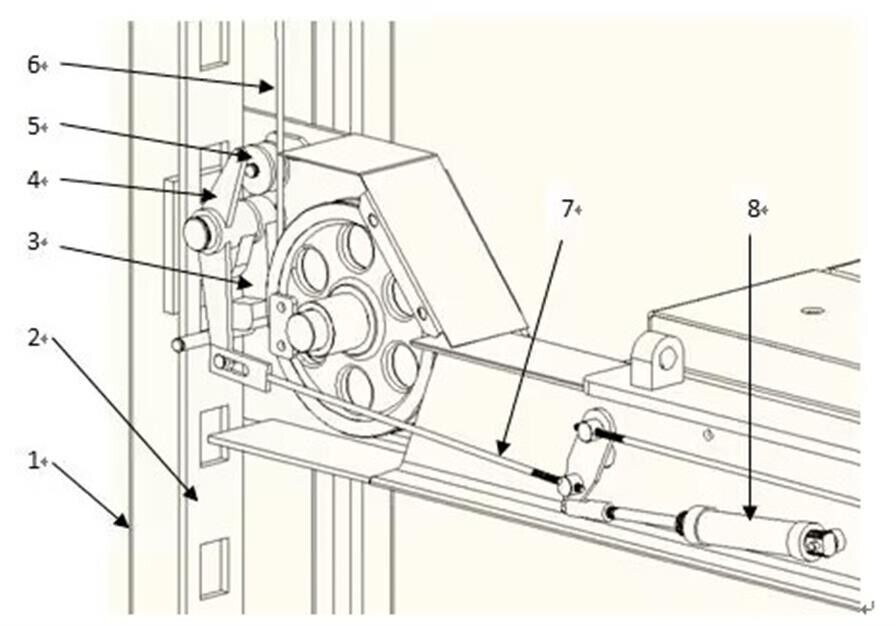

- 4 mechanical locking devices, each with a primary and a secondary safety lock
- Single-point manual safety lock release
- Power side column can be installed on either side, front or rear

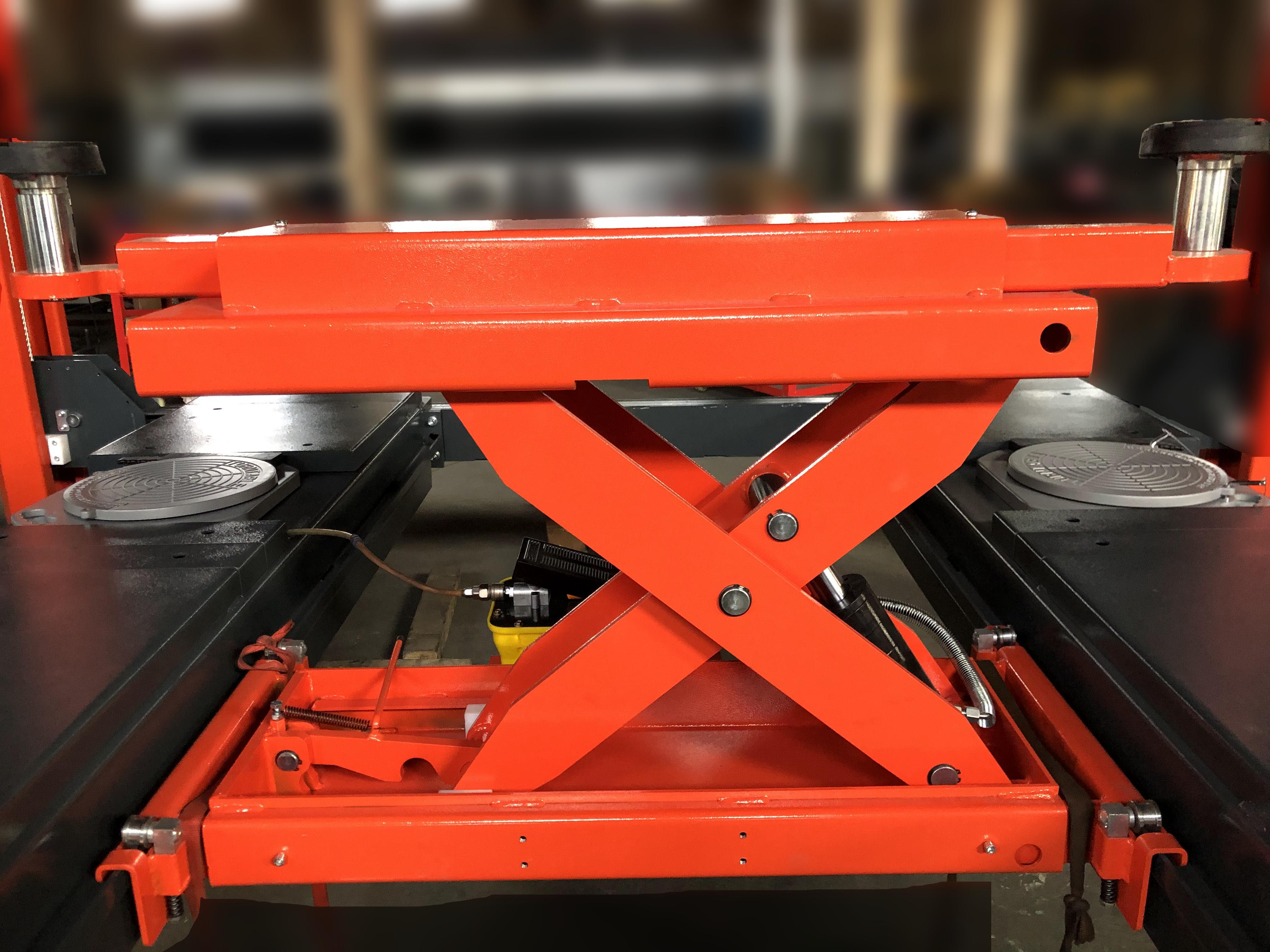

- 6,000 lb rolling jack included for wheels-free work
- CE approved and certified. Built to the 115% dynamic load standard and tested at 150% static load.
Specifications
| Model | Katool KT-4H150 |
|---|---|
| Lift type | 4-post alignment lift |
| Lifting capacity | 15,000 lbs |
| Rolling jack | 1 included, 6,000 lbs |
| Alignment turntables | Included |
| Safety locks | 4 mechanical locking devices with primary and secondary locks |
| Lock release | Single-point manual |
| Power side | Either side, front or rear |
| Load testing | 115% dynamic, 150% static (CE) |
| In the box | 4-post lift, hydraulic pump, rolling jack, 8 anchor bolts |
Questions
Does this lift get anchored?
Yes. It ships with 8 anchor bolts. Follow the manual and check the manufacturer's concrete and anchor spec before you install.
Can I do wheel alignments on it?
Yes. Turntables for wheel alignment come with the lift.
What do I need on delivery day?
A forklift must be on site to unload it.
Questions on fit, power or install? Call us at 833-738-2671.
