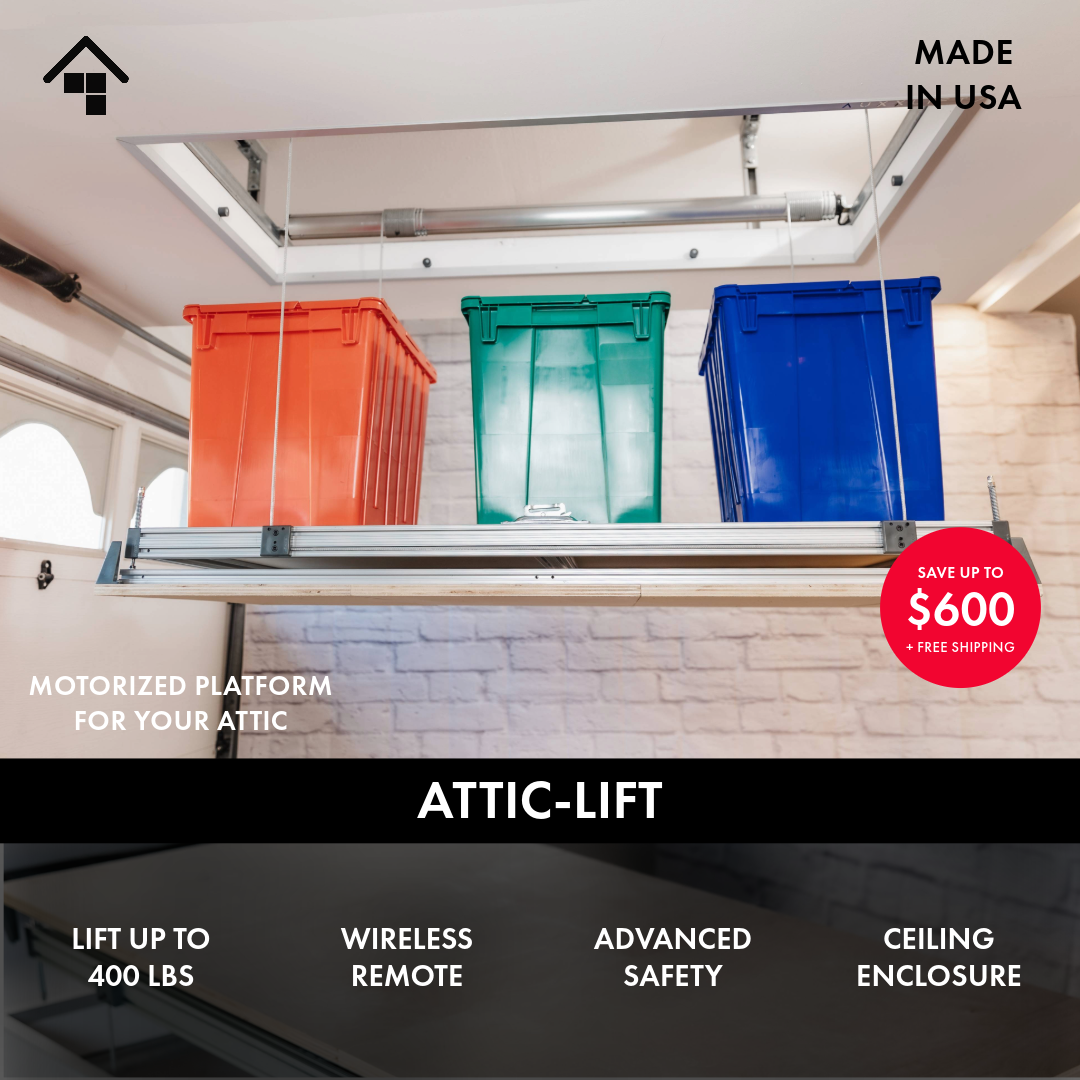

The Attic-Lift

Best value on the market - load up to 400 lbs, easily store items in your attic at the push of a button, easy install includes hardware for a sealing cover, small footprint in the attic, fully adjustable to accommodate all joist sizes, industry-leading safety & strength.

General specs

• Model: Attic-Lift 1400

• Lifting Capacity: Up to 400 lbs

• Max. Travel Distance: 13'-6" (18'-0" w/ Extension)

• Speed: Avg. 30 sec for 9' ceilings

Size and Weight

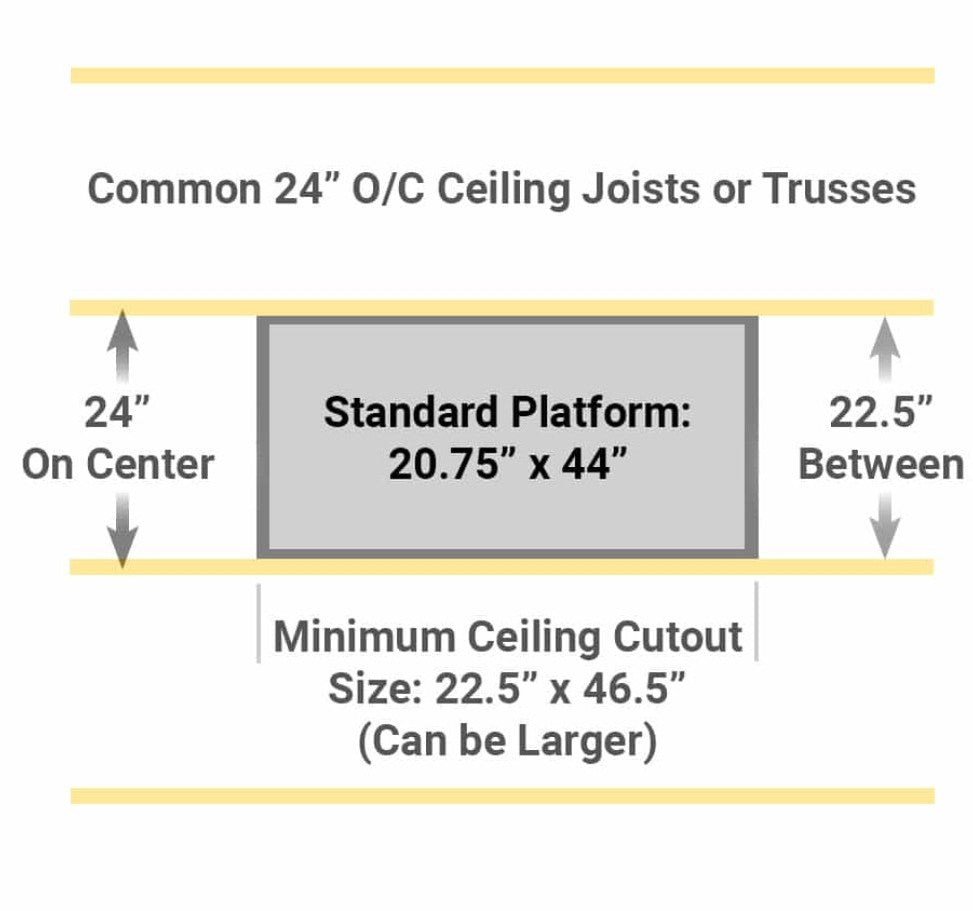

Standard (20.75 x 44)

• Platform Size: 20.75 in x 44 in

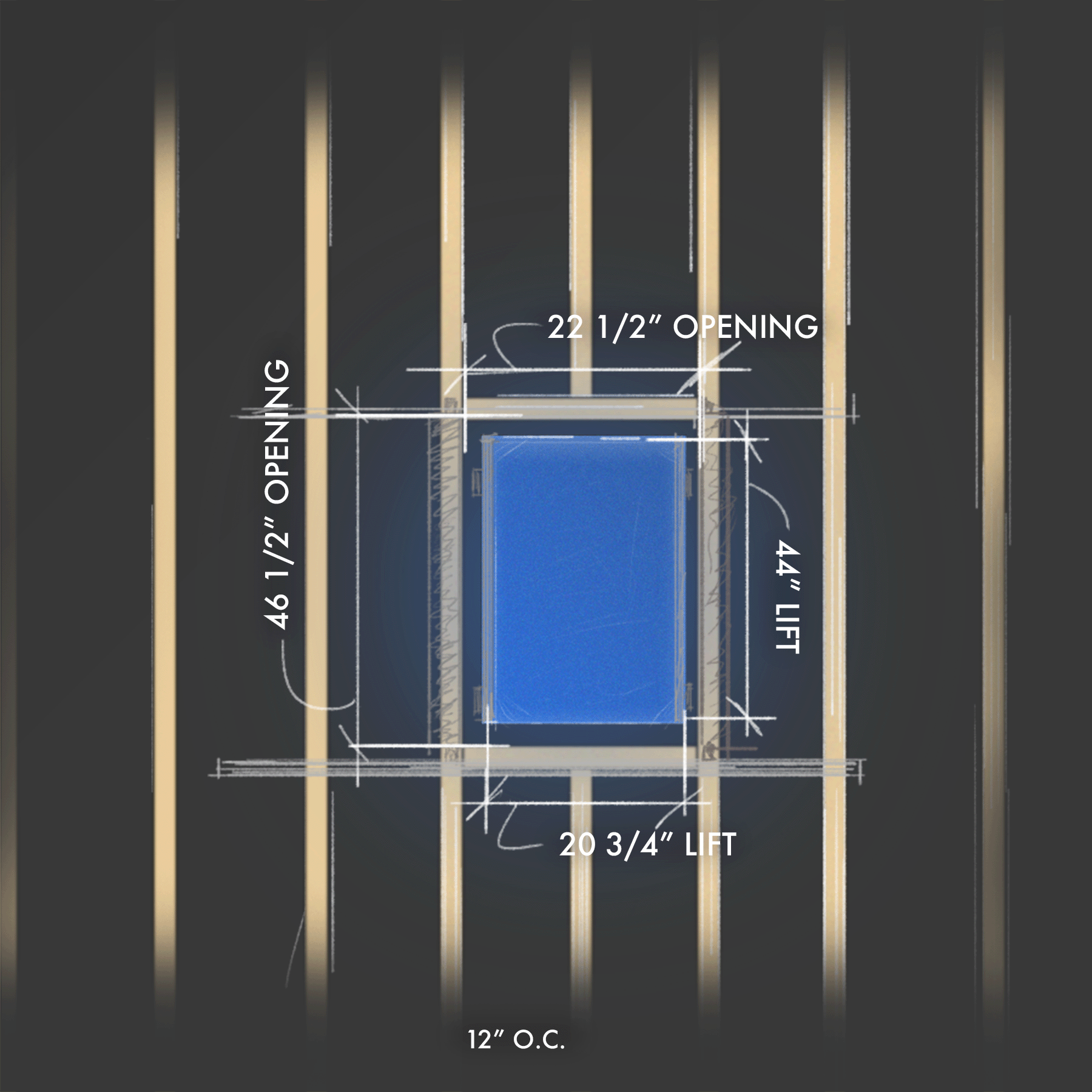

• Ceiling Cutout Size: 22.5 in x 46.5 in

• Platform Weight (Empty): 26 lbs

• Ceiling Support Weight (Motors, etc): 60 lbs

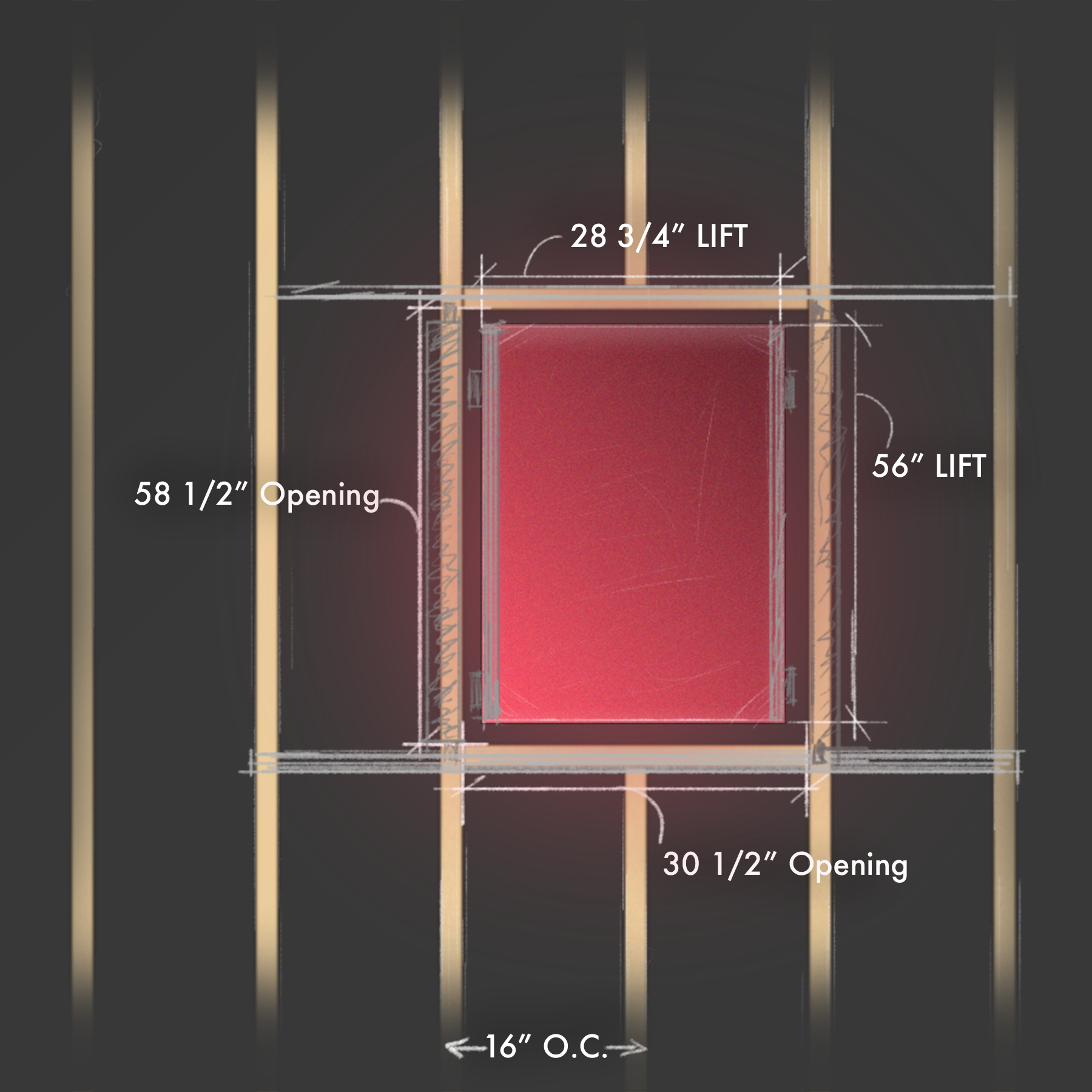

Max (28.75 x 56)

• Platform Size: 28.75 in x 56 in

• Ceiling Cutout Size: 30.5 in x 58.5 in

• Platform Weight (Empty): 37 lbs

• Ceiling Support Weight (Motors, etc): 66 lbs

Ceiling Support

• Type: (2) 1 5/8" x 60" strut channel

• Fasteners: (8) 5/16" x 4" SPAX© Lag Bolts

• Cable: 1/8” Vinyl-coated Steel 7x19

• Cable Strength: 2,000 lbs

Operating Requirements

• Switch Voltage: 110V / 120V

• Transmitter: 433.92 MHz

• Electrical Cord: 10 FT / 16 gauge / NEMA 5-15

• Min. circuit size: 15 amp

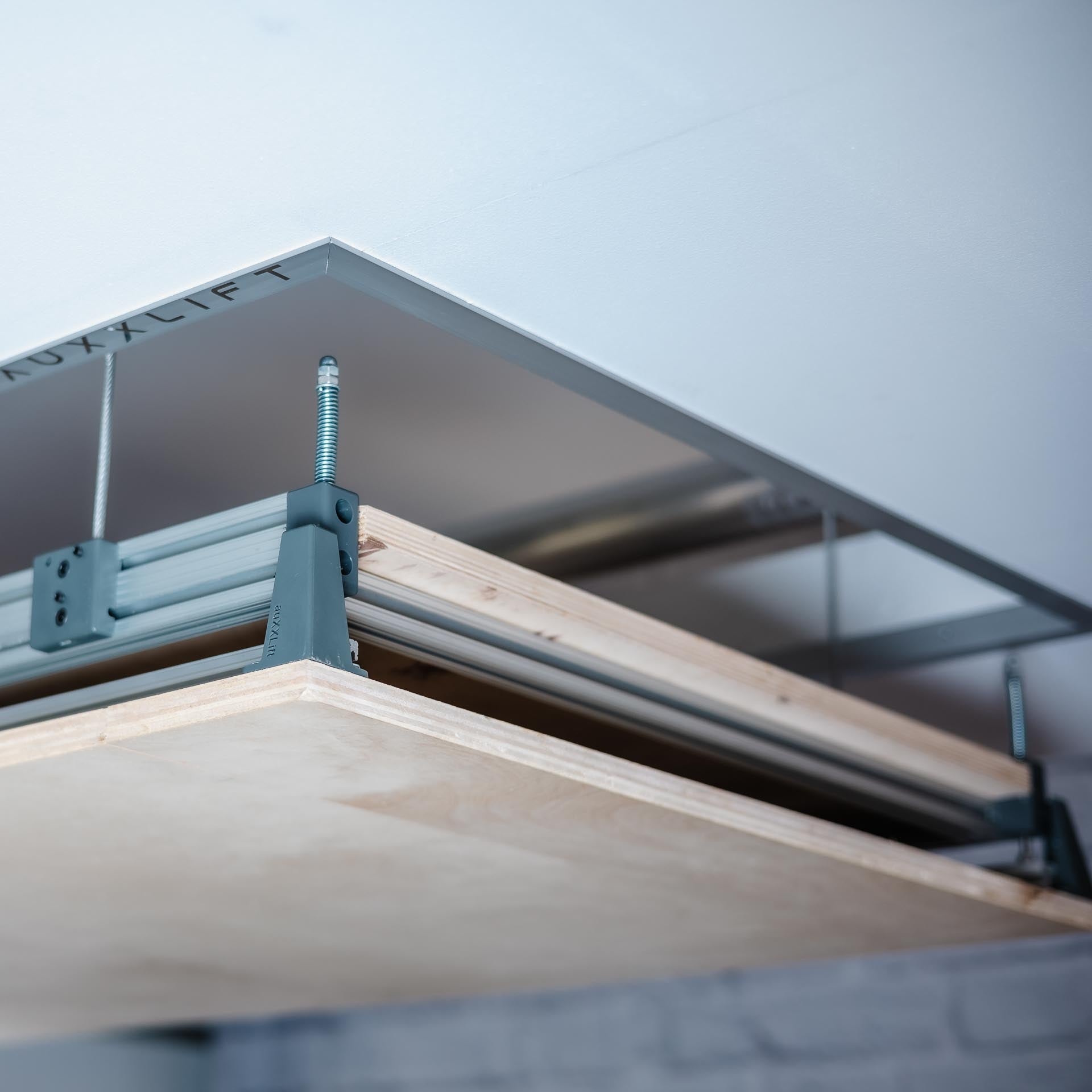

Platform Specs

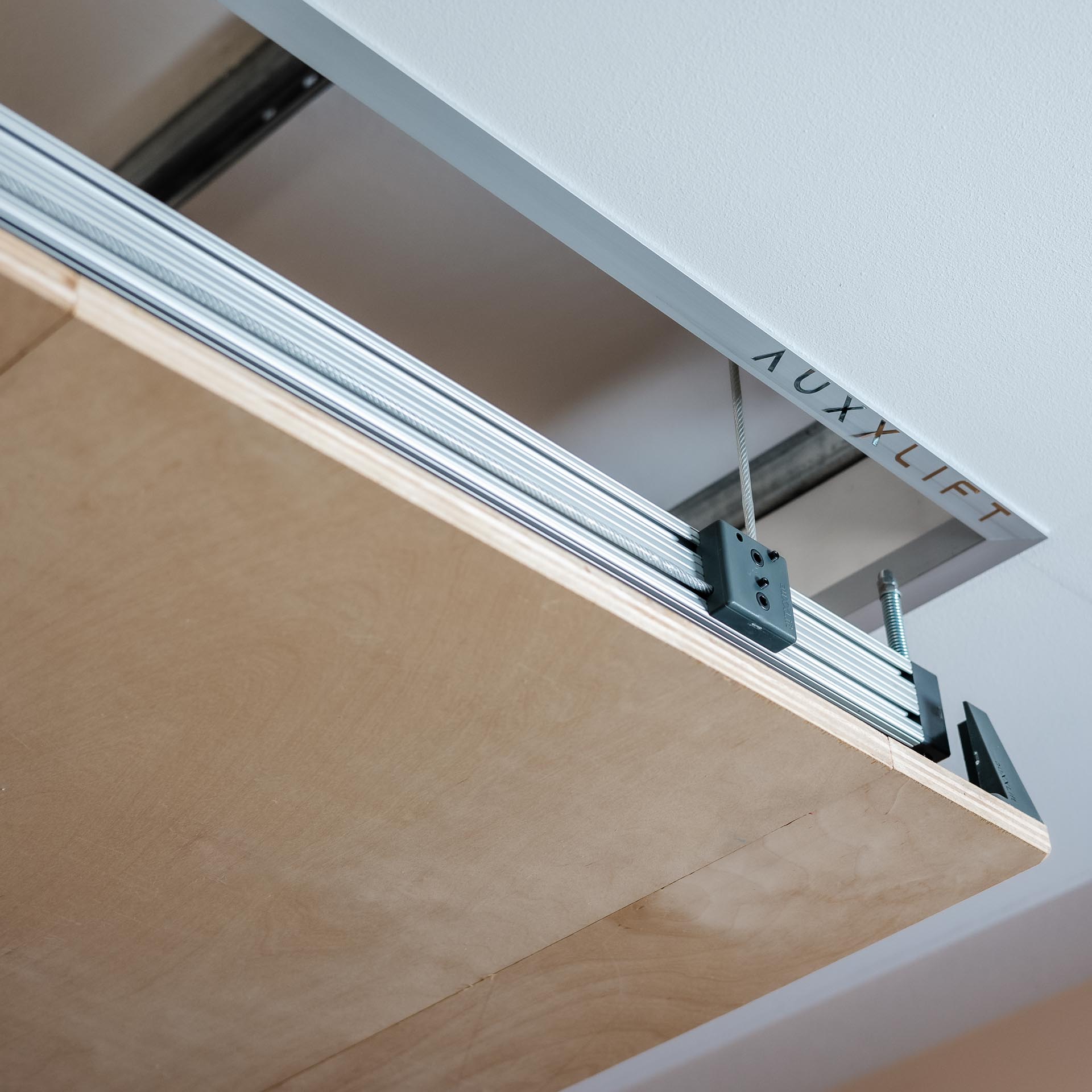

• Frame: T-slotted framing rail

• Material: 6105-T5 aluminum alloy

• Decking: 3/4 in thick Oak Plywood (5-ply)

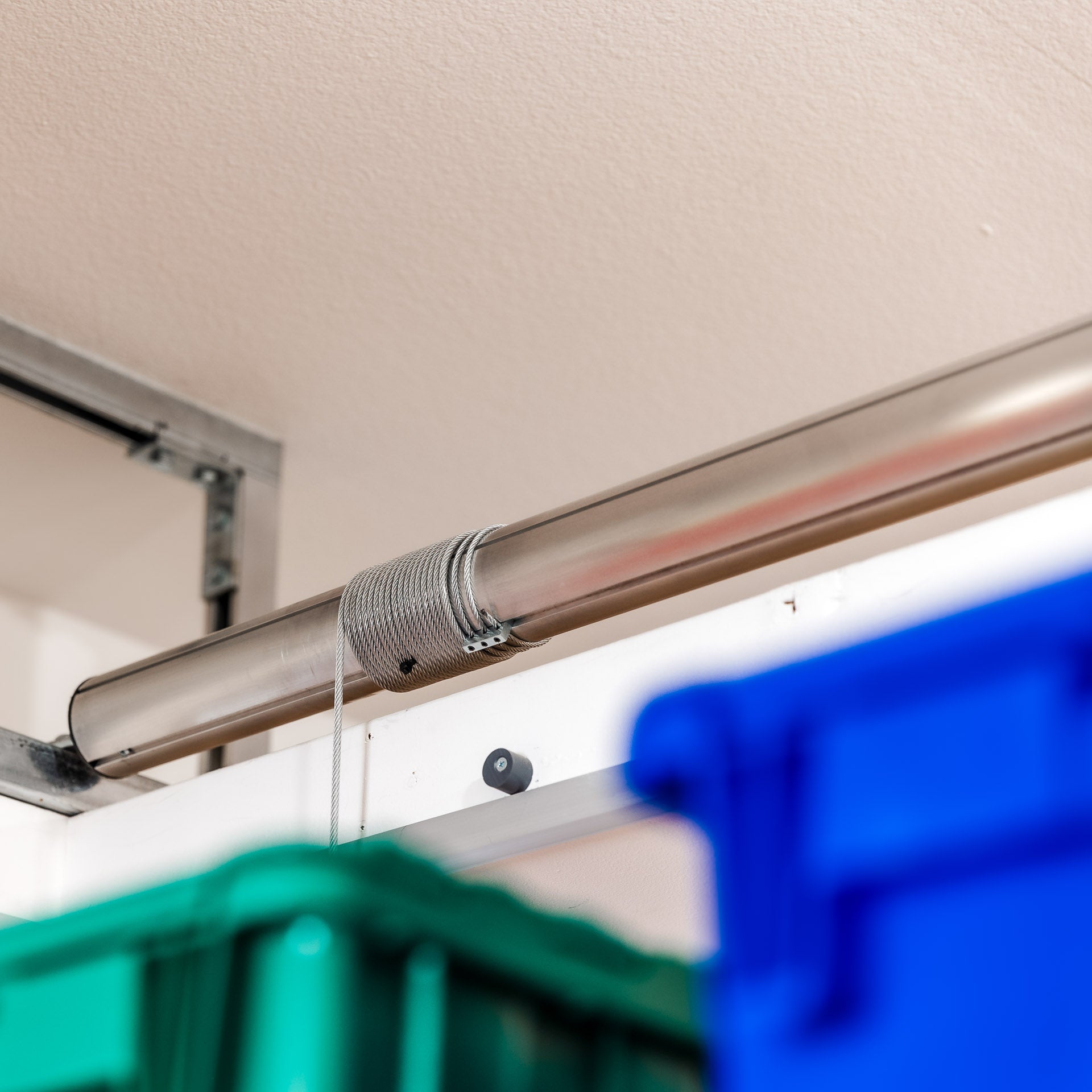

Motors

• Type: IP44 (T-Motor)

• Rated Power: 235 W

• Rated Current: 2.2 A

• Voltage / Phase: 100-120V AC / Single

• Tube Diameter: 70mm (2-3/4 in)

• Motor speed: 13 rpm

• Duty Cycle @ Max. Capacity: 3 min on, 15 min off
