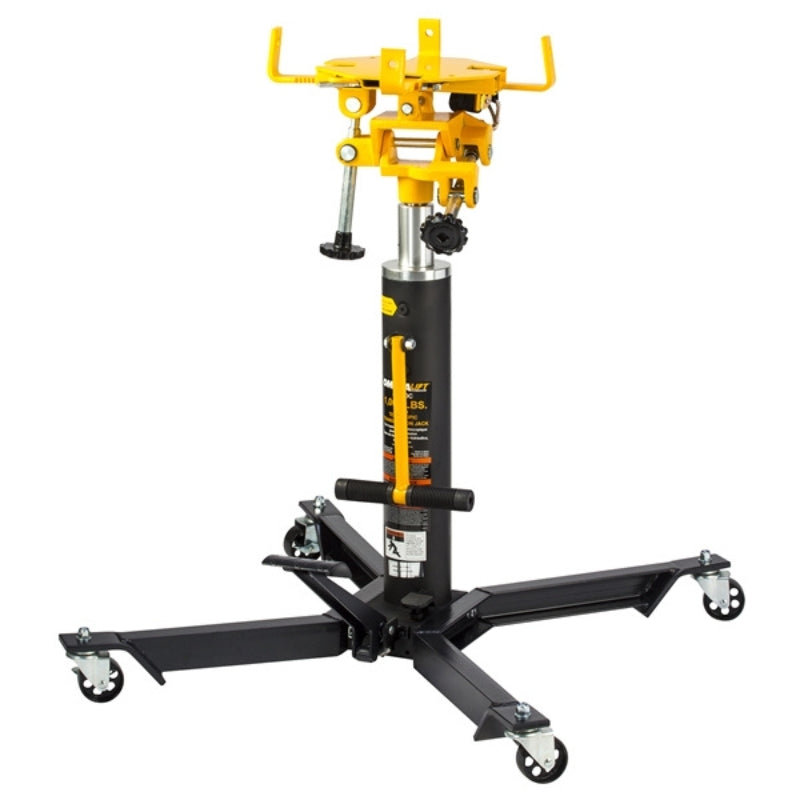

The Omega 41000C is a 1000 lbs two stage transmission jack for high reach work under a lifted vehicle. It goes from 37 7/8 to 77 5/8 inches using a foot pedal. The expanded saddle area reaches 21 x 21 inches.
Key features
- Two-stage chrome-plated rams for high reach.
- Foot pedal operation.
- Extra-wide base lowers the center of gravity for stability.
- Handle release pedal for safer lowering.
- Rugged steel wheels and full swivel ball bearing casters.
Specifications
| Brand | Omega |
|---|---|
| Model | 41000C |
| Capacity (per title) | 1000 lbs |
| Minimum height | 37 7/8 inches |
| Maximum height | 77 5/8 inches |
| Saddle base | 8 7/8 x 7 1/8 inches |
| Expanded saddle area maximum | 21 x 21 inches |
| Base size | 34 1/8 x 36 1/8 inches |
| Gross weight | 178 pounds |
| Rams | Two-stage, chrome-plated |
| Wheels | Rugged steel wheels, full swivel ball bearing casters |
Documentation
Follow the manual for setup and use.
Questions
What is the height range?
37 7/8 inches minimum to 77 5/8 inches maximum.
How big is the saddle?
The saddle base is 8 7/8 x 7 1/8 inches and expands to 21 x 21 inches.
How much does it weigh?
Gross weight is 178 pounds.
