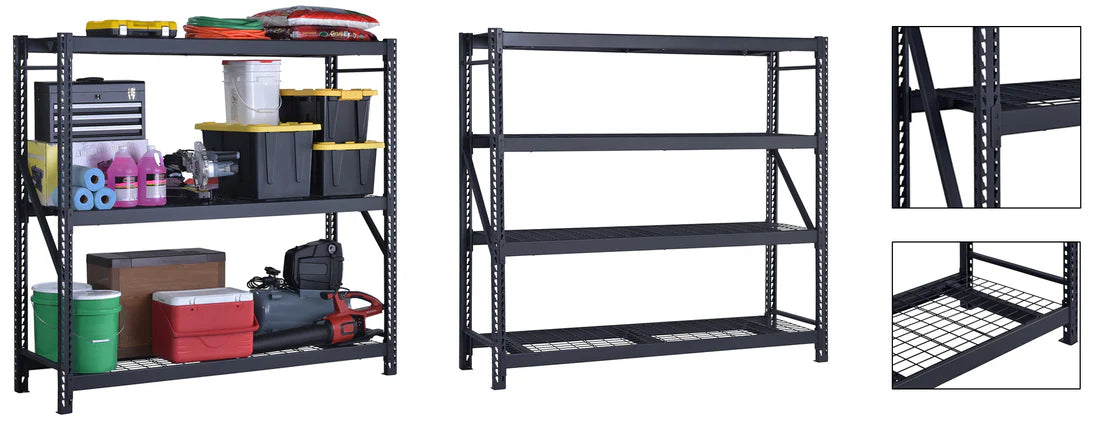

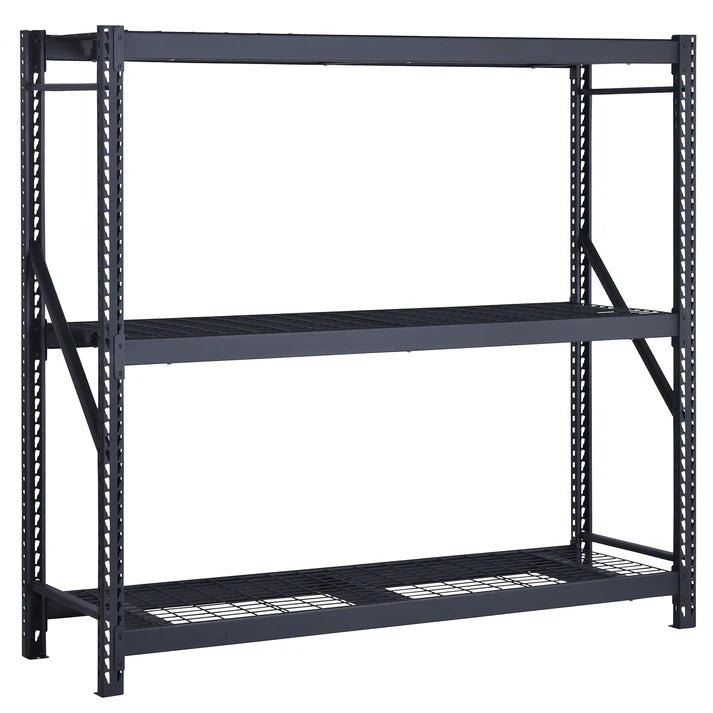

The MuscleRack™ heavy duty storage rack is built from welded steel and sized 77 x 24 x 72 inches. It is made for garages, shops and warehouses that need strong open shelving. Most models in this line carry 2000 lbs per shelf with an evenly spread load.
Key features
- Industrial grade welded steel frames and beams.
- Goes together in minutes.
- Shelves adjust in 1-1/2” steps to fit items of many sizes.
- Black coated wire decks let you see stock, allow airflow and collect less dust.
- Three tie-bars per level support each shelf.
- Add more units with a common post to build a larger system.
Specifications
| Number of shelves | Model | Size (in.) W x D x H | Shelf capacity (lbs., evenly distributed load) |
|---|---|---|---|
| 3 | 7224PRBWWD3 | 77x24x72 | 2000 |
| 3 | ERZ772472WL3 | 77x24x72 | 2000 |
| 4 | BW2472W4BLK | 77x24x72 | 2000 |
| 4 | ERL772472W4 | 77x24x72 | 2000 |
| 4 | ERX2472-4 | 77x24x72 | 2000 |
| 4 | ER7824W4 | 77x24x78 | 2000 |
| 4 | ER842484W4 | 84x24x84 | 1500 |
| Construction | Industrial grade welded steel frames and beams |
|---|---|
| Shelf adjustment | 1-1/2” increments |
| Decking | Black coated wire |
| Shelf support | Three tie-bars per level |
| Floor mounting | Foot plate |
| Expansion | Common post connects more units |
| Certification | NSF Certified for dry food storage |
Questions
How much weight does each shelf hold?
2000 lbs evenly distributed on the 77x24 models. The 84x24x84 model is rated 1500 lbs.
Can it be bolted to the floor?
Yes. It has a foot plate for floor mounting.
Can I add more racks later?
Yes. Extra units connect with a common post.
