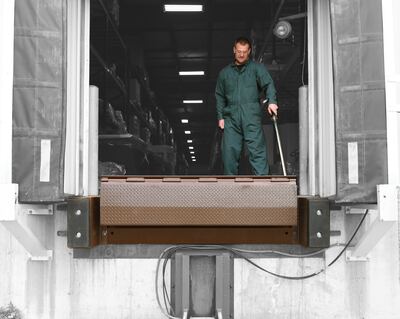

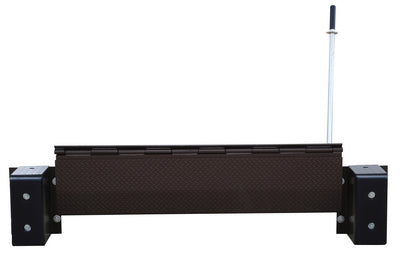

The Edge-O-Dock leveler is a 72 in. mechanical dock leveler with a 20K rating that mounts to the face of your loading dock. It suits docks 48 inches high or more and needs no concrete pit. When the trailer pulls away, the lip falls back behind the bumpers on its own.
Key features
- Mounts to the dock face. No concrete recess needed.
- Lip drops behind the bumper face by itself when the trailer leaves.
- Tread plate deck gives a non-slip grip.
- Solid steel build for long service.
- Quick install on any loading dock with a steel dock edge.
- Bumpers and install instructions come with it.
Specifications
| Model | Mechanical Edge-O-Dock leveler |
|---|---|
| Capacity (per title) | 20K |
| Width (per title) | 72 in |
| Mounting | Permanently attaches to dock face |
| Recommended dock height | At least forty-eight (48) inches |
| Concrete recess | Not required |
| Bumpers | 2" x 8" x 18" (included) |
| Standard ramping | Twenty-nine (29) inches (29-13/16" with 30,000 lb. capacity) |
| Long ramping length | 36-5/8", available for smaller grade on PP and PE series levelers |
| Deck surface | Tread plate |
| Construction | Solid steel |
Installation requirements
- A steel dock edge, approach ramp, or approach plate is needed on the dock face.
- A continuous weld is required completely across the top and down both sides of the mounting plate.
- The mounting plate must also be bolted to the dock face through the anchor holes provided on the plate.
How it operates

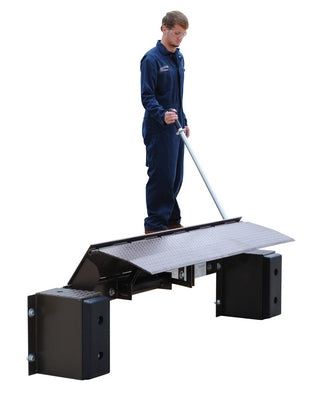

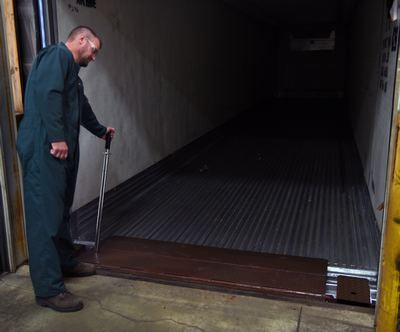

Mechanical: Set the actuation handle in the pocket of the inner lip and pull down toward the floor. Then push the handle forward until the lip rests on the truck bed. When the trailer leaves, the lip retracts behind the bumper face automatically.
Manual hydraulic hand pump version: The hand pump lifts the leveler and extends the lip. The operator opens the lowering valve so the deck comes down and rests on the trailer. It comes with hand pump, wall-mount brackets, cylinder, 15 feet of hydraulic line and oil. The truck must pull out for the leveler to return to its stored position.
Electric hydraulic version: The easiest to run. With the truck backed to the dock, push and hold the control button. The leveler rises and the lip extends. 115V, 1-phase power standard. It comes with motor, pump, control box, cylinder, lines, and oil. The truck must pull out for the leveler to return to its stored position.
What's included
Leveler, 2" x 8" x 18" bumpers, and installation instructions.
Follow the manual for setup and use.
Questions
Do I need to cut a pit in my dock?
No. A concrete recess is not required. The unit mounts to the dock face.
How high should my dock be?
At least 48 inches is recommended.
How is it attached?
It is welded across the top and down both sides of the mounting plate, and bolted through the anchor holes. A steel dock edge, approach ramp, or approach plate is needed.
