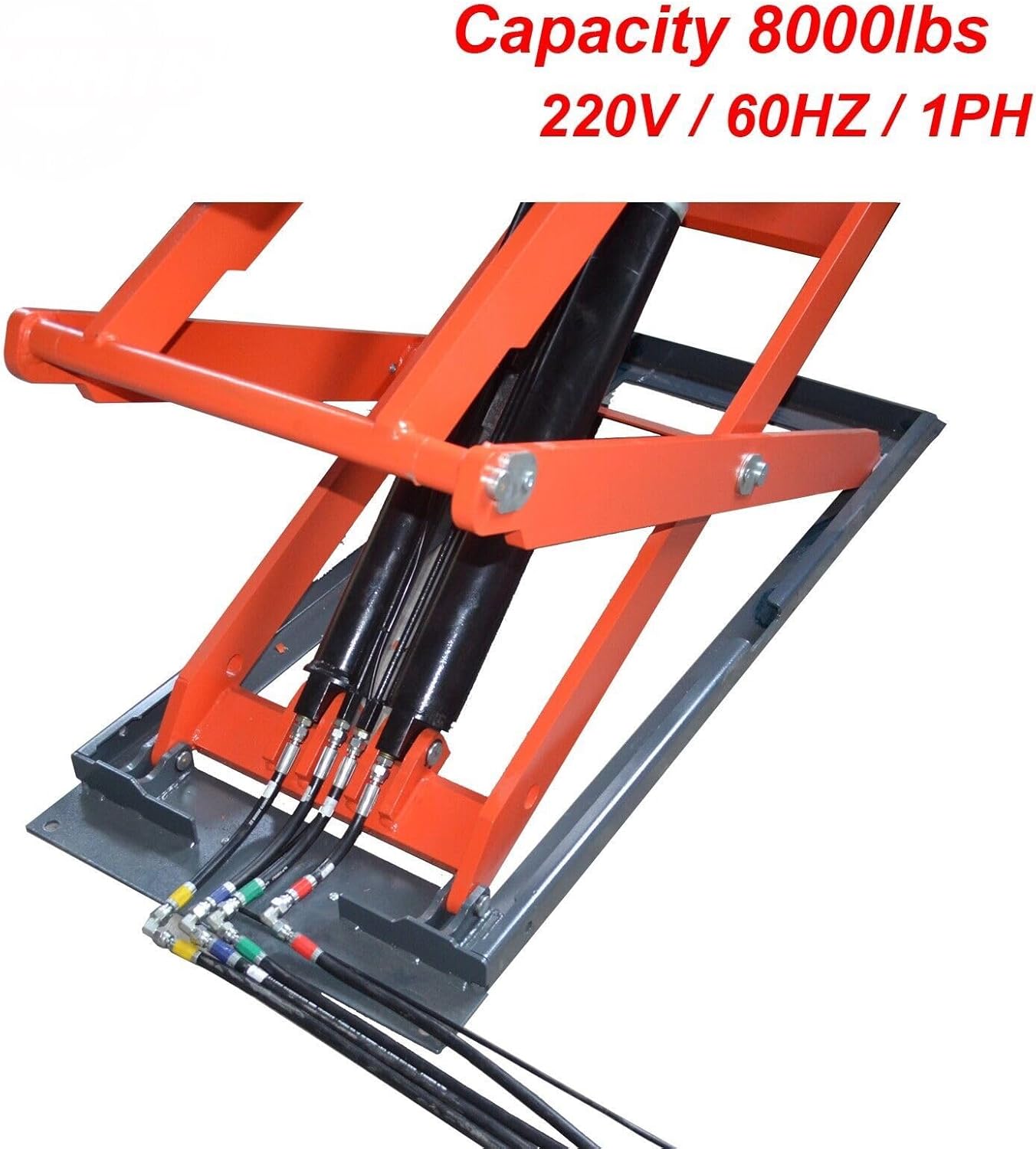

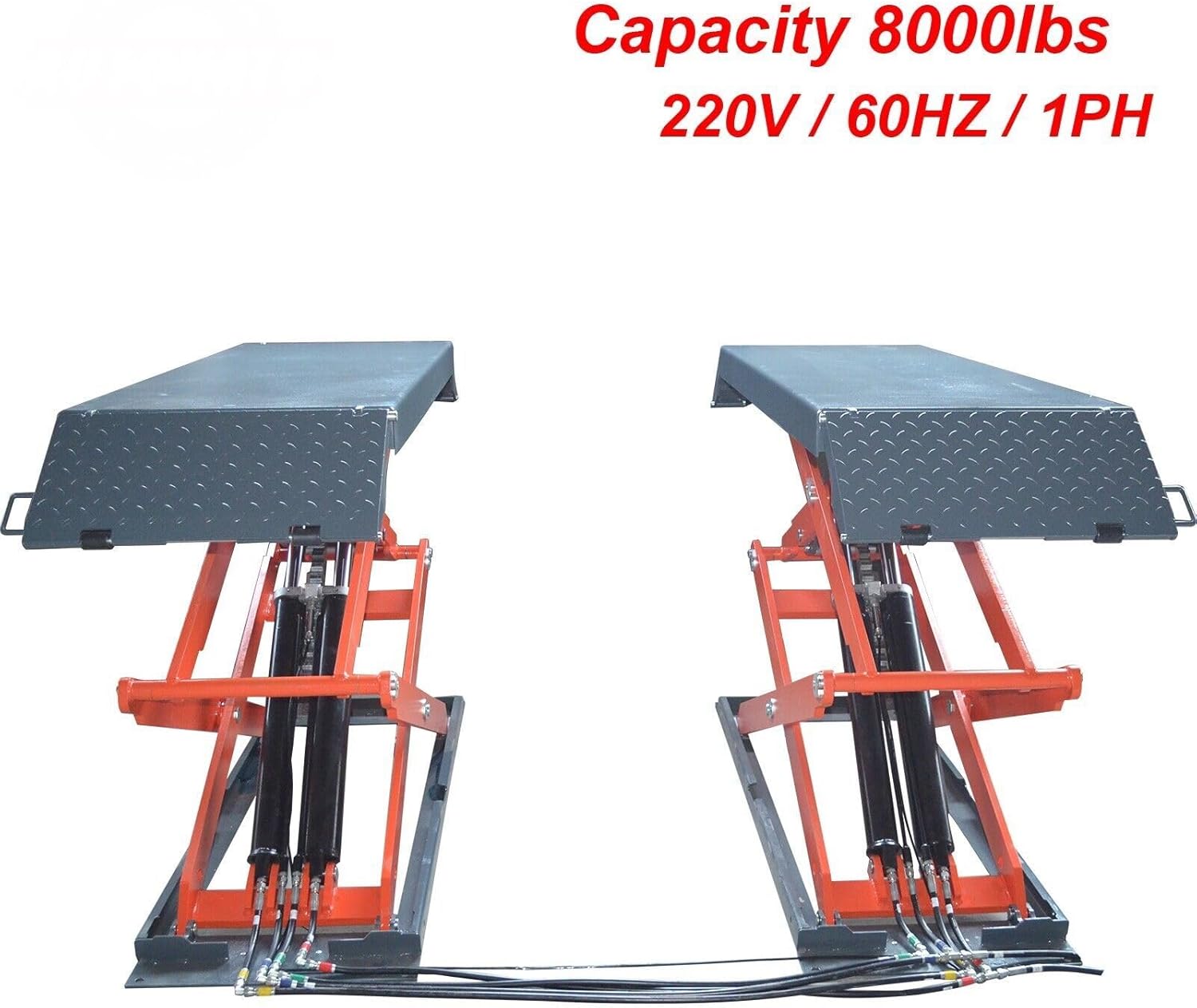

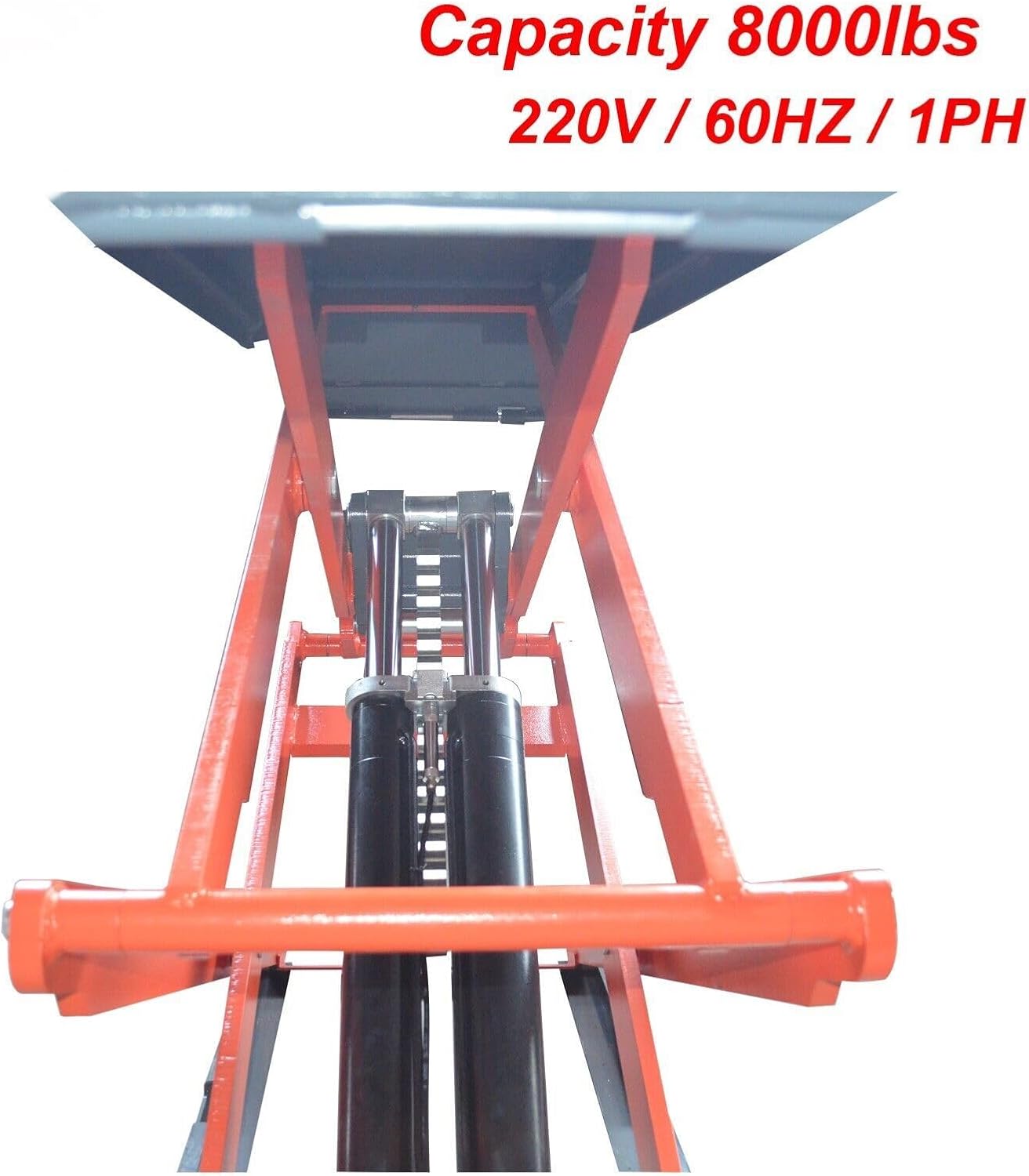

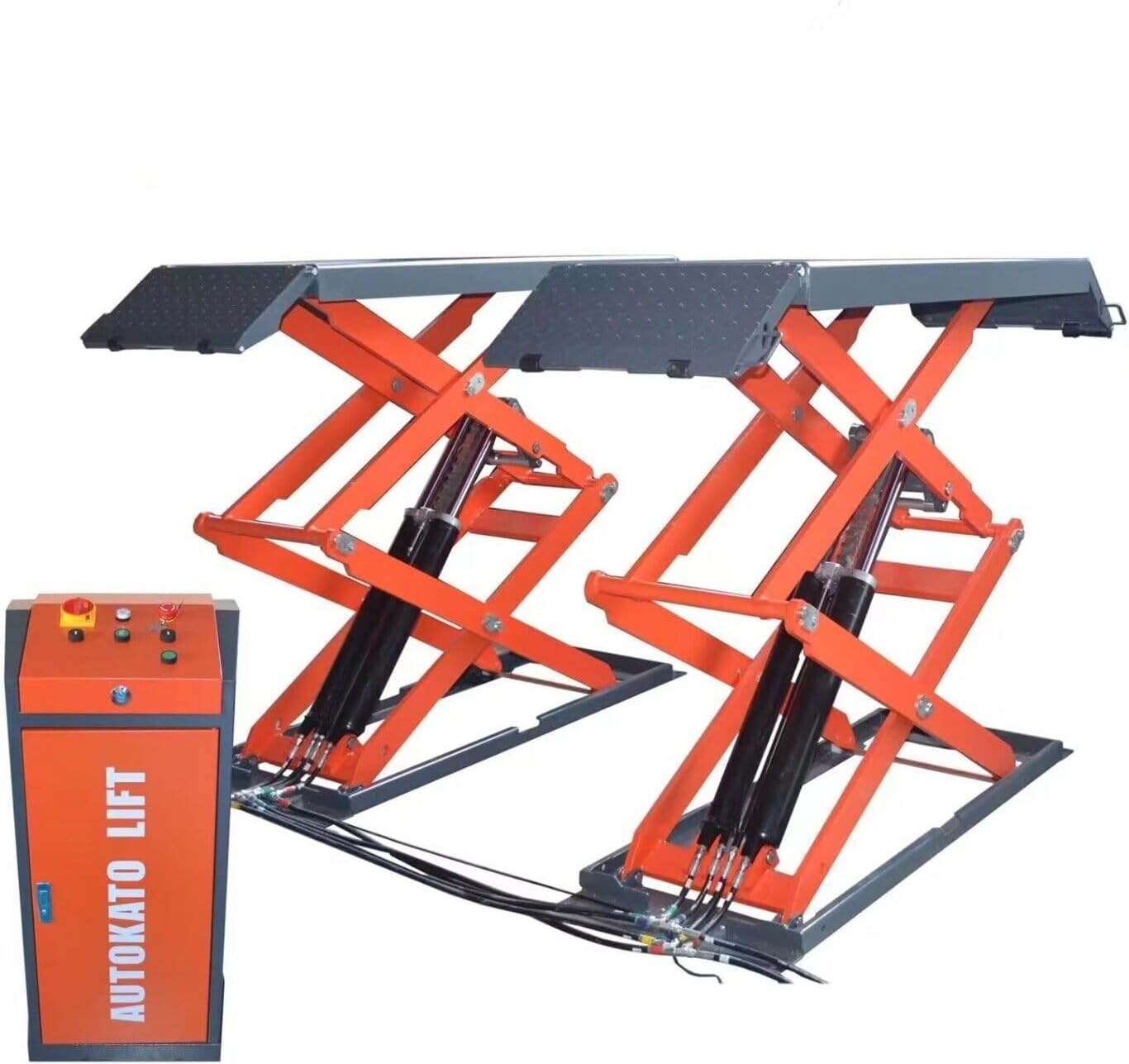

KT-X95 Full Rise Scissor Lift Mid Rise Lift Auto Car Lift Electric Lock Release 220V
This model should be securely anchored to concrete before operation. Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation. CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested. Flush mount design. Starting-up system design. Pneumatic safety release. 24V safe control system. Height limit switch. Composite rubber lifting blocks included. Comes with self-lubricated bushing and bearing. Drive-up ramps lock design as platform extension for long vehicles. Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working. The unit needs to be connected to a compressed air source.

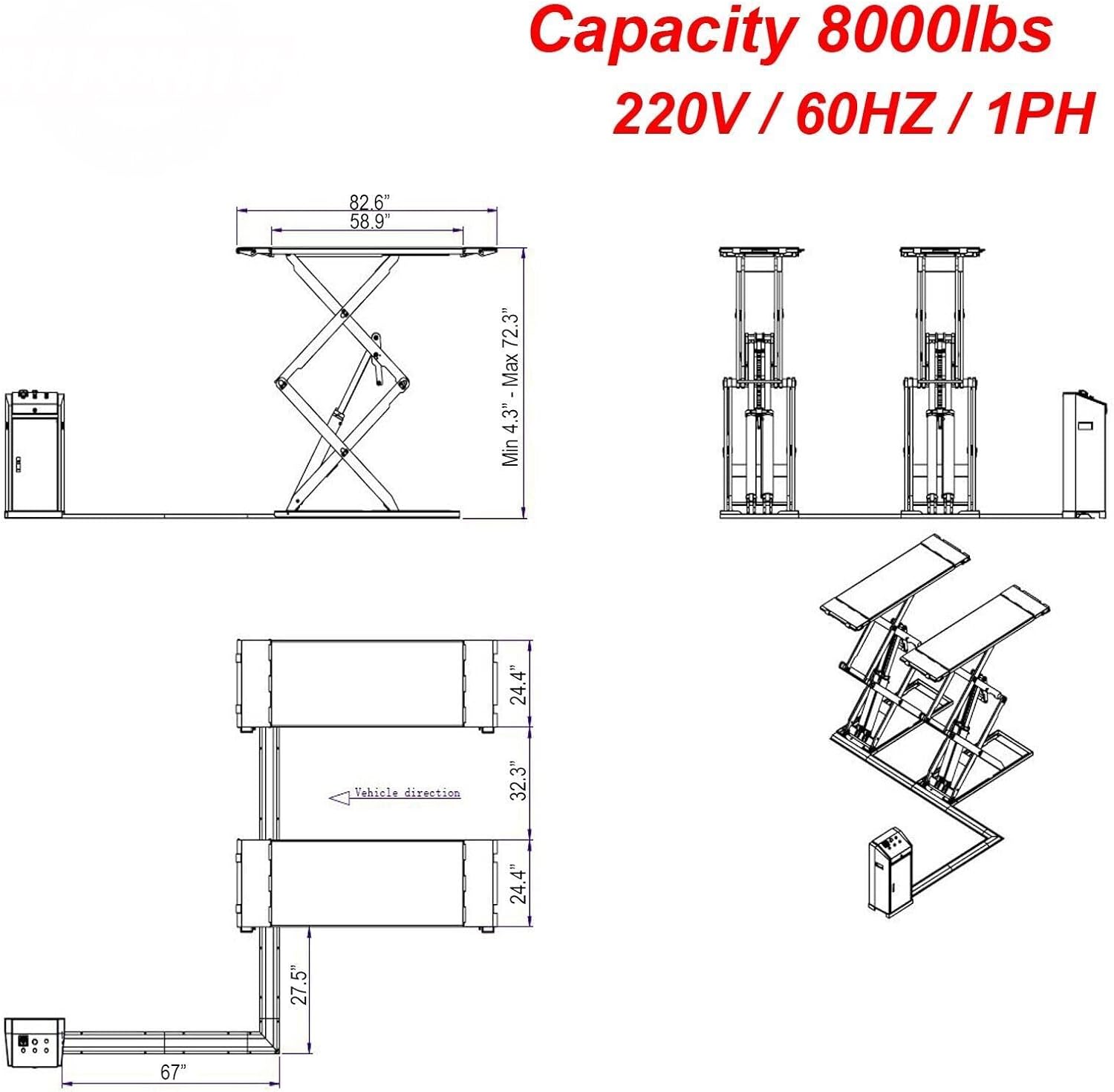

Specifications:
- Max. lifting capacity: 8000 lbs
- Lifting height: 72.3 inch
- Lifting time: ≤50S
- Platform length: 58.9 inch
- Platform width: 24.4 inch
- Motor power: 2.2kw
- Rated oil pressure: 20MPa
- Air pressure: 6-8kgf/c㎡
Experience the next level of heavy-duty tire changing with the KT-X95. Order now for unmatched power, precision, and safety in your tire-changing operations!
| Weight (w/o wheels) | 20 LBS |
|---|---|
| Weight Capacity | 60 LBS |
| Folded (w/o wheels) | 32.5"L x 18.5"W x 16.5"H |
| Folded (w/ wheels) | 32.5"L x 24"W x 18.5"H |
| Door Pass Through | 24 |
| Frame | Aluminum |
| Stand Up | 35"L x 24"W x 37-45"H(front to back wheel) |
| Size | S, XL, XS |
| Color | Gray 2, Green 2, Orange 1, Orange 2, Violet |
Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item, only in the case of:
- Received the wrong item.
- Item arrived not as expected (ie. damaged packaging).
- Item had defects.
- Over delivery time.
- The shipper does not allow the goods to be inspected before payment.
The returned product(s) must be in the original packaging, safety wrapped, undamaged and unworn. This means that the item(s) must be safely packed in a carton box for protection during transport, possibly the same carton used to ship to you as a customer.
