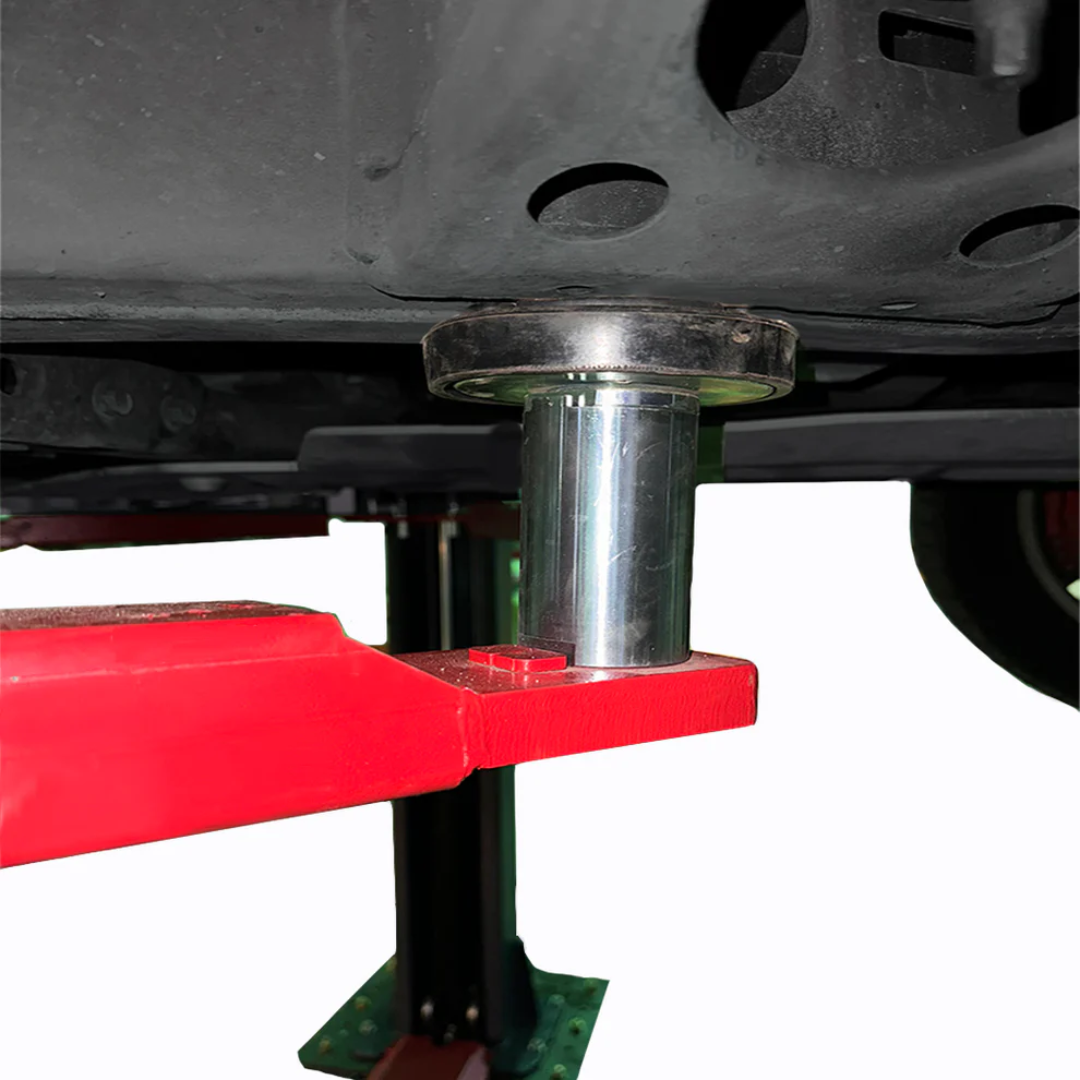

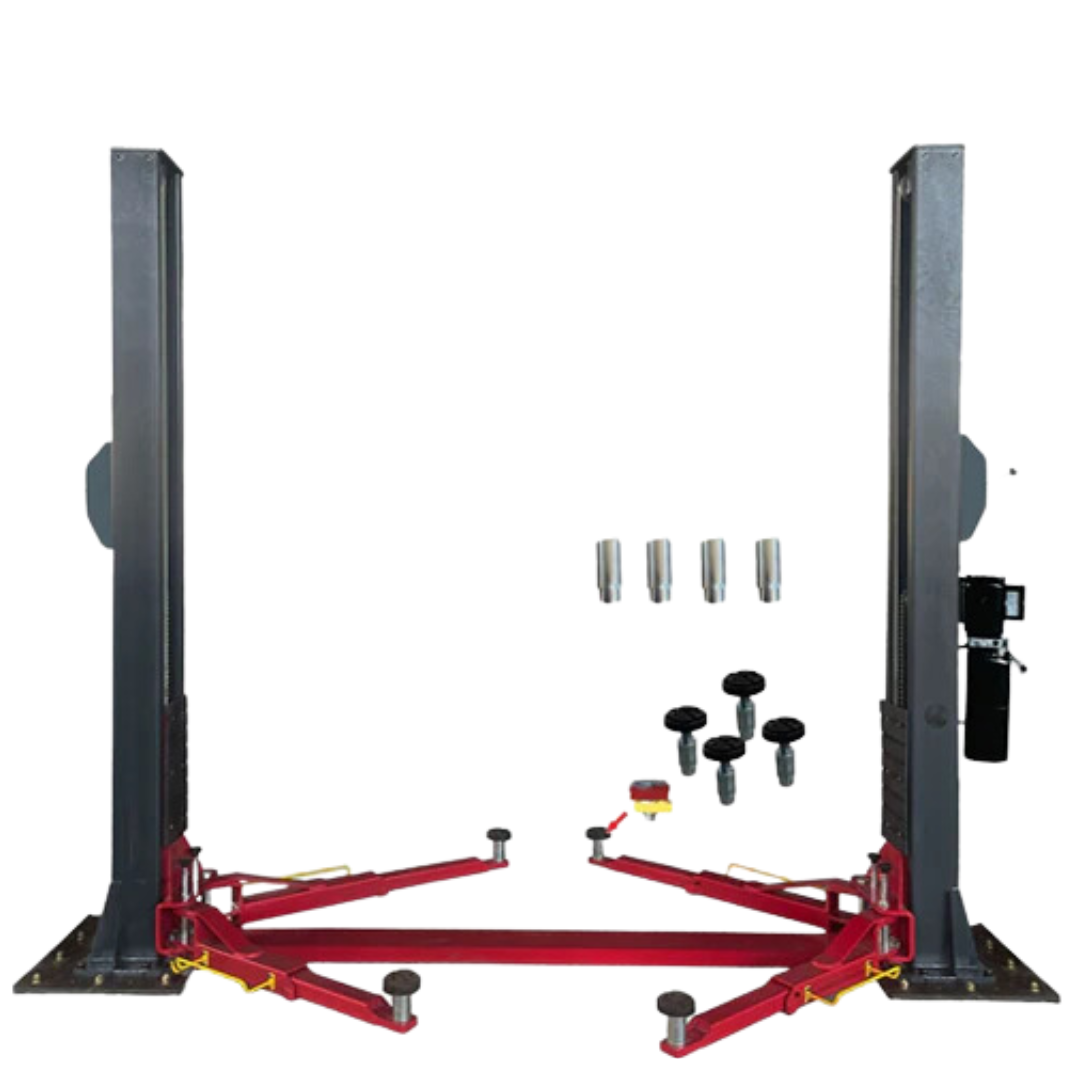

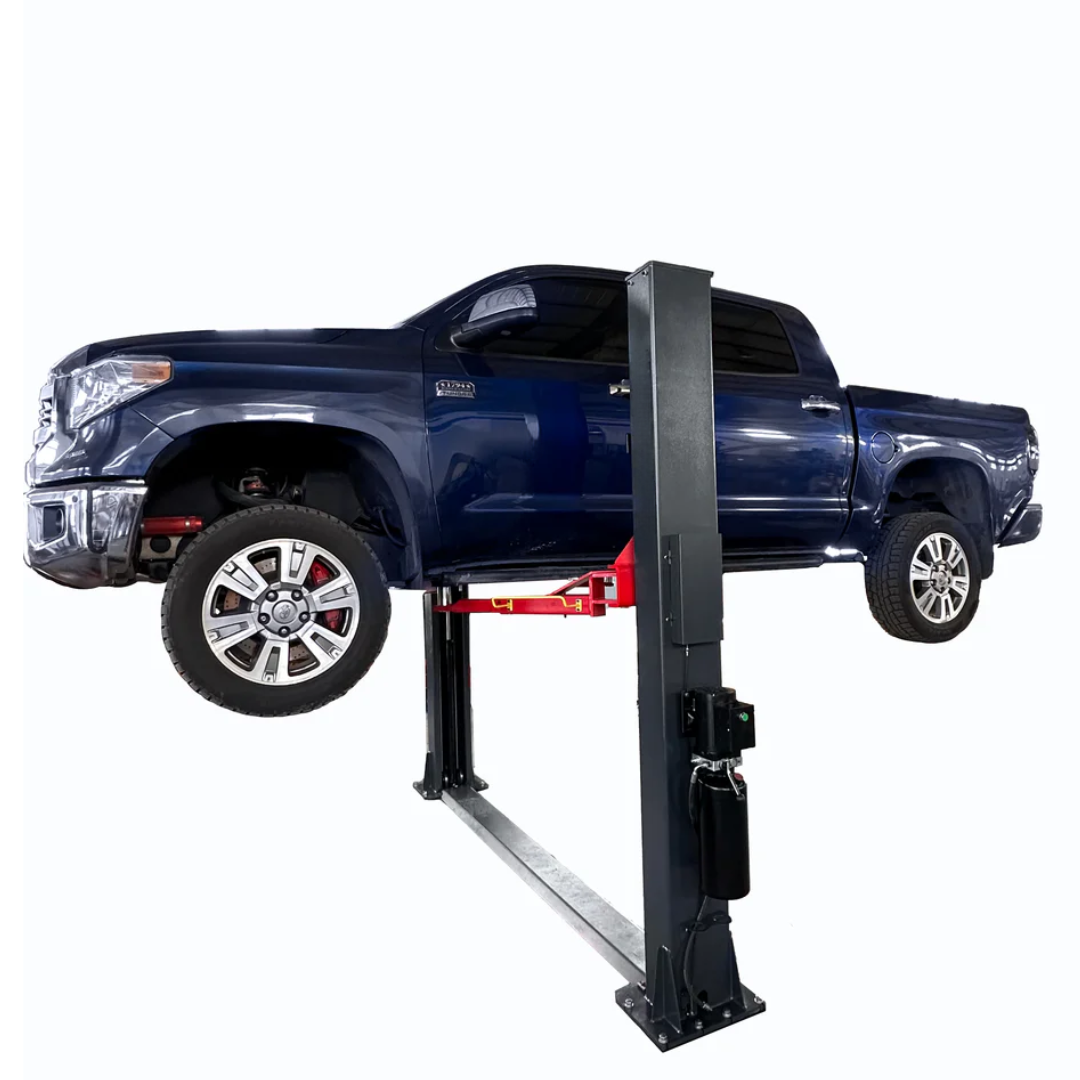

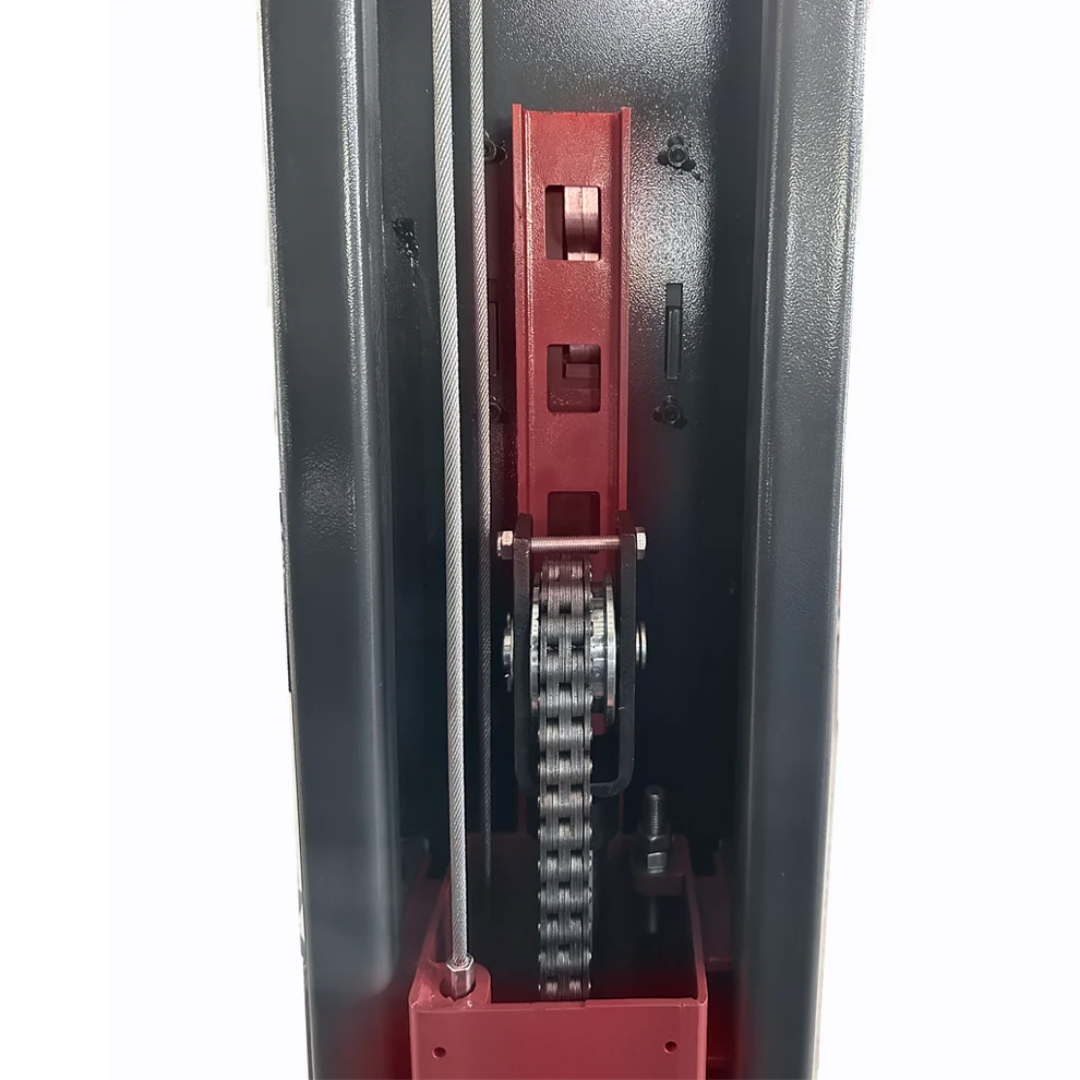

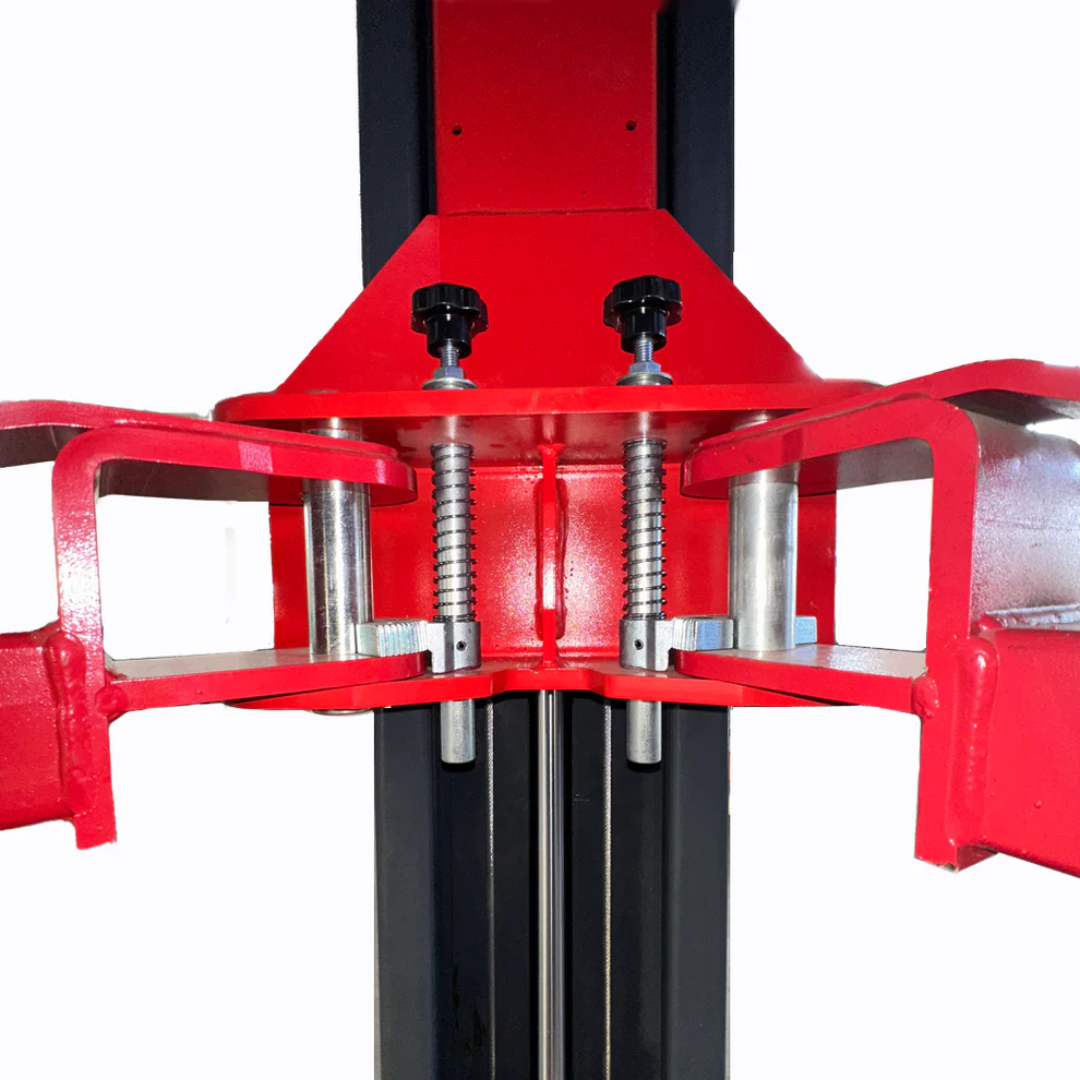

The Katool KT-H120D is a 12,000 lb floor plate 2-post lift built for trucks, SUVs and cars. Dual hydraulic chain-drive cylinders do the lifting. A single-point lock release and symmetric arms keep the workflow simple. Extended adapters reach taller vehicles, and rubber door guards protect paint.
Specifications
- Lifting capacity: 12,000 lbs / 5,500 kg
- Max lifting height: 74.8 in / 1,900 mm
- Min pad height: 4.25 in / 110 mm
- Overall height: 110.94 in / 2,818 mm
- Overall width: 140 in / 3,555 mm
- Outside of columns: 124.8 in / 3,170 mm
- Inside of columns: 110.25 in / 2,800 mm
- Drive-thru clearance: 98.43 in / 2,500 mm
- Front arm reach: 28.74 to 43.11 in, 2-stage
- Rear arm reach: 34.25 to 54.13 in, 2-stage

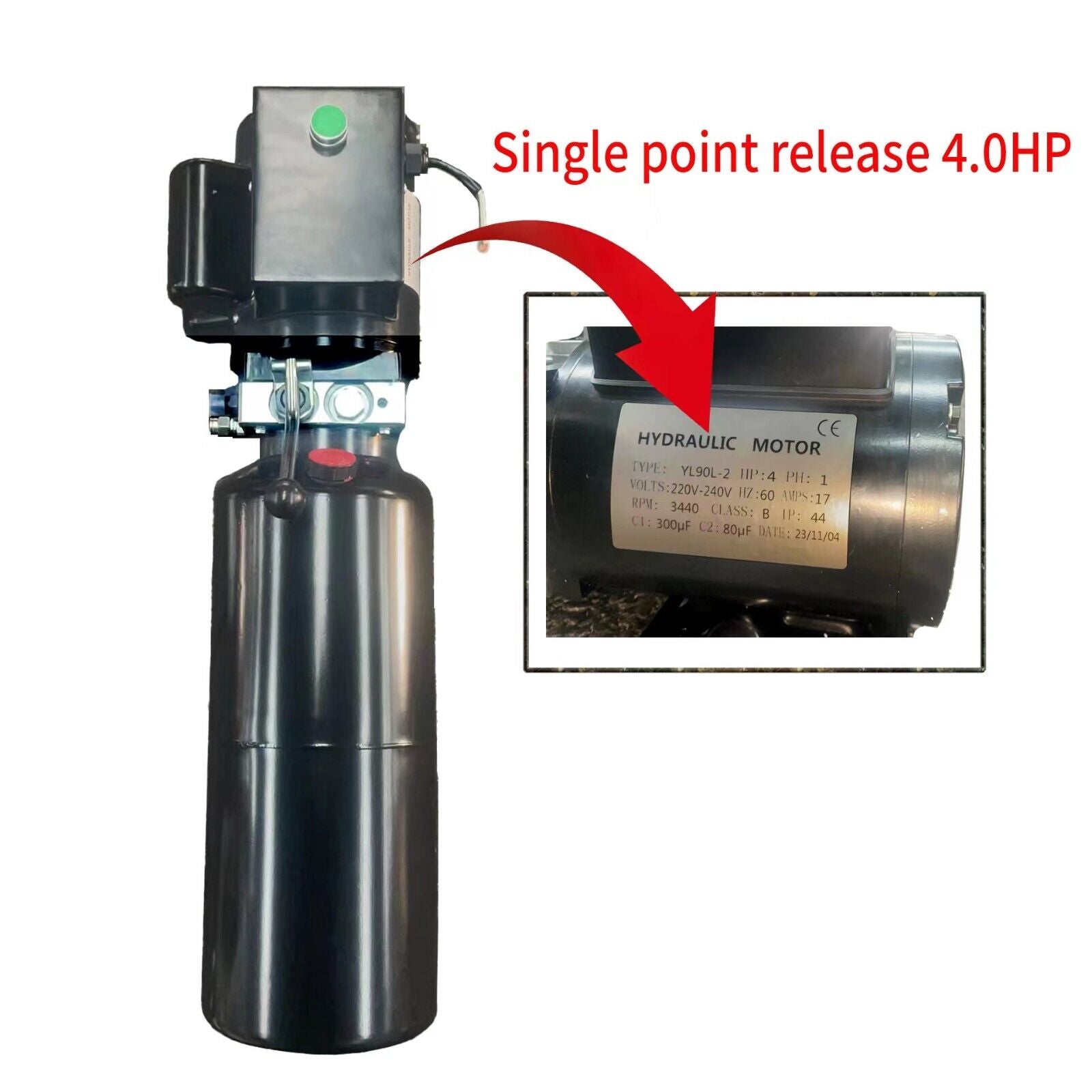

- Motor: 220V AC, 60 Hz, single phase, 2.2 kW
- Net weight: 630 kg / 1,389 lbs
Before you order
- Check your ceiling height against the 110.94 in overall height.
- Needs a 220V single-phase circuit.
- Ships by freight to the lower 48.
Tire changers and balancers ship free curbside to the lower 48. Residential liftgate delivery is available at checkout. Car lifts ship freight with delivery included in the price. Tracking is emailed once your order ships.
Inspect your delivery before signing. Note any damage on the delivery receipt.
Full details: Shipping Policy and Refund Policy.
Customer Reviews
Value for the money. Product was good quality.
This lift has proven to be highly effective, it has a dual safety feature that takes two-handed operation. The 10,000 lb lift has functioned remarkably well thus far. The shipping process was efficient, with delivery transpiring prior to the anticipated date.
After taking my time to install the lift as carefully as I could, including pouring large 10" thick pads in my existing concrete floor, epoxying the bolts in place, and installing the lift itself, I'm very pleased with the results. Delivery was done in a timely manner and communication from the delivery company was great. They kept me updated on a regular basis and did everything possible to make the unloading process go smoothly. I'm not an expert, but I'm very impressed with the quality, price, and delivery of the unit. Installation takes patience and time, but anyone installing one of these should already be aware of that.

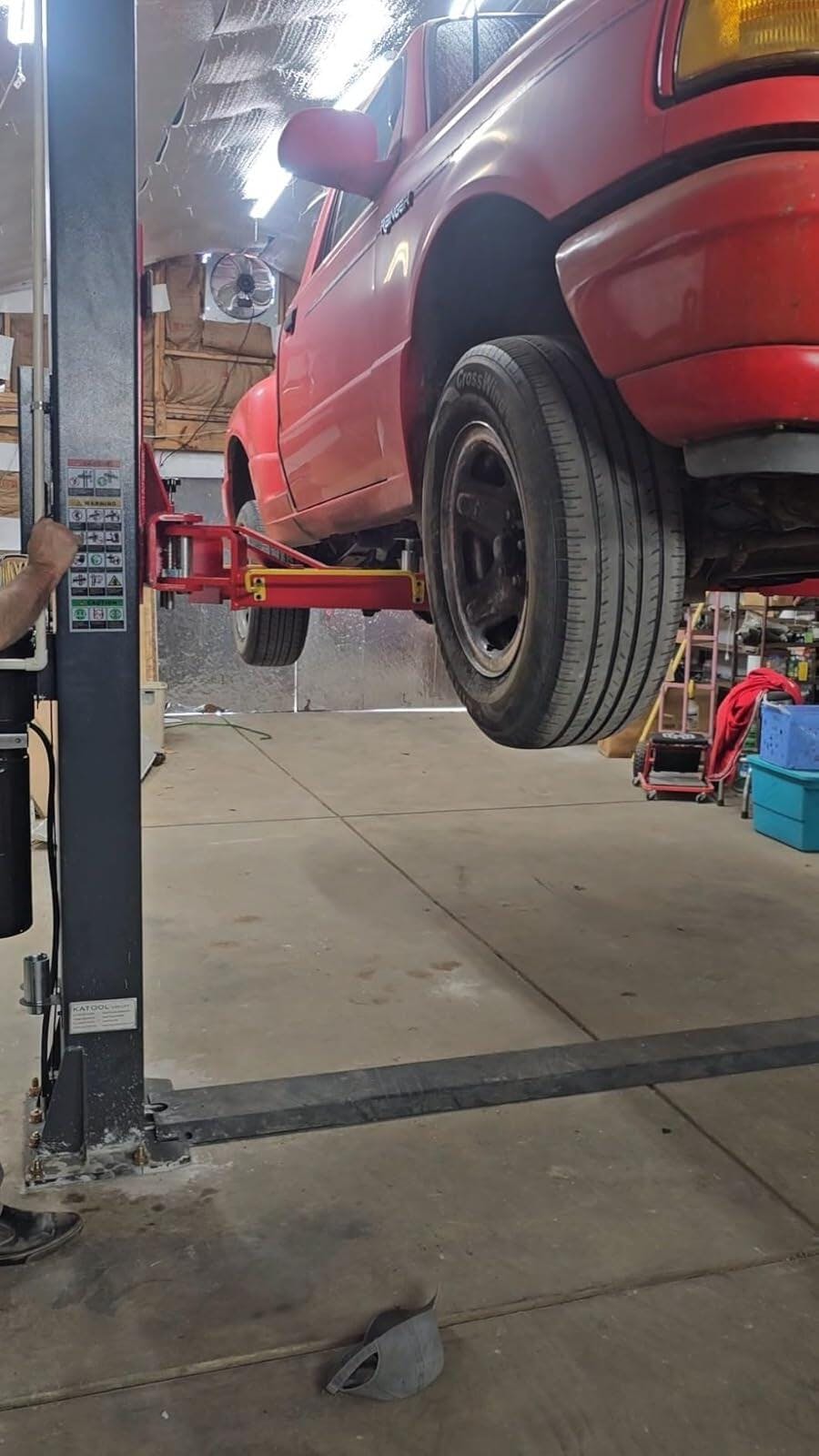

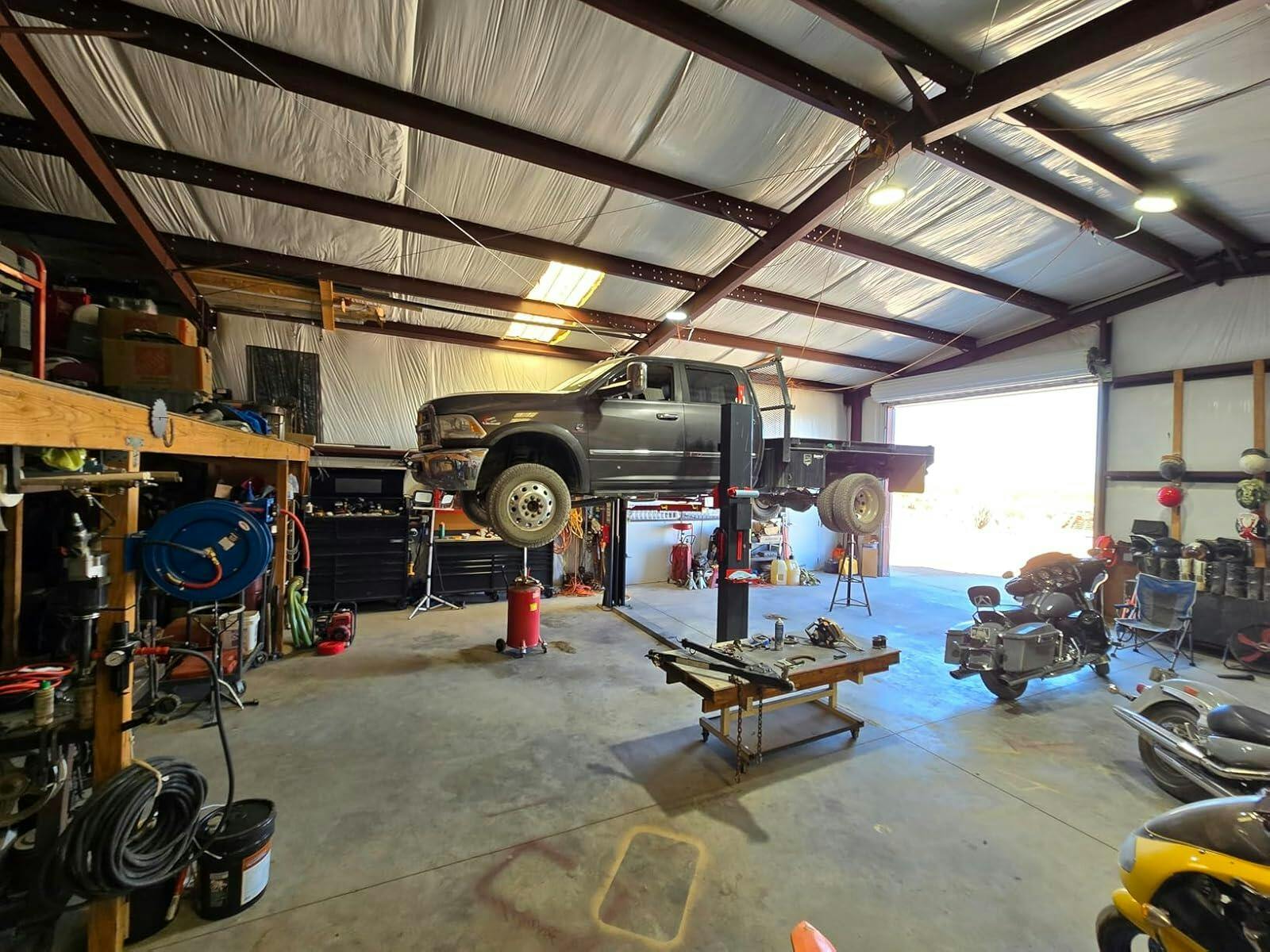

The photo is my 10,000lb truck, it's high enough for me to walk under and not have to duck and I'm 5' 10". I chose this model because it was the widest between the posts and raised the highest. I also like the open top so I can lift full size vehicles.
