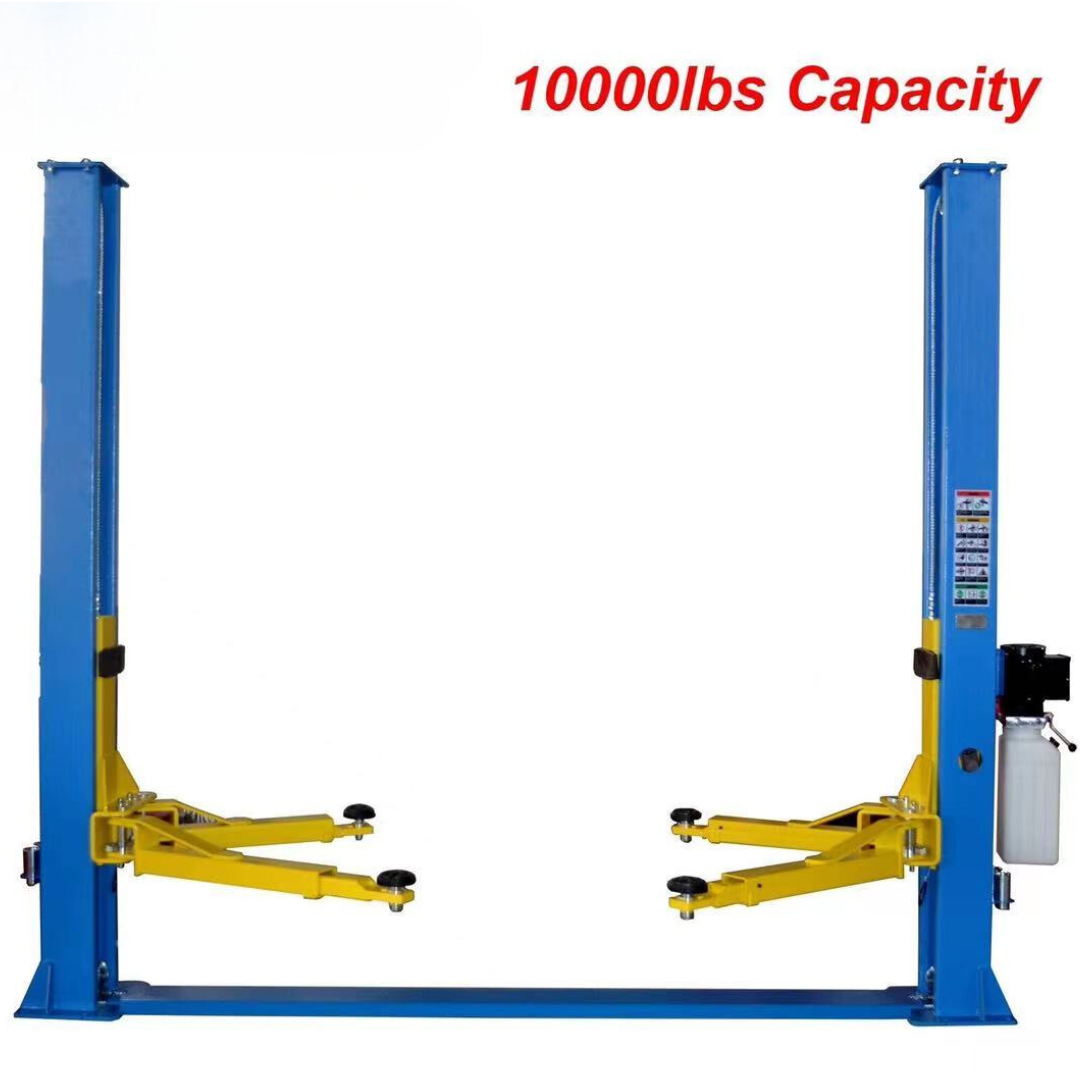

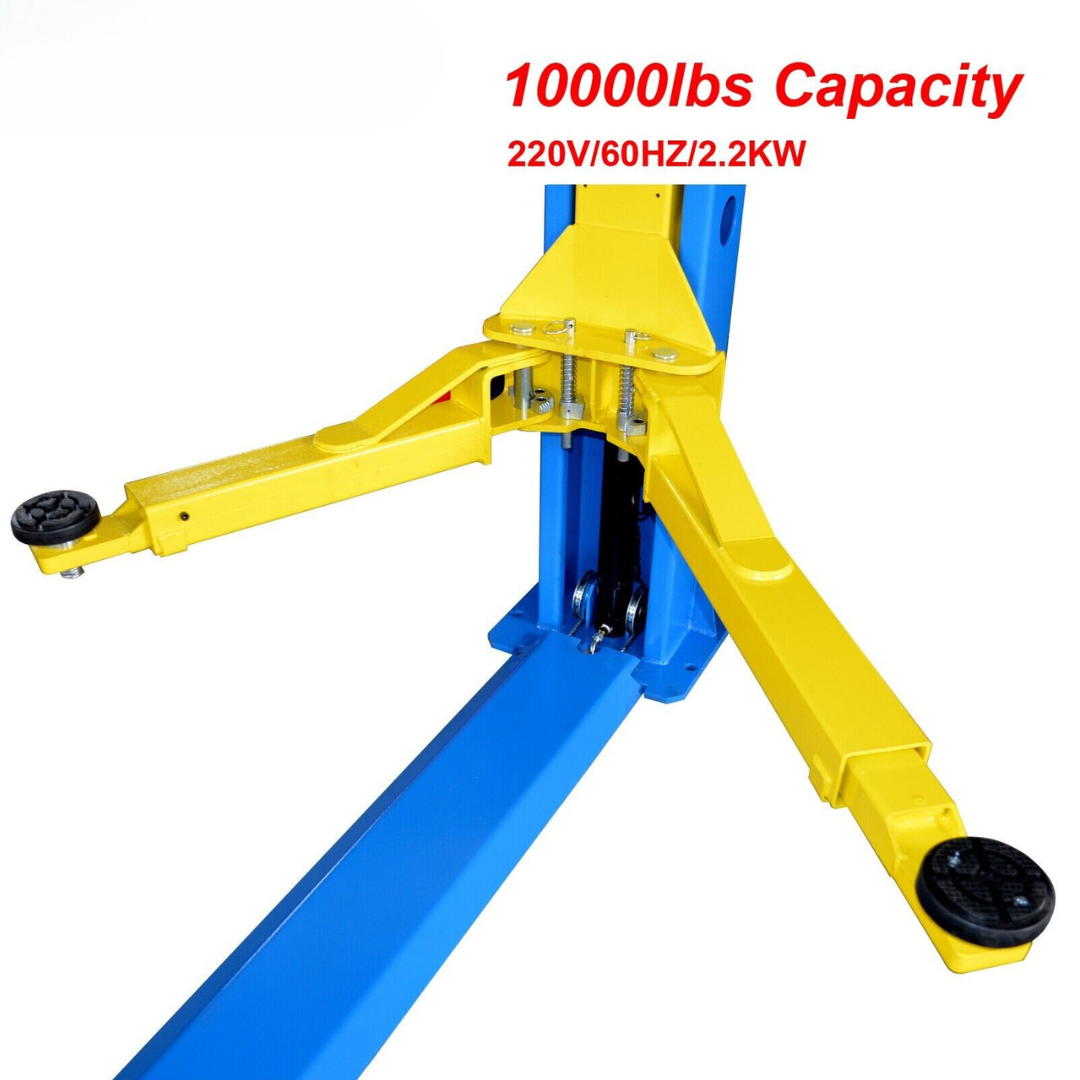

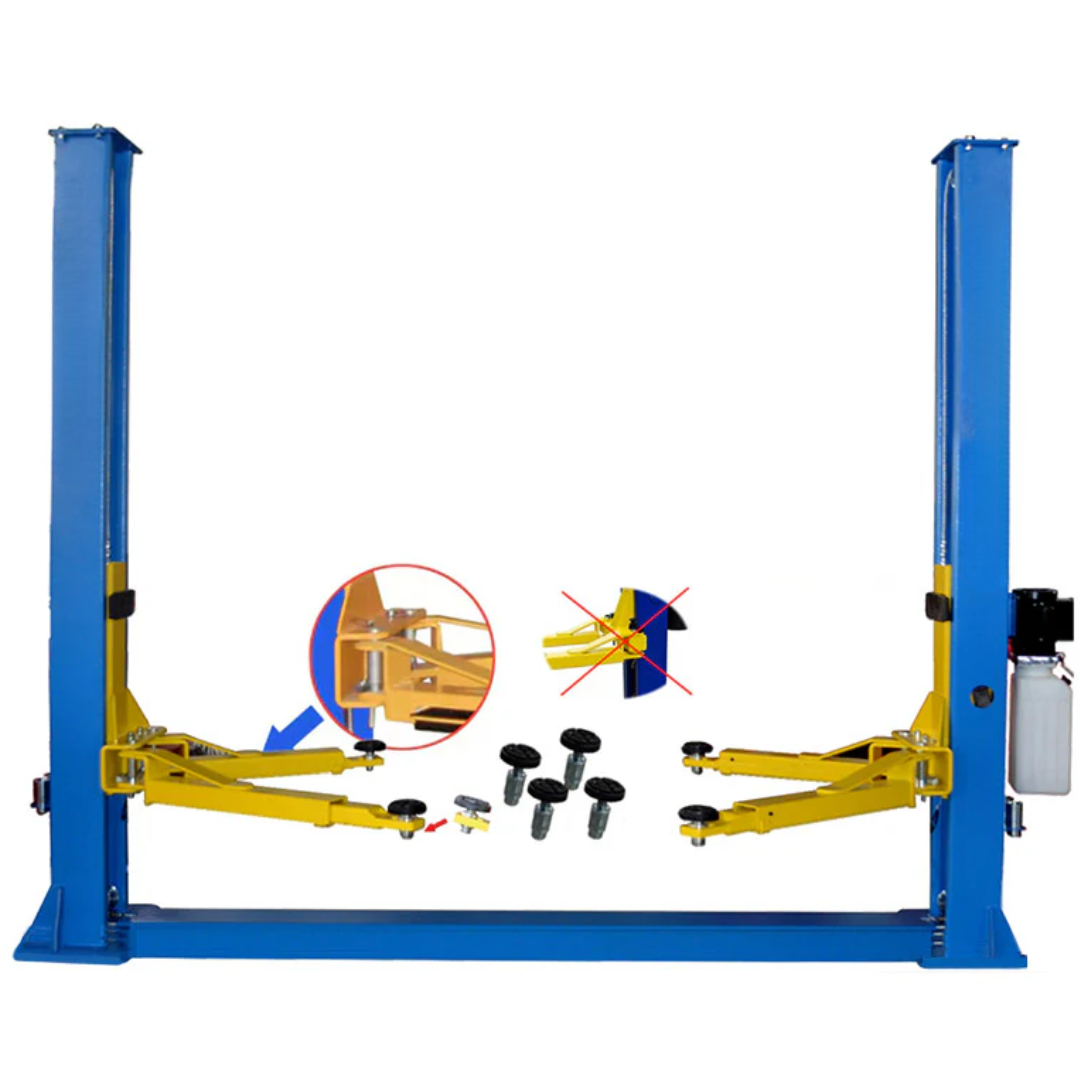

The Katool KT-H105 is a 10,000 lb floor plate 2-post lift for home garages and working shops. Symmetric arms center the load. Dual-side lock release keeps both columns in sync. Use it for tire rotations, brakes, oil changes and suspension work.

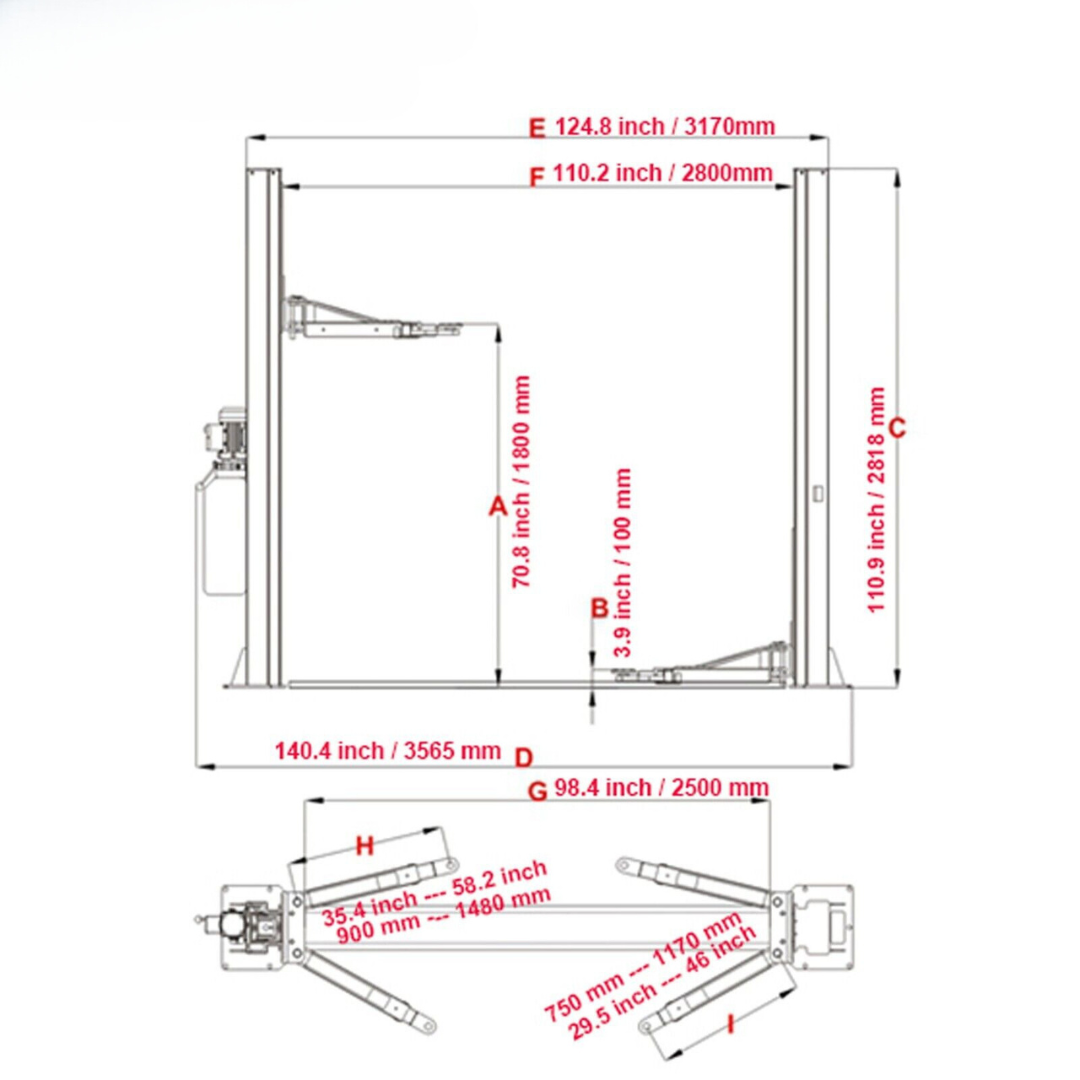

Specifications
- Lifting capacity: 10,000 lbs / 4,500 kg
- Max lifting height: 70.8 in / 1,800 mm
- Min pad height: 3.9 in / 100 mm
- Overall height: 110.9 in / 2,818 mm
- Overall width: 140.4 in / 3,565 mm
- Outside of columns: 124.8 in / 3,170 mm
- Inside of columns: 110.2 in / 2,800 mm
- Drive-thru clearance: 98.4 in / 2,500 mm
- Front arm reach: 29.5 to 46 in, 2-stage
- Rear arm reach: 35.4 to 58.2 in, 2-stage
- Motor: 220V AC, 60 Hz, single phase, 2.2 kW
- Net weight: 570 kg / 1,256 lbs
Before you order
- Check your ceiling height against the 110.9 in overall height.
- Needs a 220V single-phase circuit.
- Ships by freight to the lower 48.
Tire changers and balancers ship free curbside to the lower 48. Residential liftgate delivery is available at checkout. Car lifts ship freight with delivery included in the price. Tracking is emailed once your order ships.
Inspect your delivery before signing. Note any damage on the delivery receipt.
Full details: Shipping Policy and Refund Policy.
Customer Reviews

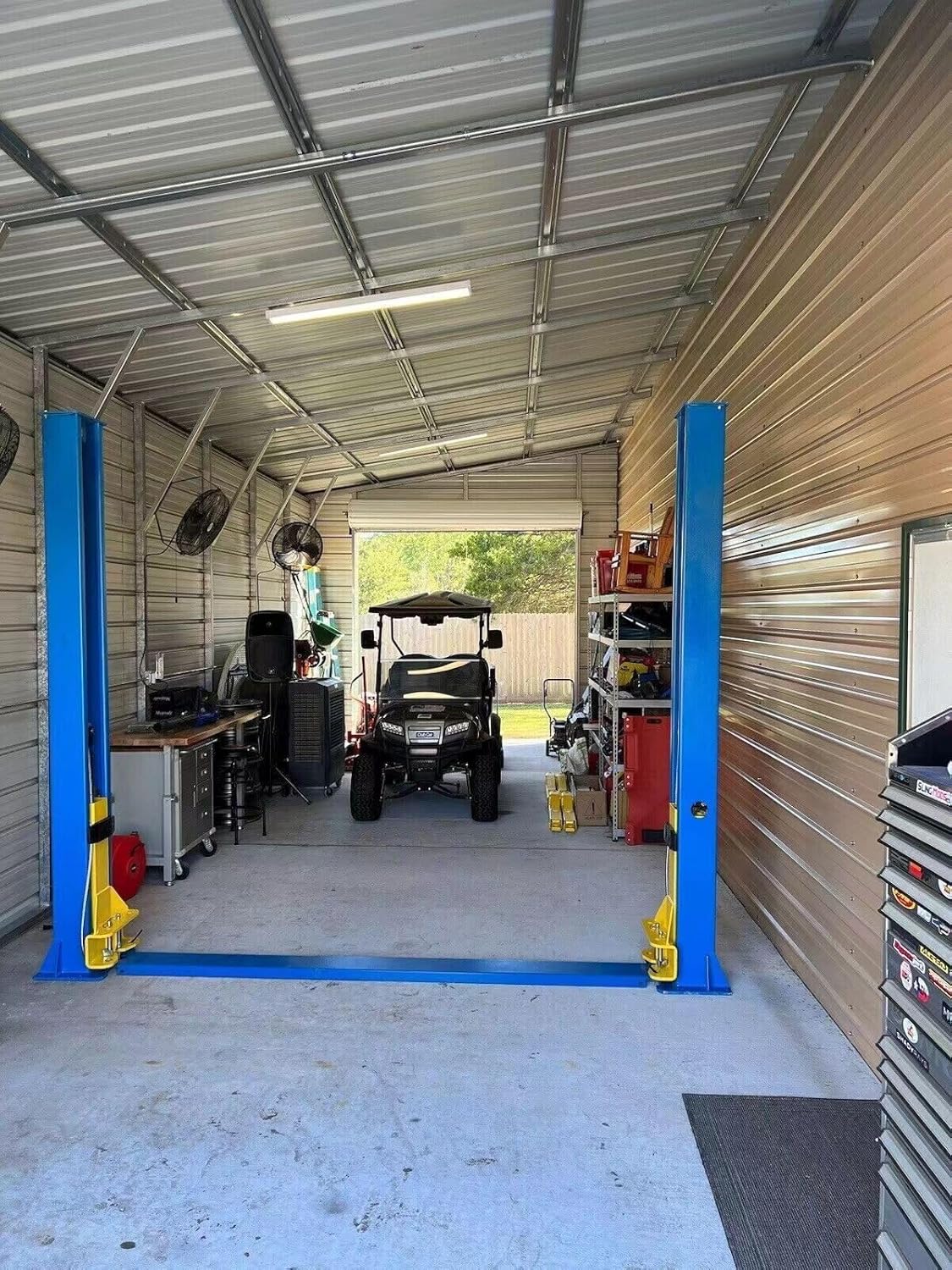

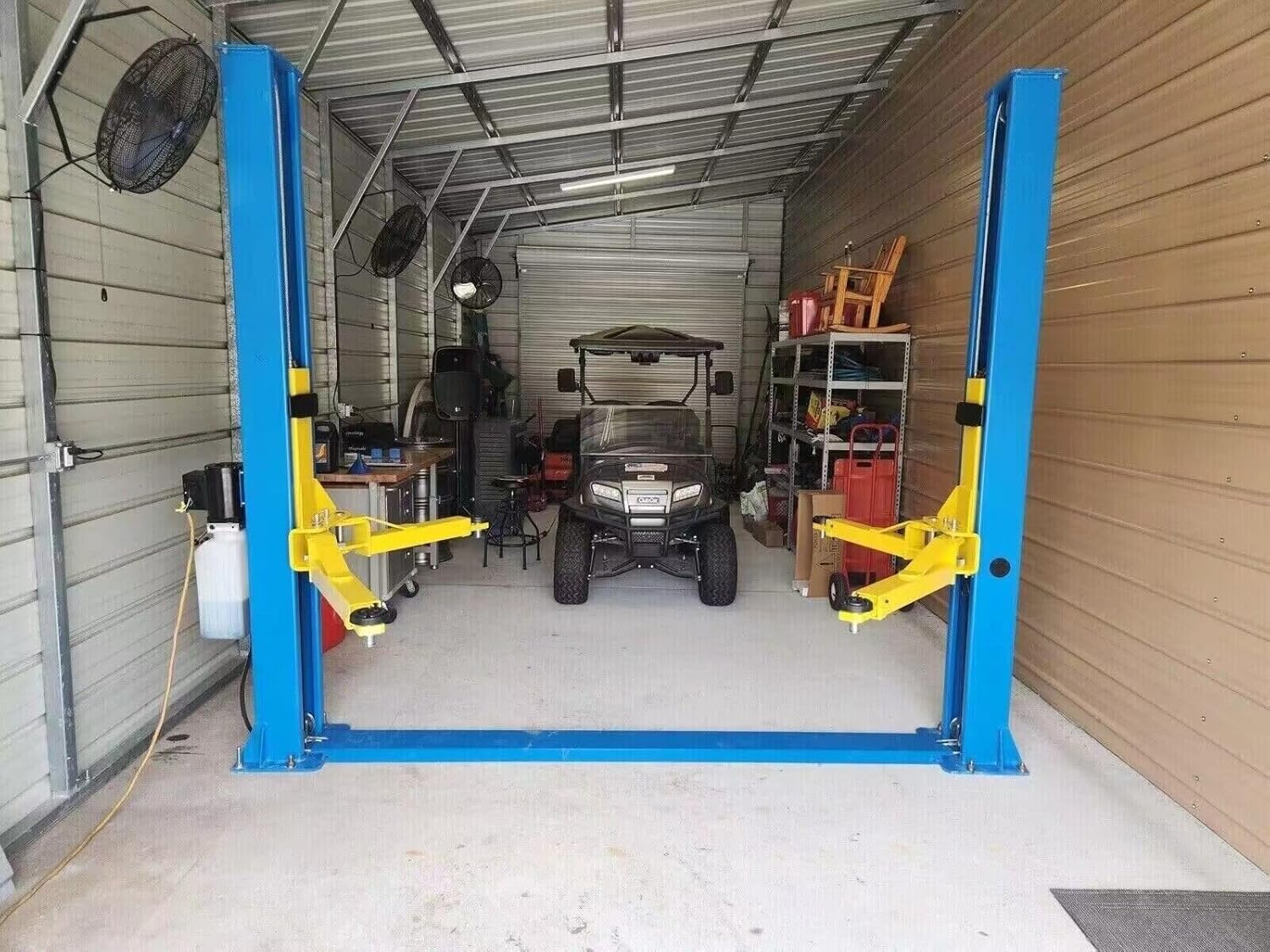

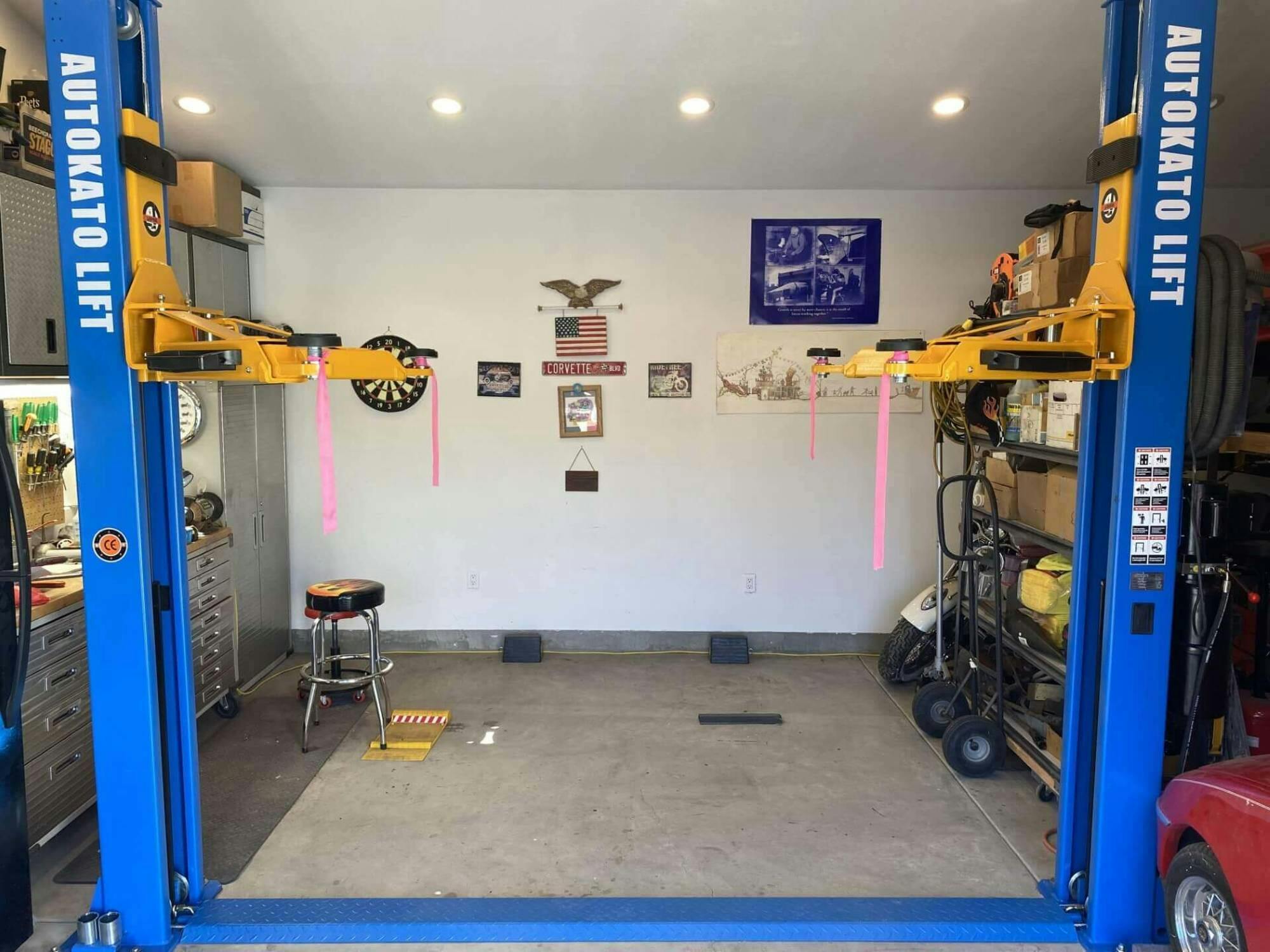

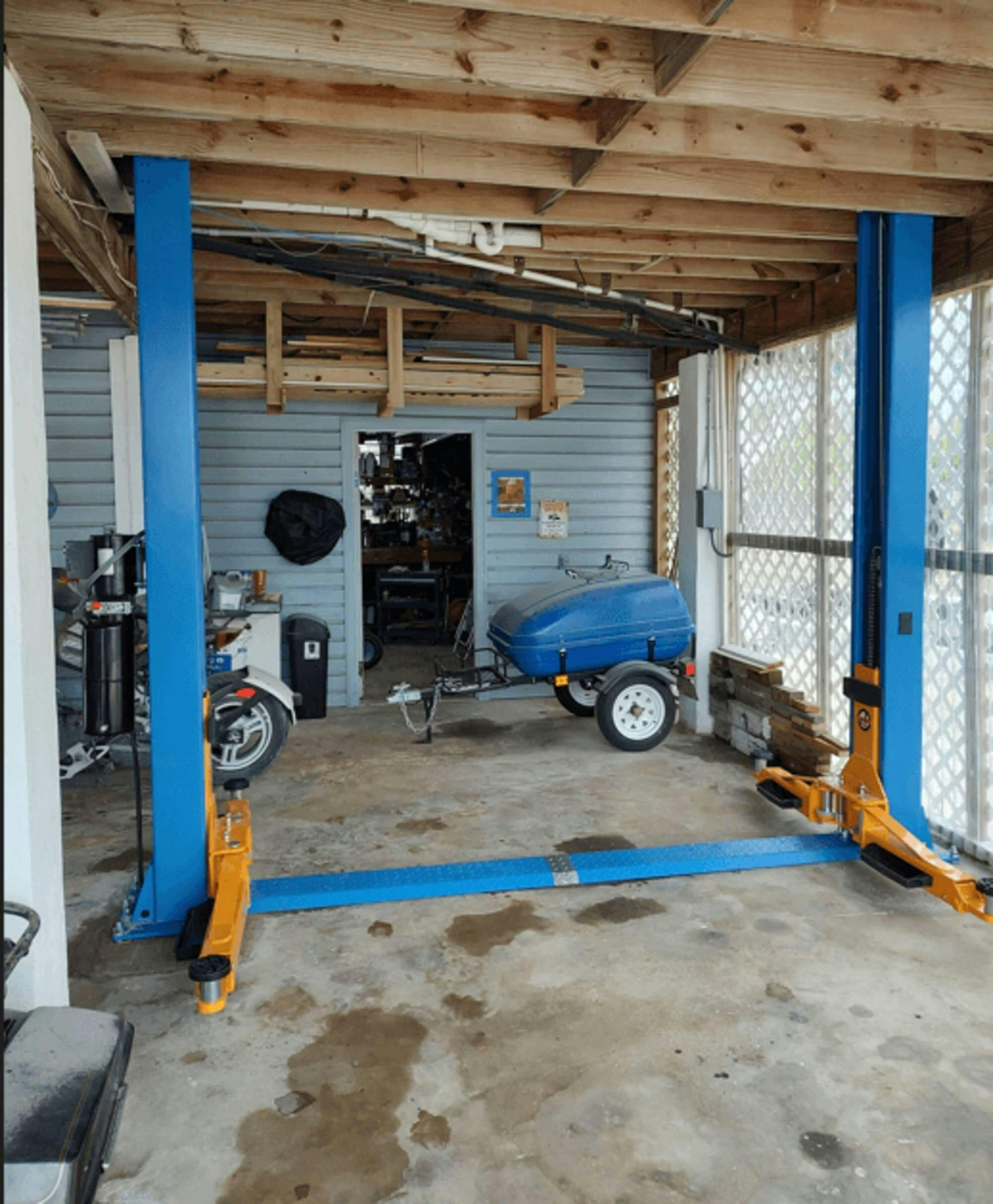

This lift is being used to store a hot rod on top and one under it. The top car is strapped to the arms and very secure. The other fit just perfectly underneath. The overall height was restricted, so I had to reposition the cutout switch and it stops perfectly with no load. They were very responsive to my order, FAST shipping.
The customer service was notably responsive and helpful. Unloading process was a breeze. Lift is partially set and appears to be in great condition. Packaging was done very well.
I HIGHLY recommend for any of your needs with all types of shop equipment. Thank you, stay safe and enjoy!
