Description

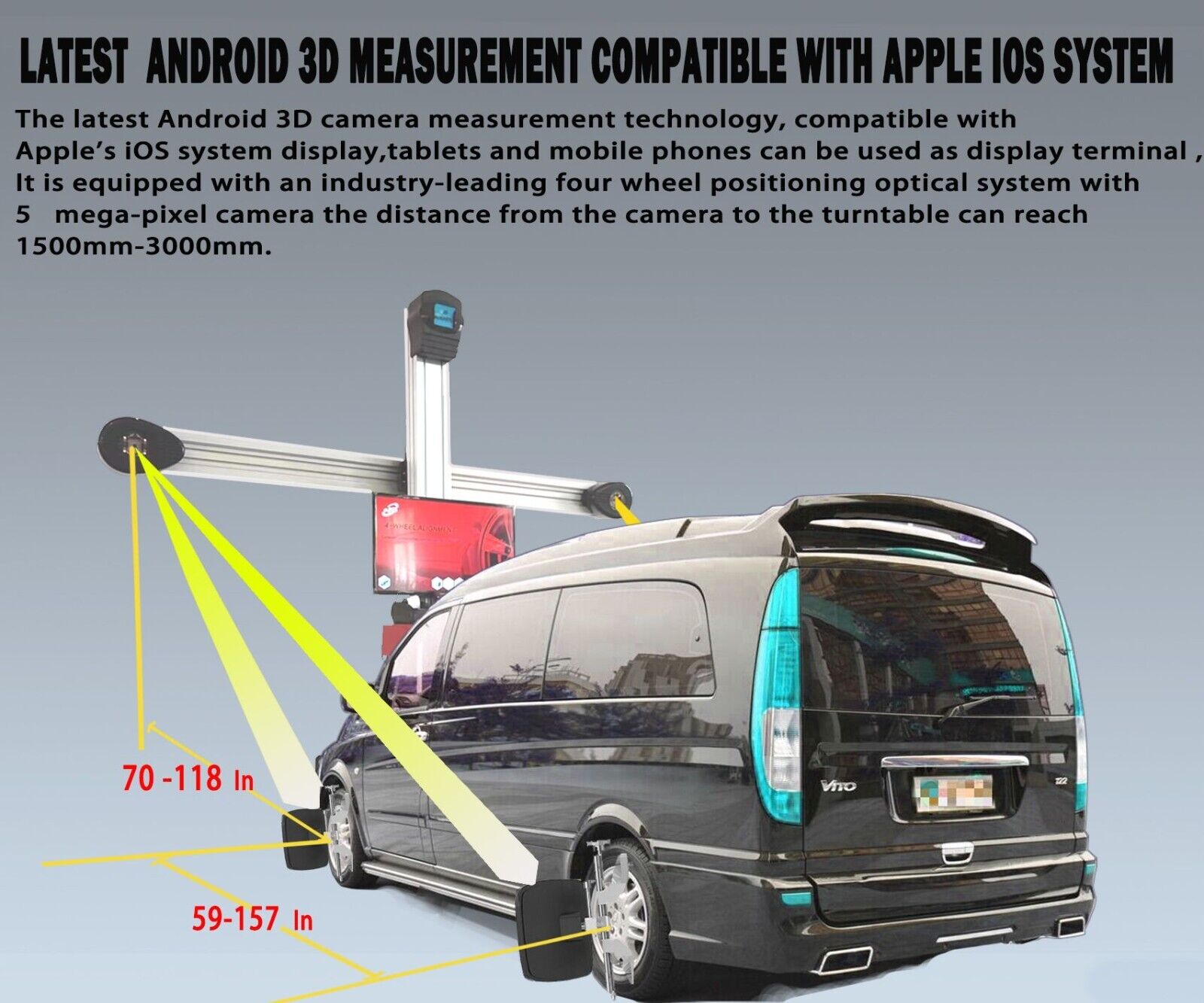

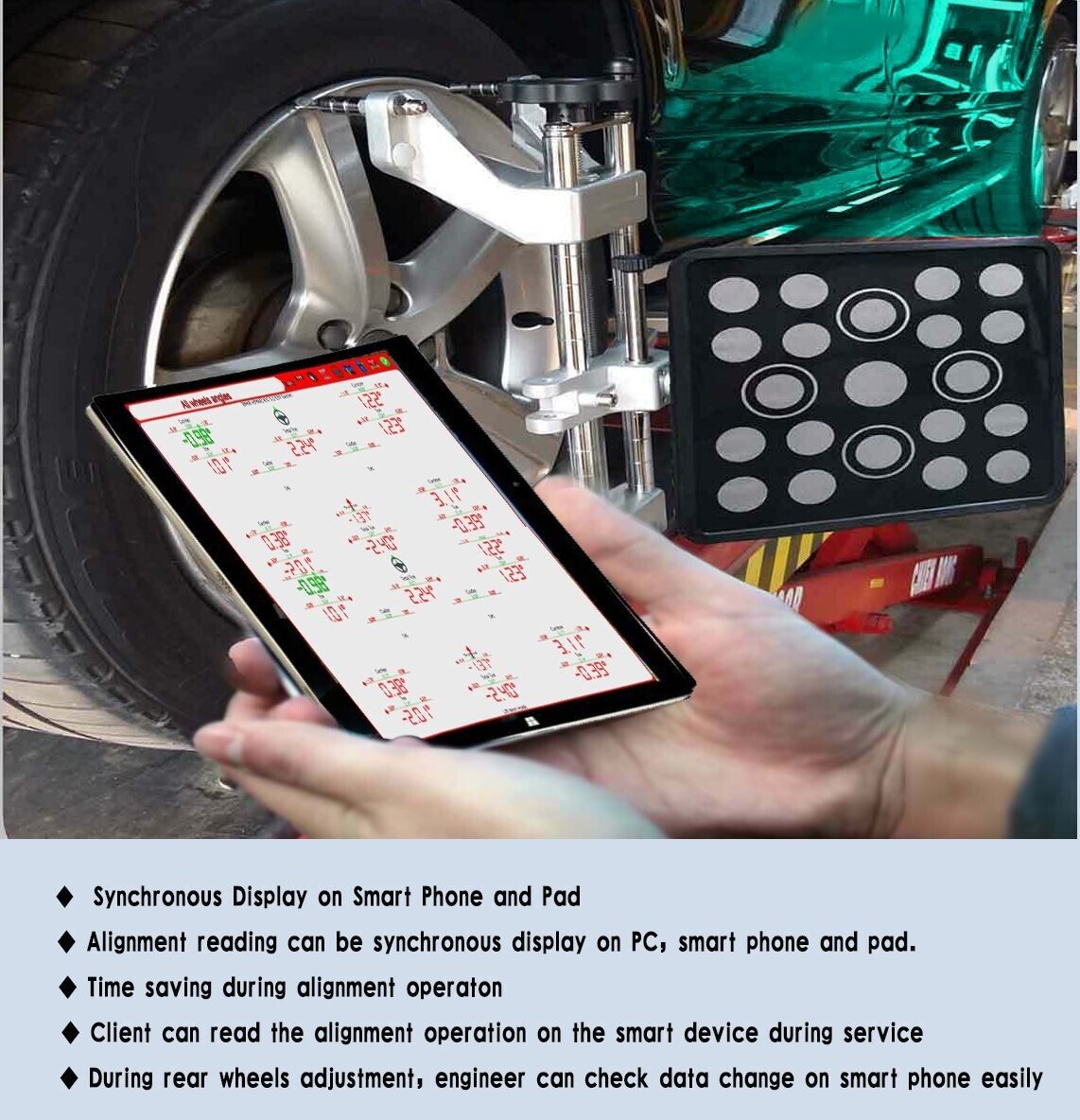

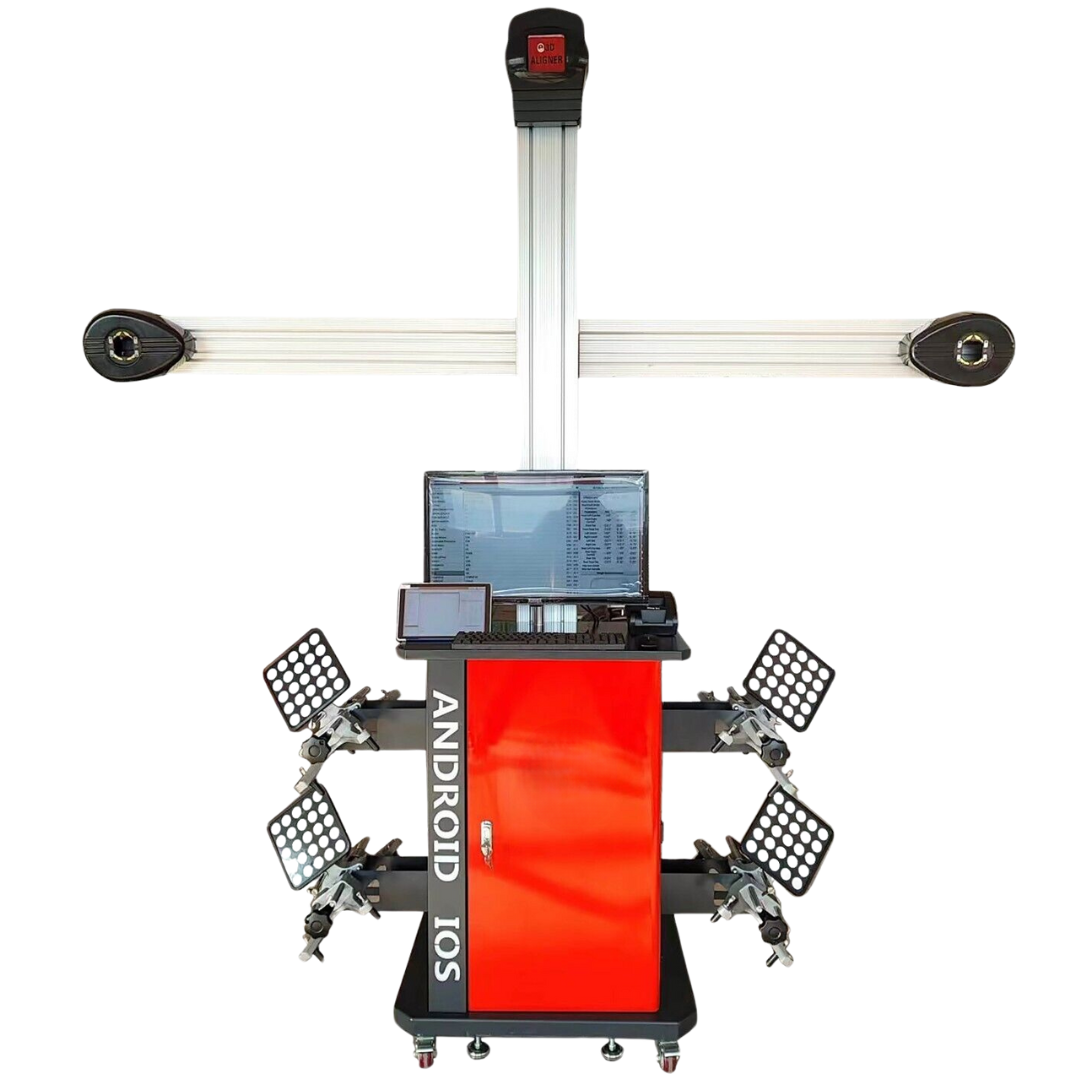

The Katool KT-AV9 is a fully automatic 3D wheel alignment system. It works on 2-post and scissor lifts. High-resolution cameras read targets from 59 to 118 in away. Use a tablet or phone, Android or iOS, as the display.
Specifications
- Camera to turntable distance: 59 to 118 in / 1,500 to 3,000 mm
- Tire diameter: 9.8 to 31.5 in / 250 to 800 mm
- Wheelbase: 63 to 82.7 in / 1.6 to 2.1 m
- Track width: 70.9 to 177.2 in / 1.8 to 4.5 m
- Power: 100 to 240V, 50/60 Hz, single phase
- Operating range: 41 to 104°F
- Net weight: 441 lbs
Ships by freight to the lower 48.
Shipping and returns
Tire changers and balancers ship free curbside to the lower 48. Residential liftgate delivery is available at checkout. Car lifts ship freight with delivery included in the price. Tracking is emailed once your order ships.
Inspect your delivery before signing. Note any damage on the delivery receipt.
Full details: Shipping Policy and Refund Policy.
