Description

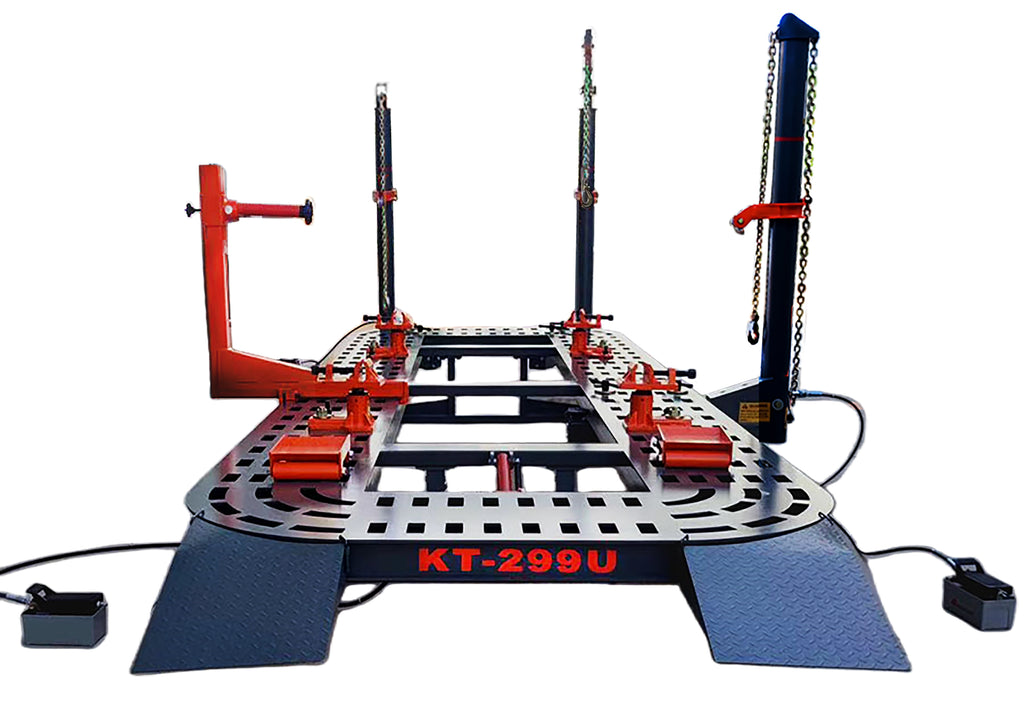

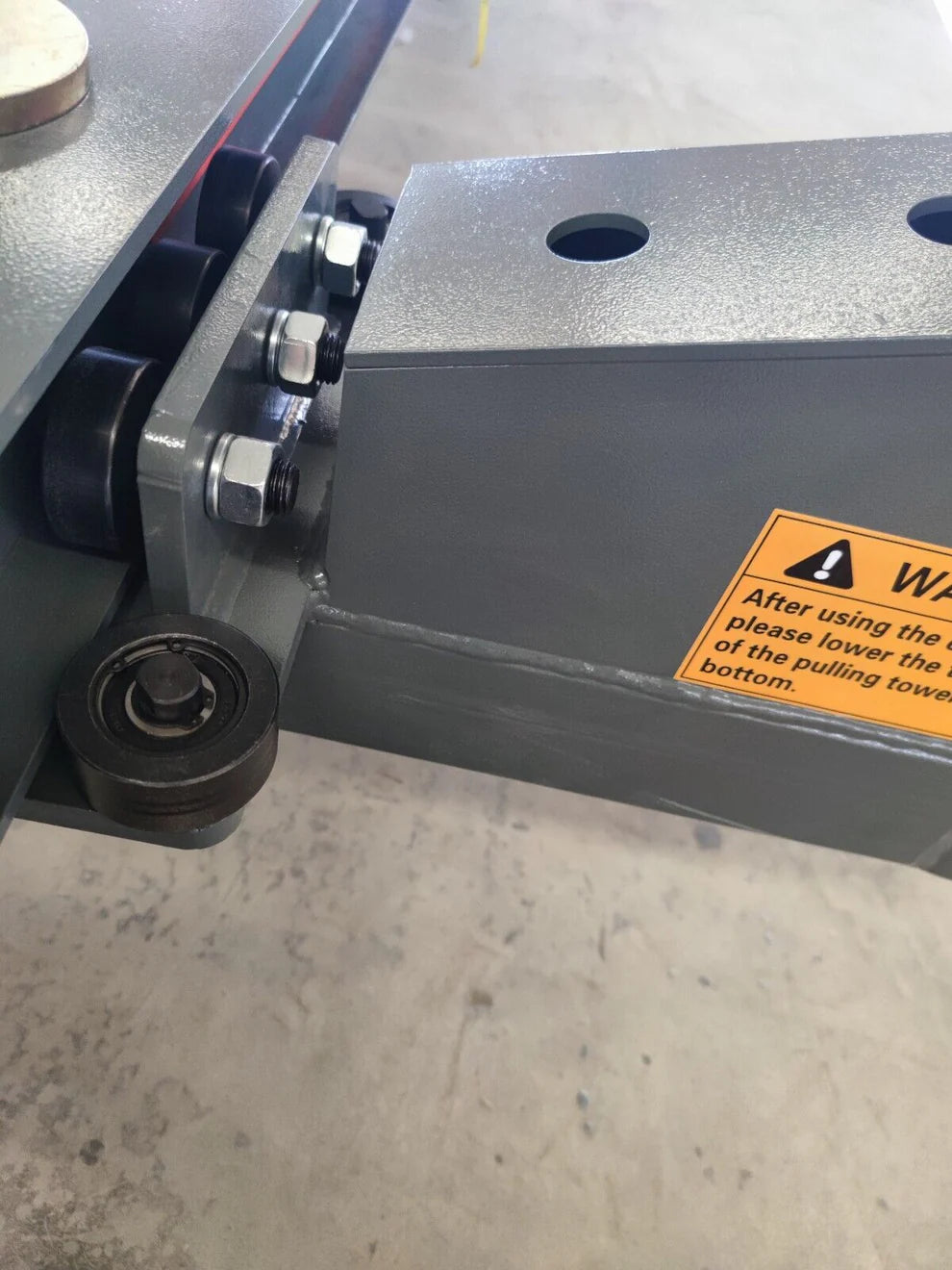

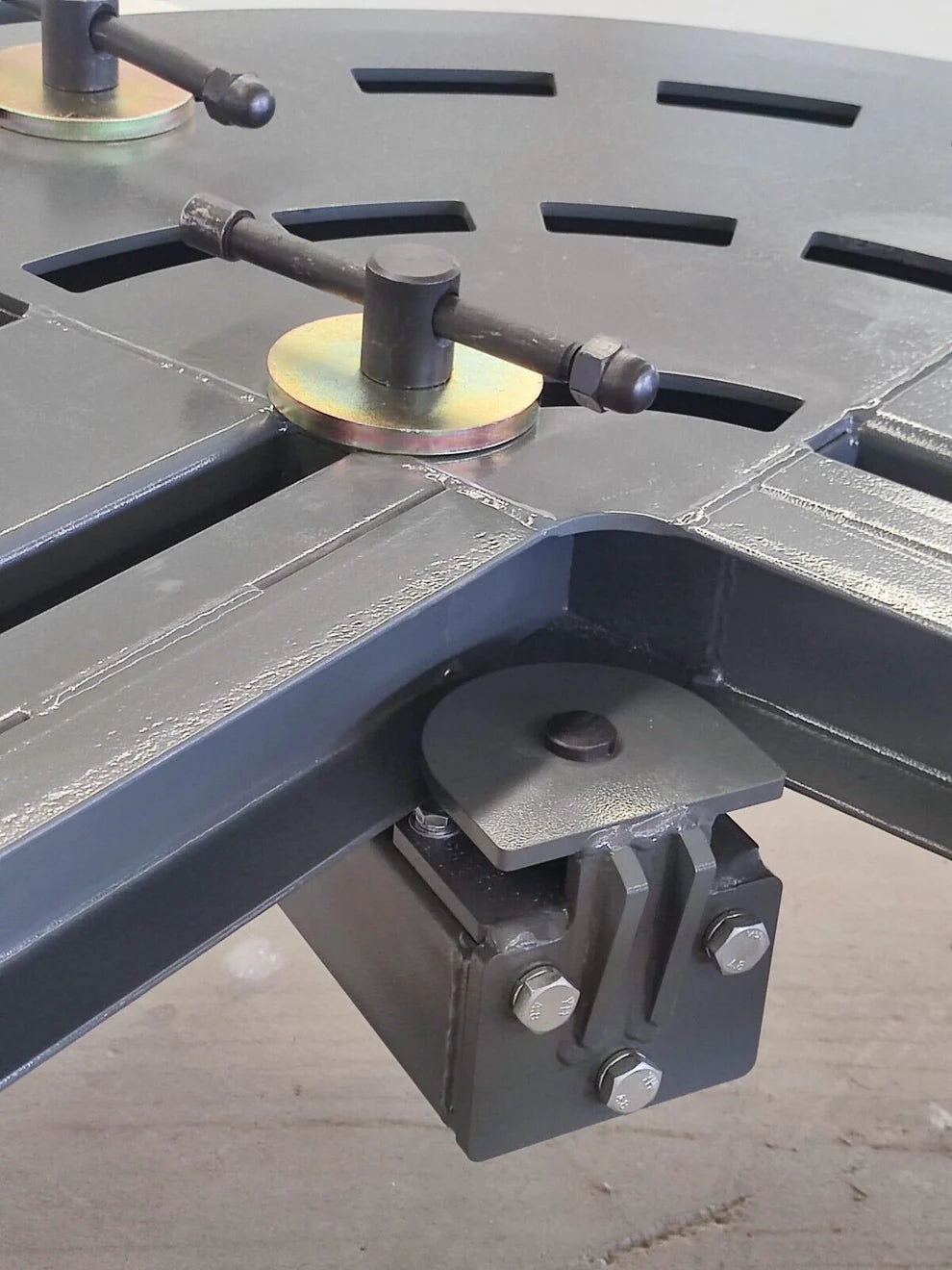

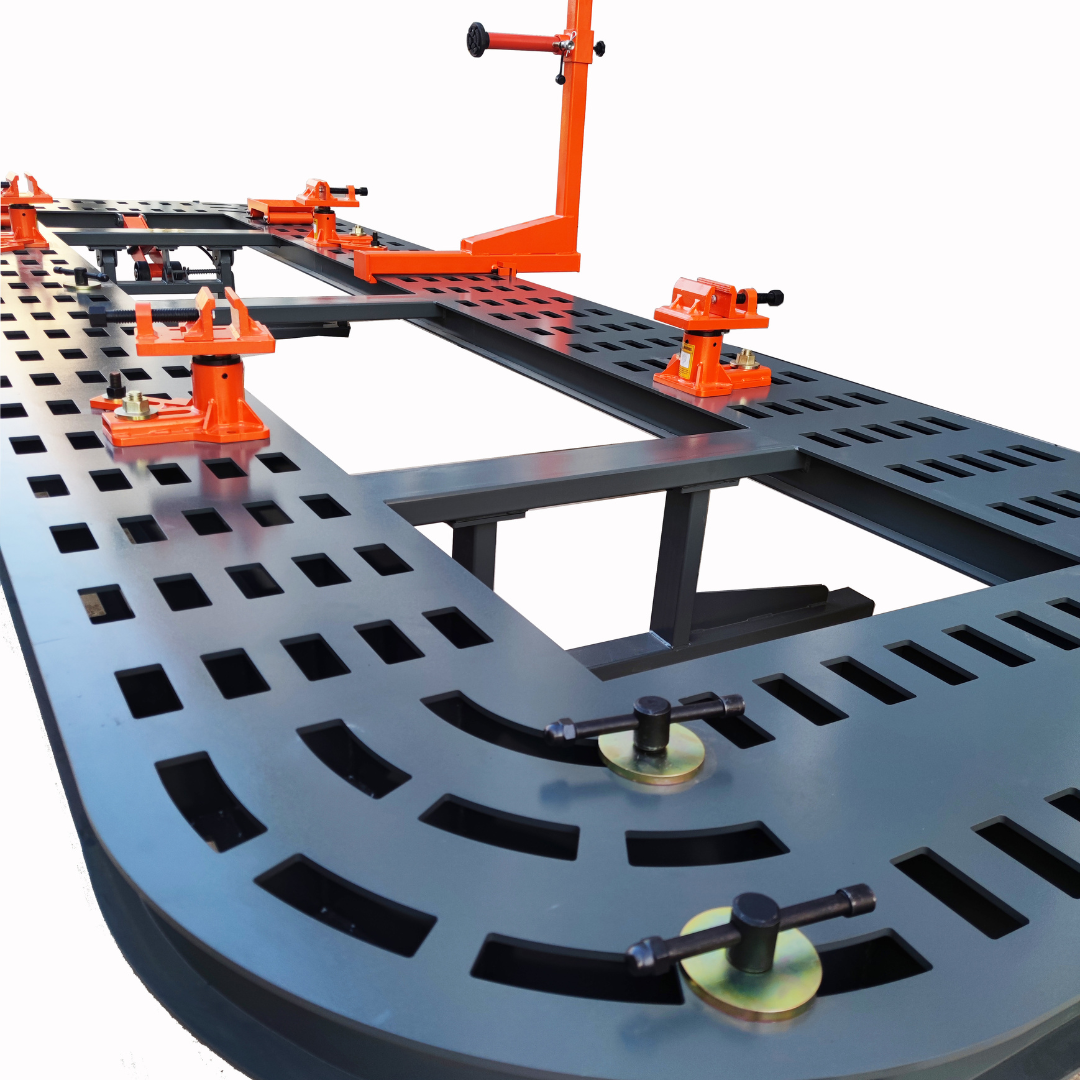

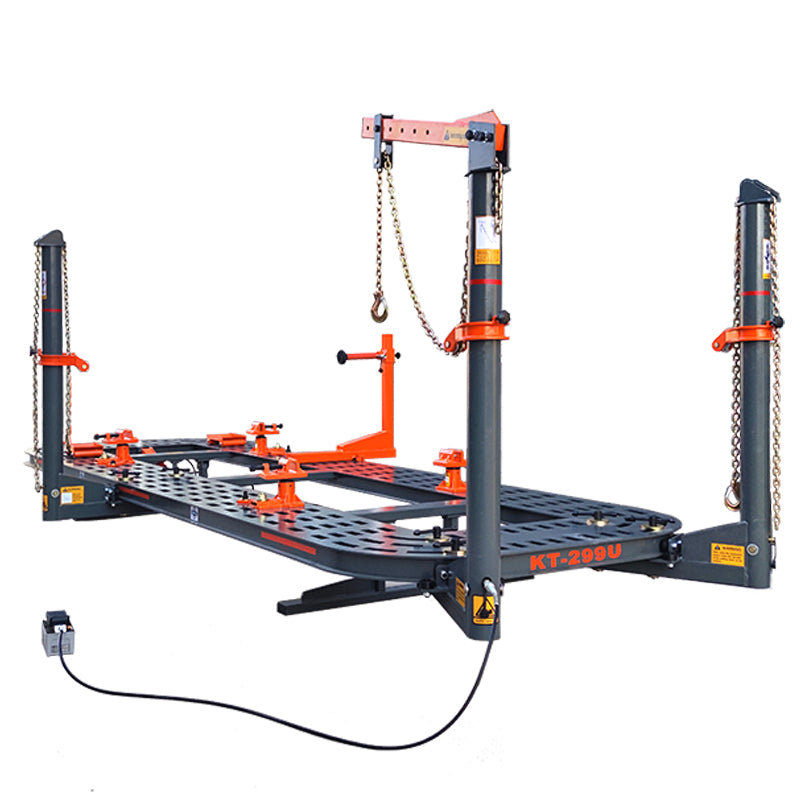

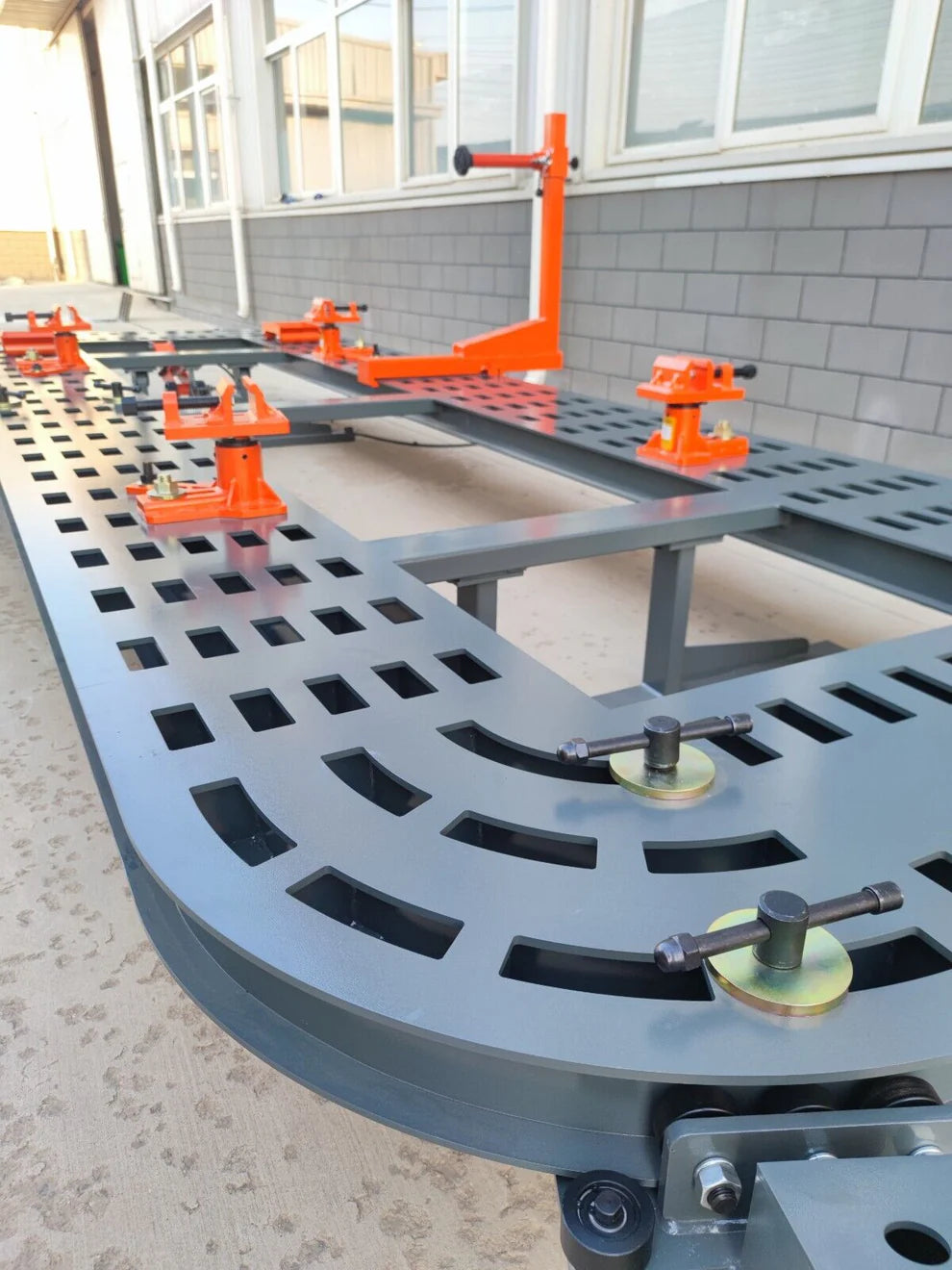

The Katool KT-299U is a 20 ft auto body frame machine with 4 pulling towers rated at 10 tons each. Towers rotate 360° around the platform with no dead spots. Built from manganese steel with CNC plasma cutting and a powder-coated finish.

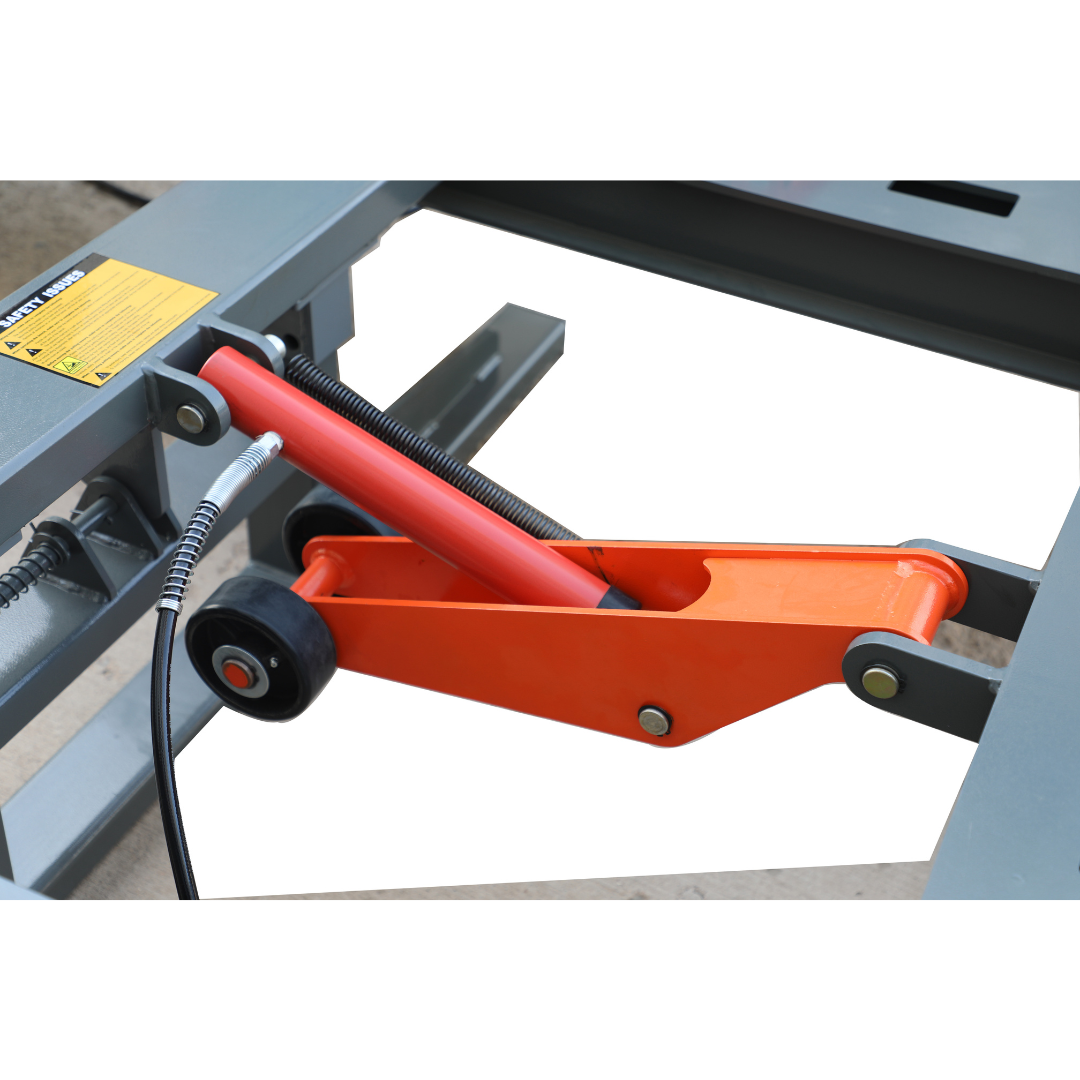

- Tilting hydraulic platform

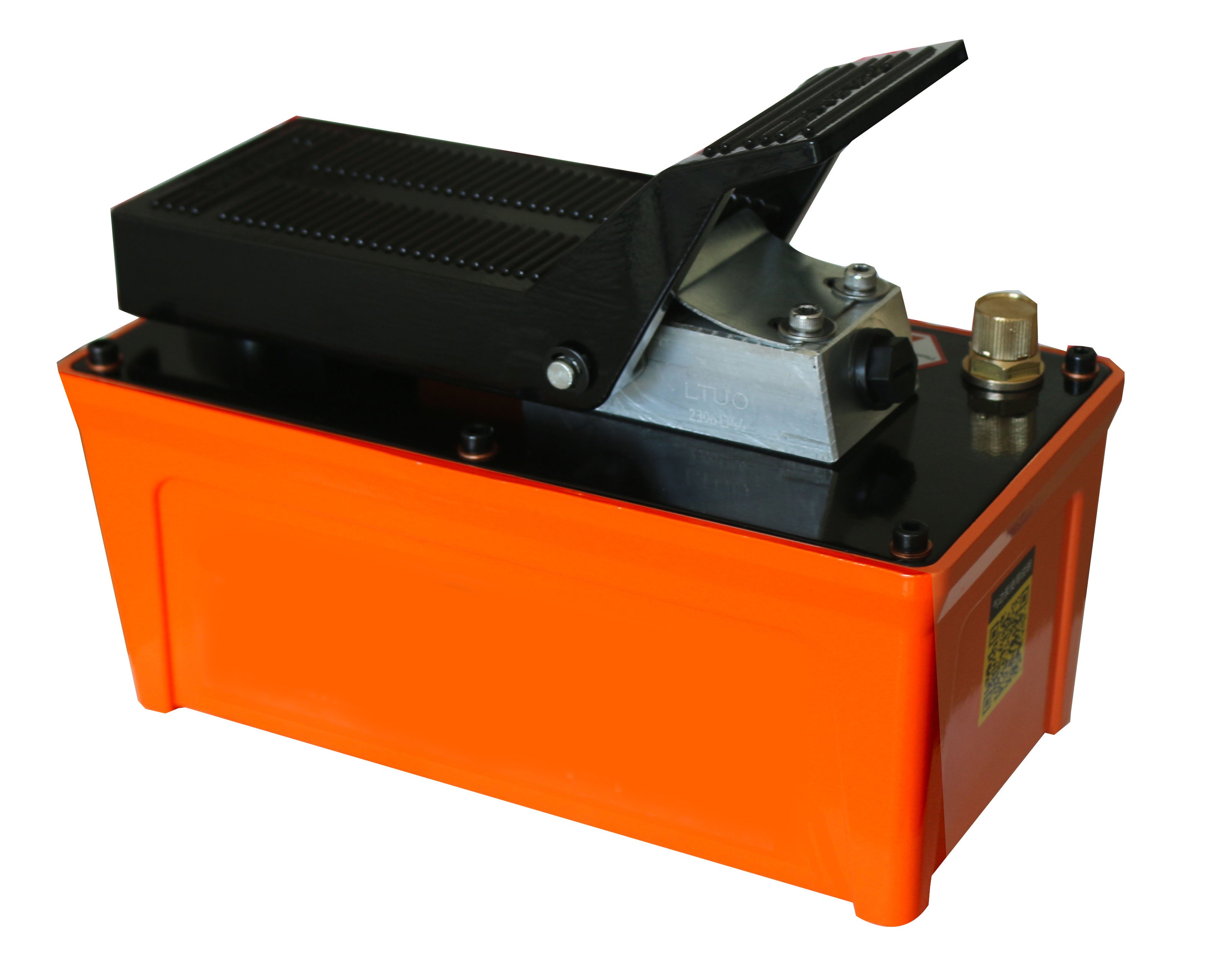

- High-pressure pneumatic pump

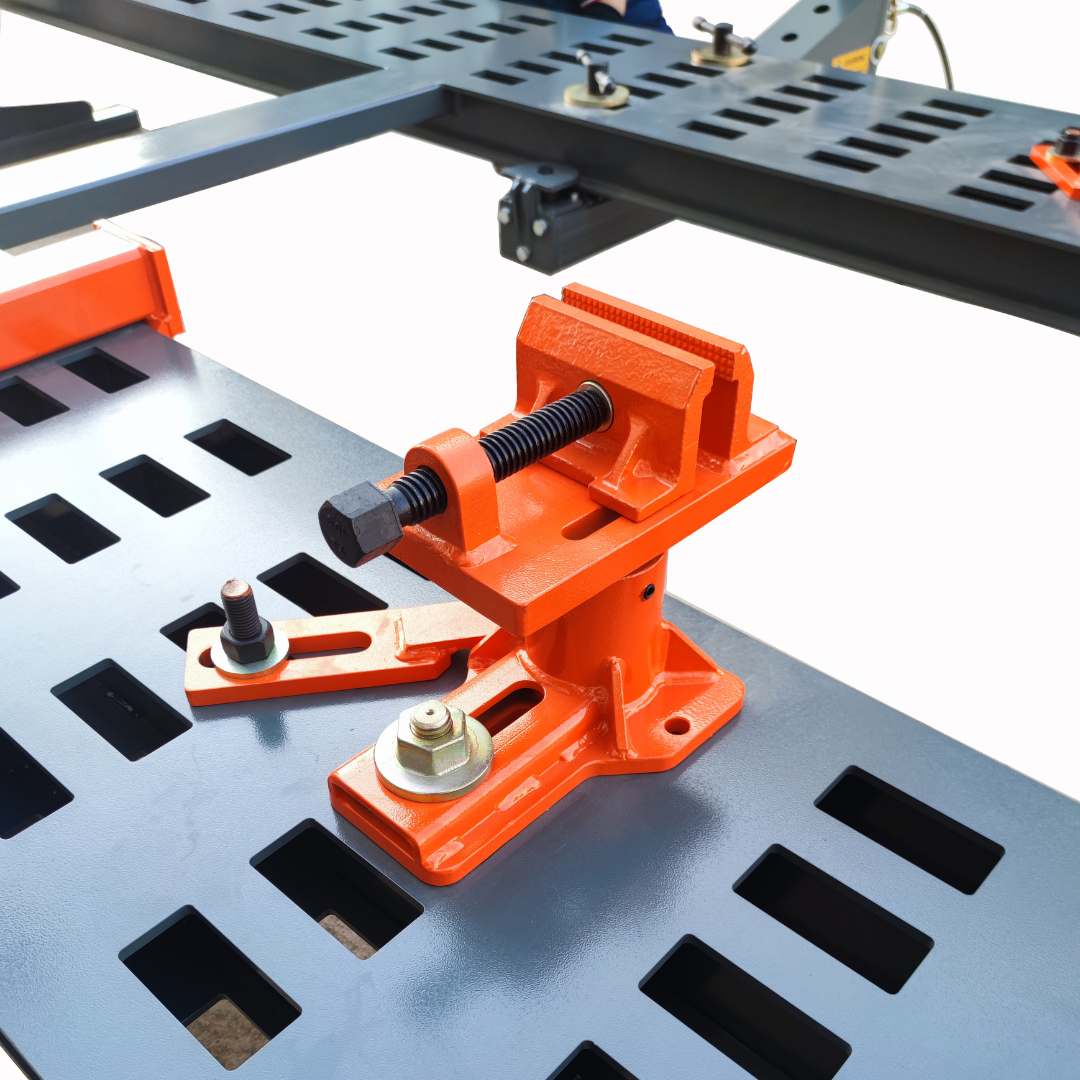

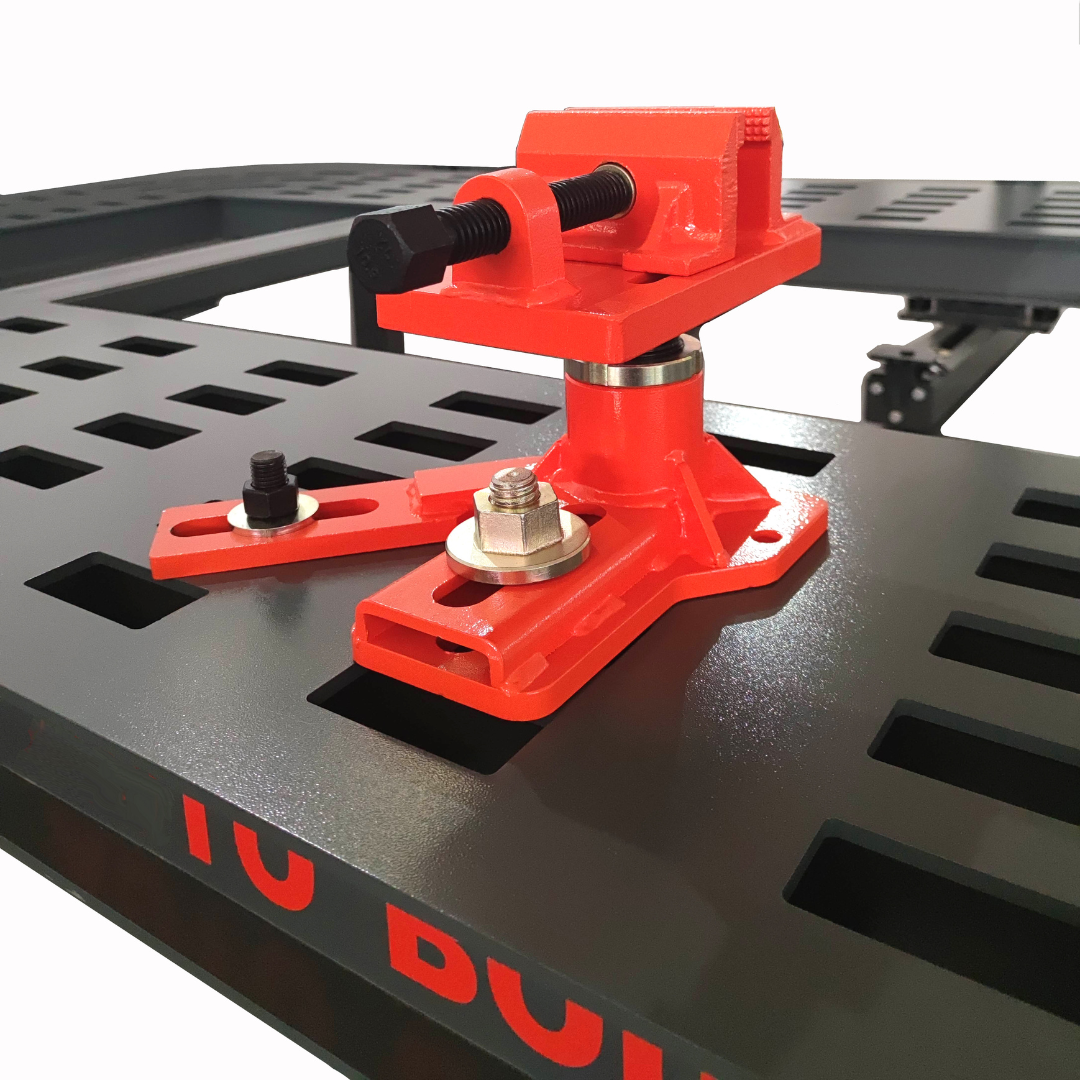

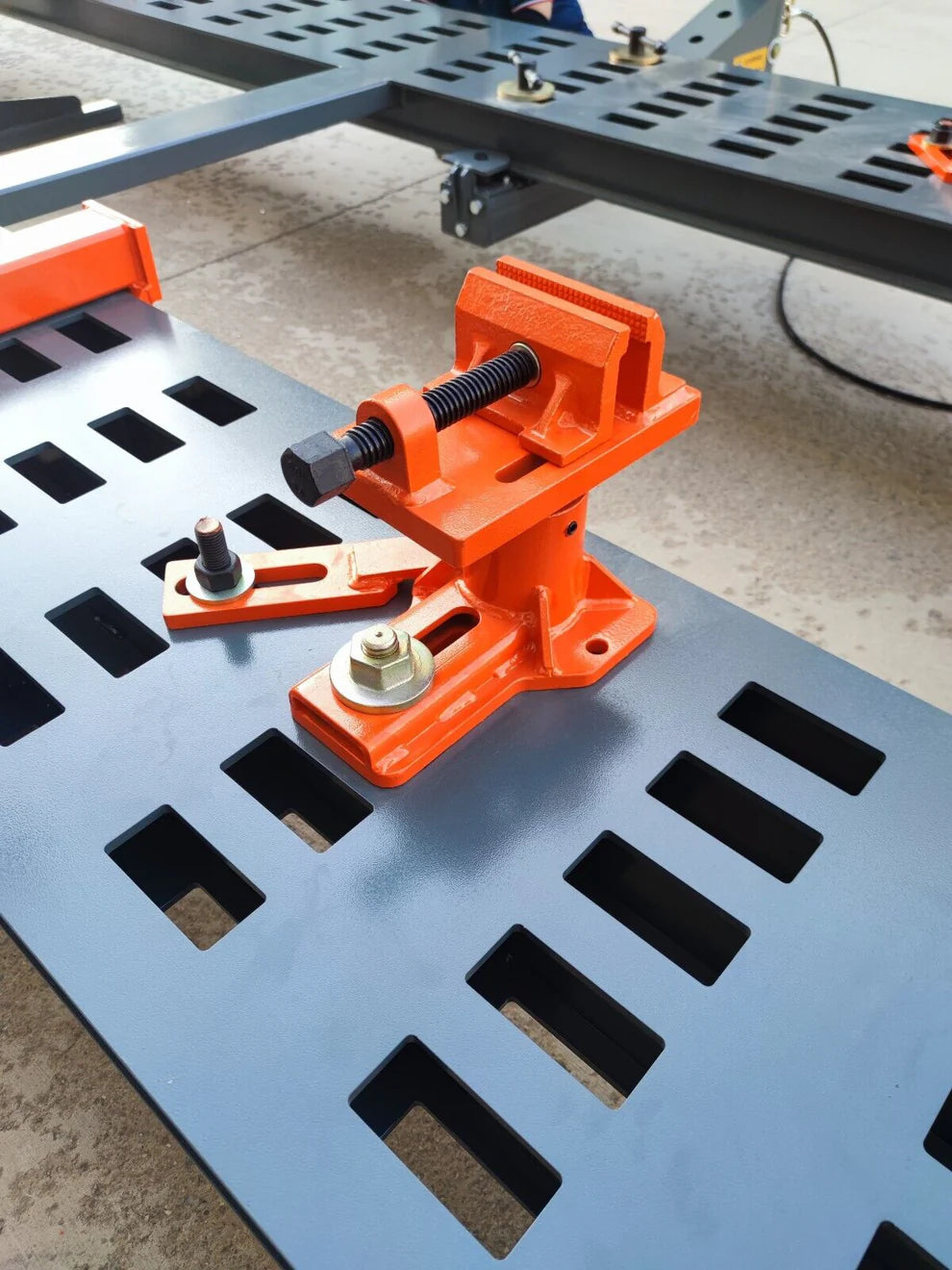

- Spiral-action main clamps
Specifications

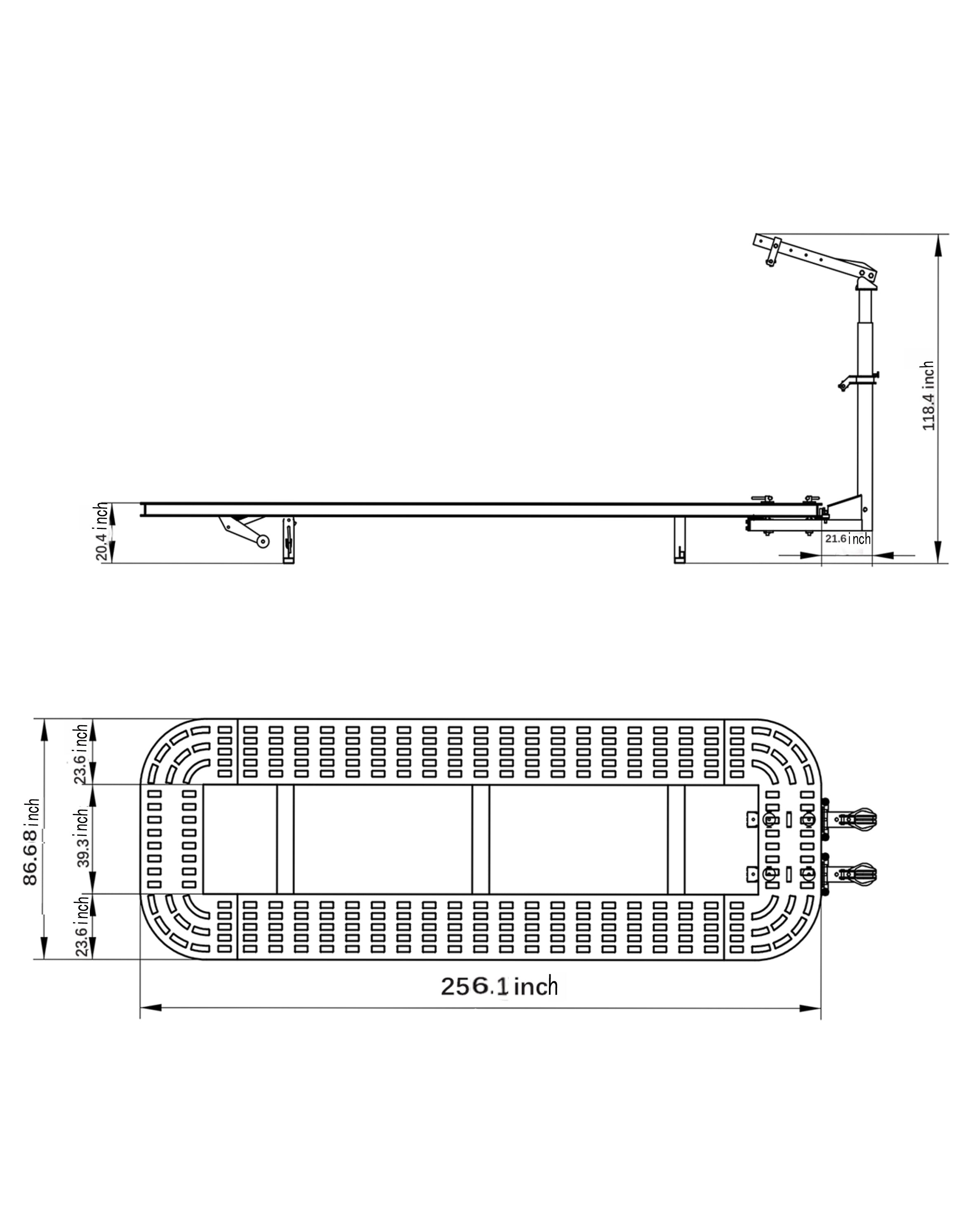

- Length: 256.1 in
- Width: 86.68 in
- Platform height: 4.3 to 67 in
- Pulling capacity: 100 kN
- Pulling radius: 360°
- Max load: 7,700 lbs
- Voltage: 220V
- Air supply: 0.8 MPa / 116 psi

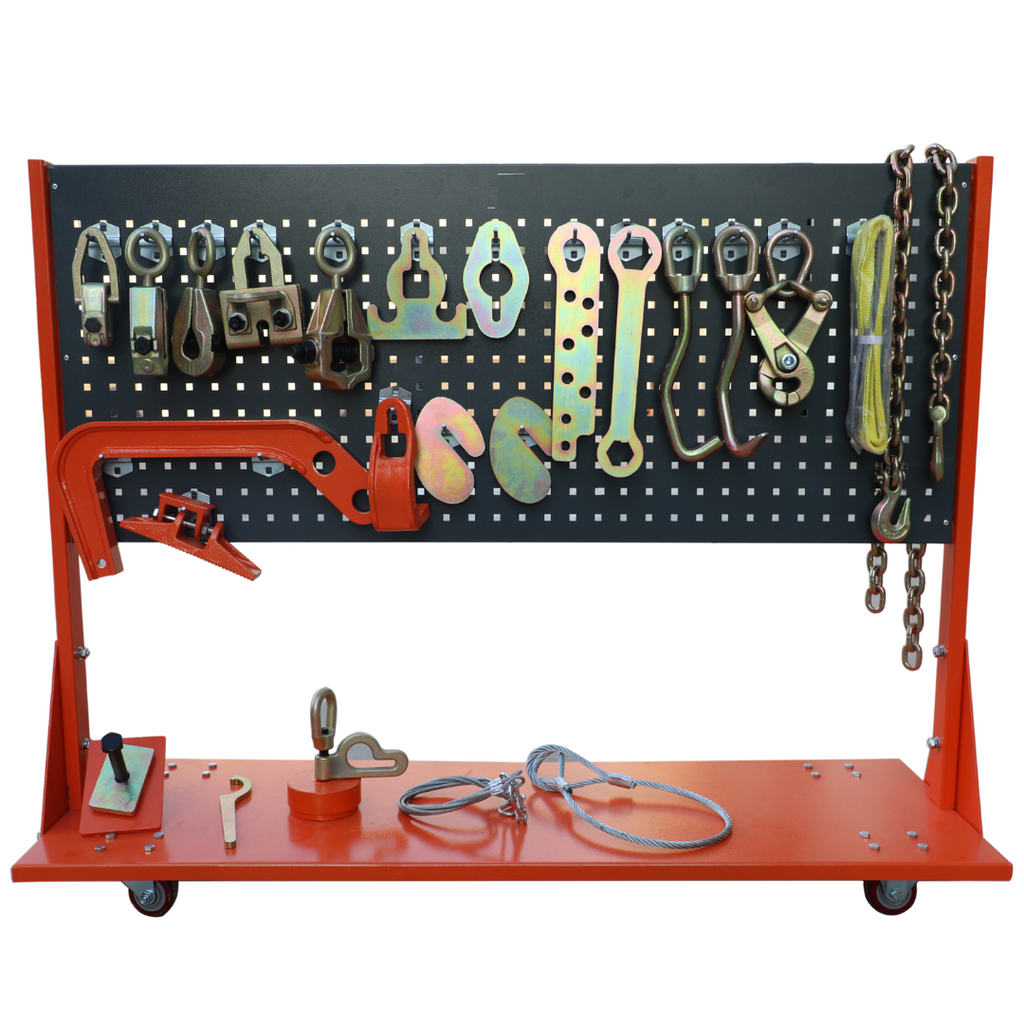

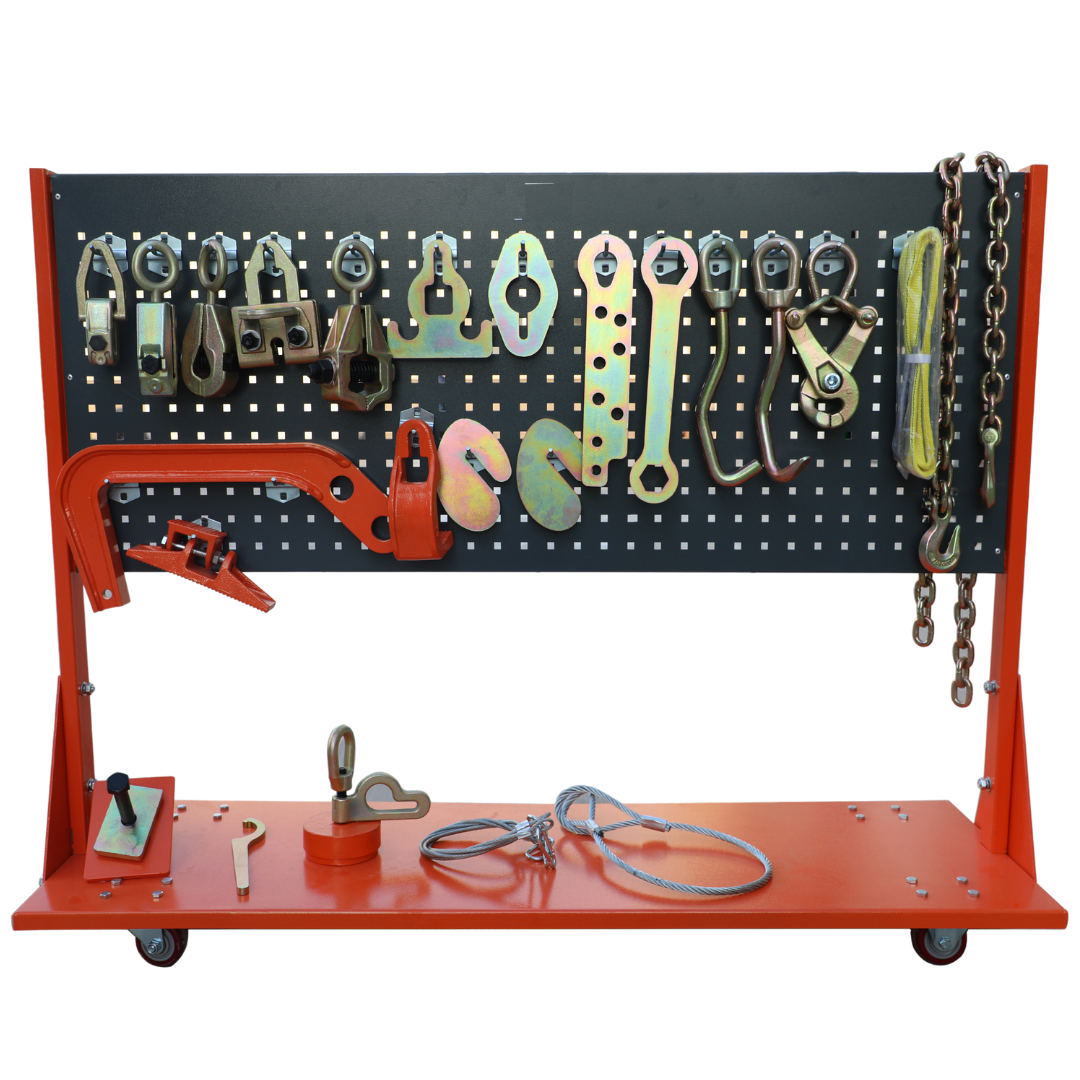

Ships by freight to the lower 48. Call 833-738-2671 for a freight quote and accessory list.
