Description

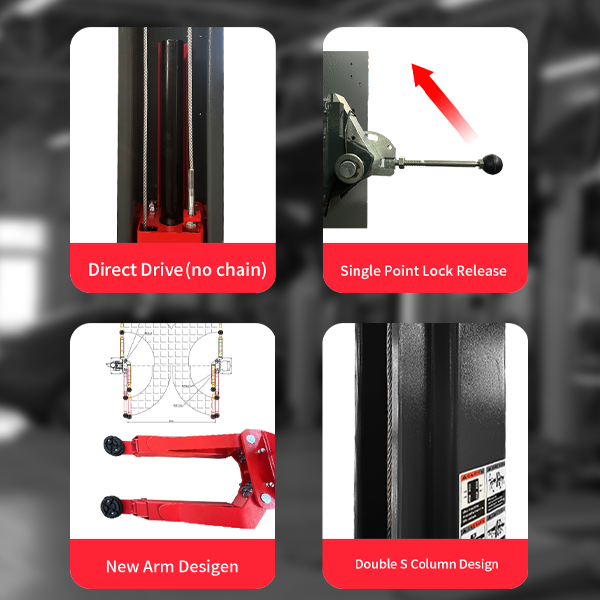

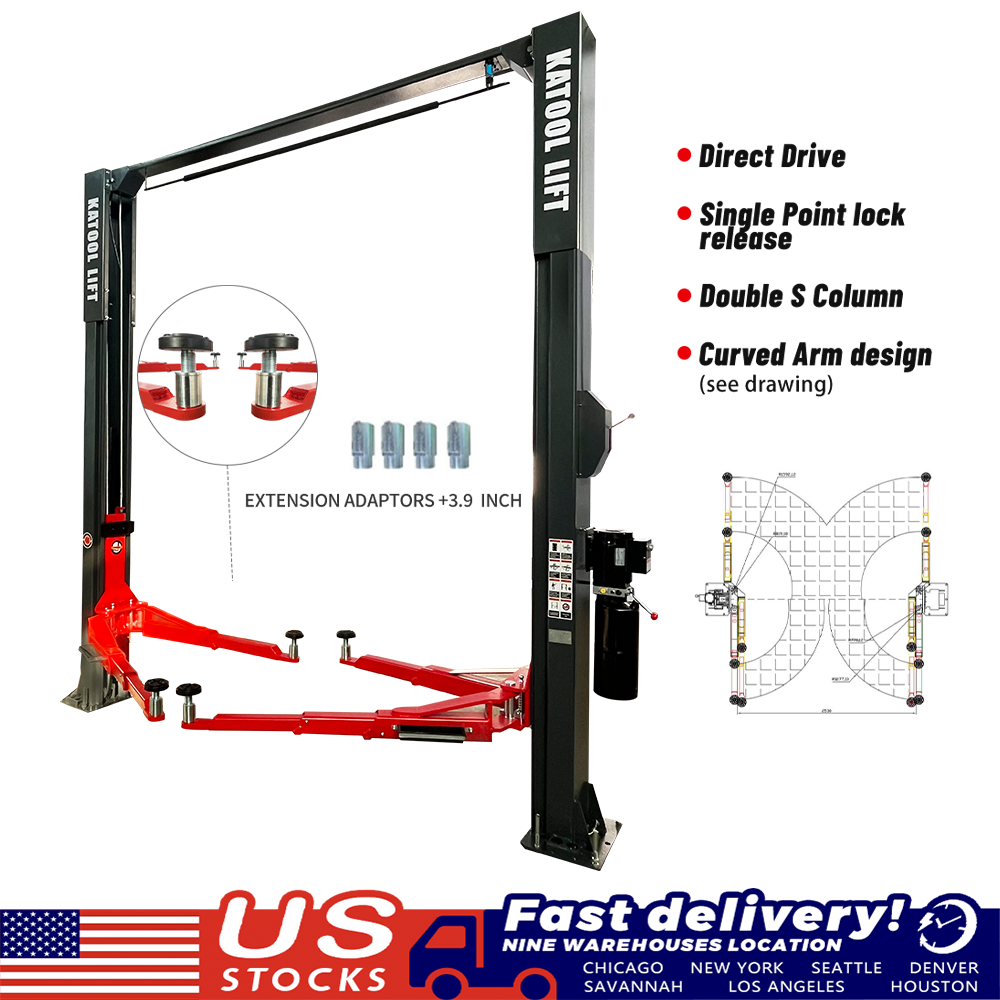

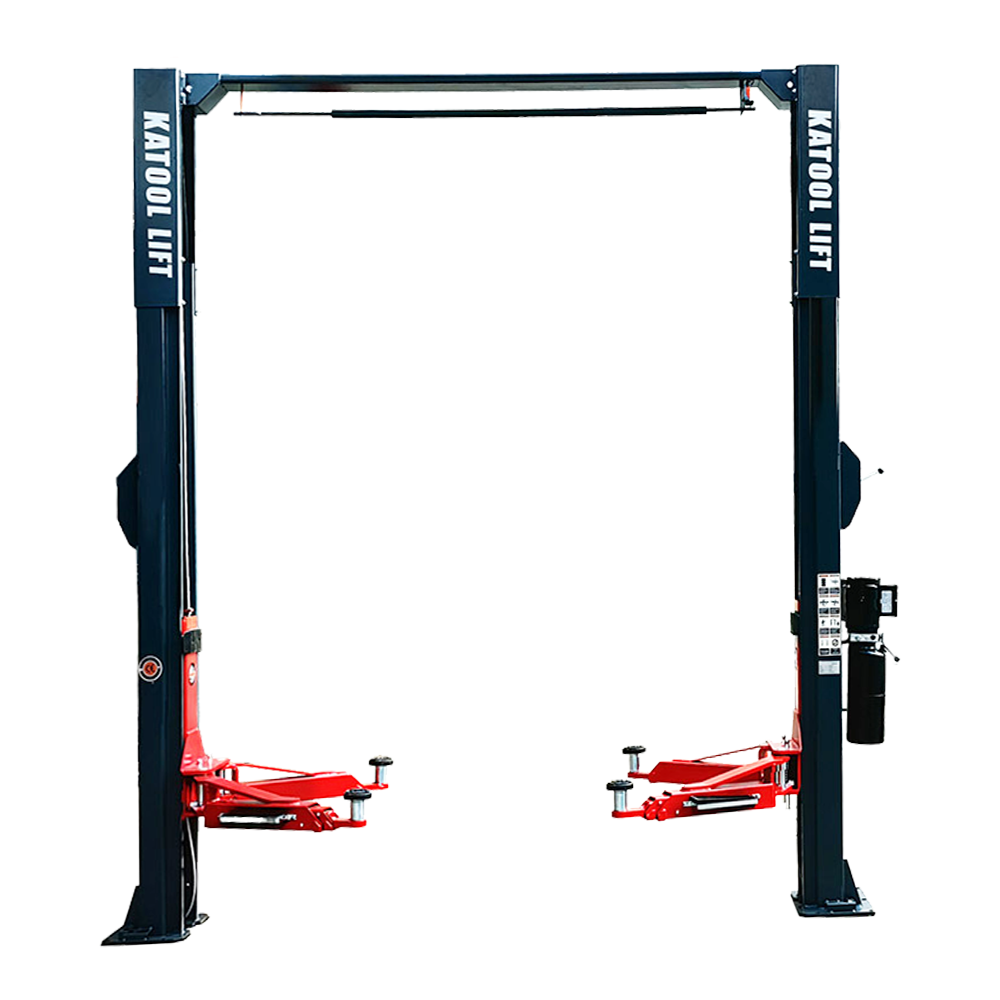

The Katool KT-AS110D is an 11,000 lb clear-floor 2-post lift with asymmetric arms and direct-drive cylinders. No chains to adjust. Single-sided lock release keeps operation simple, and asymmetric arms set the car back so doors open freely.
- Tested to 115% dynamic and 150% static load

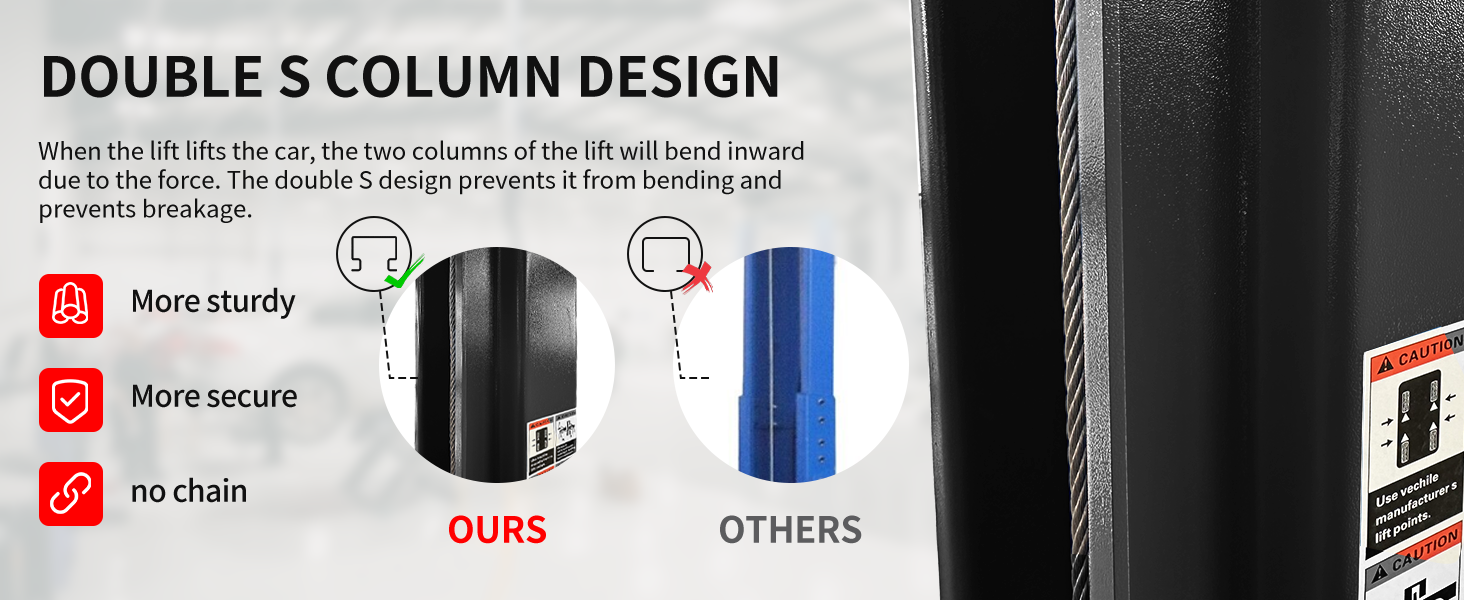

- Double S-column design

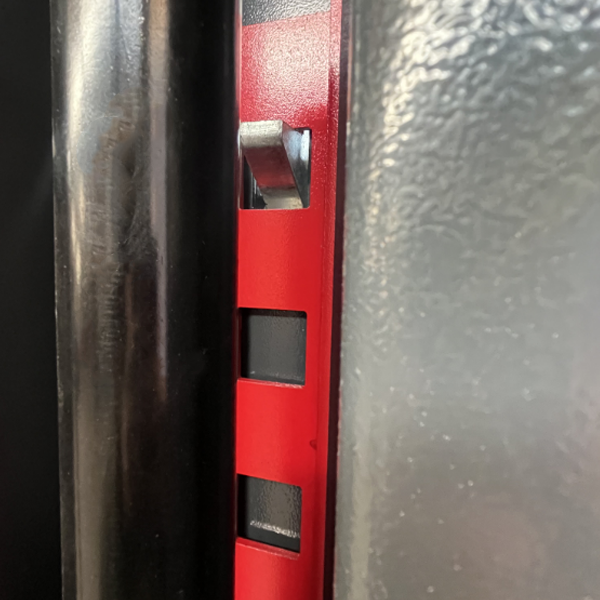

- 14 locking positions
- Includes lift, hydraulic pump and 8 anchor bolts

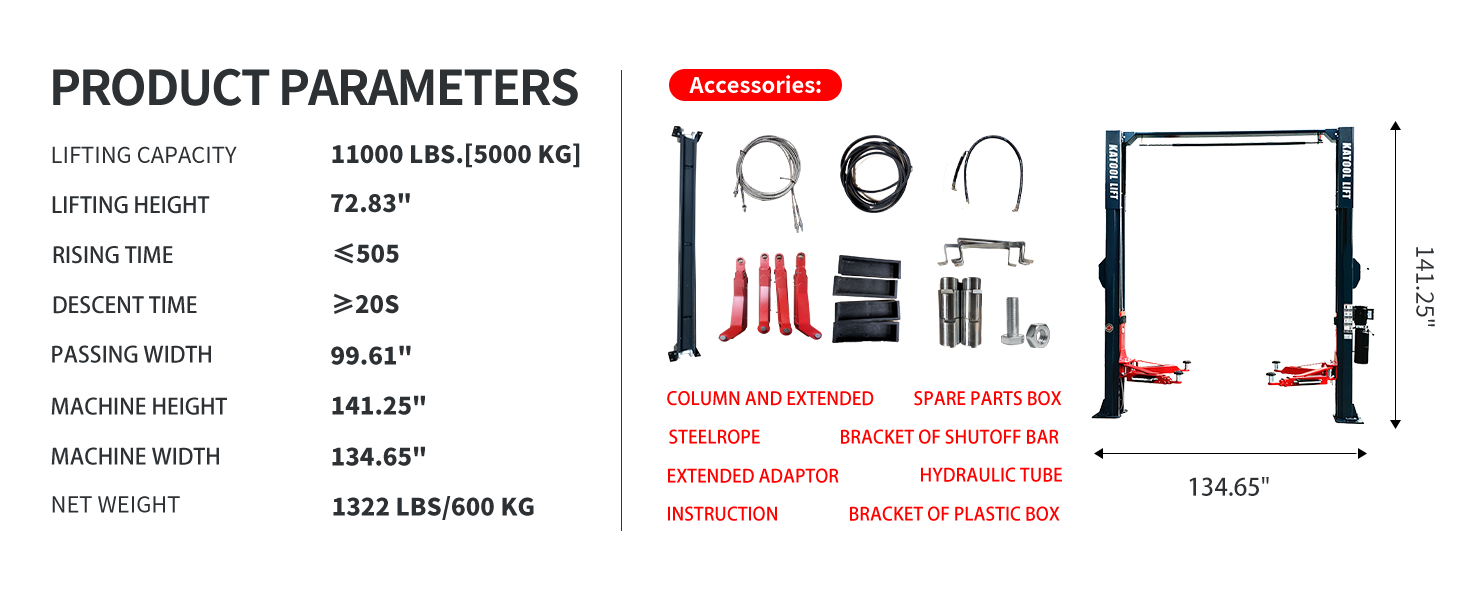

Specifications
- Lifting capacity: 11,000 lbs / 5,000 kg

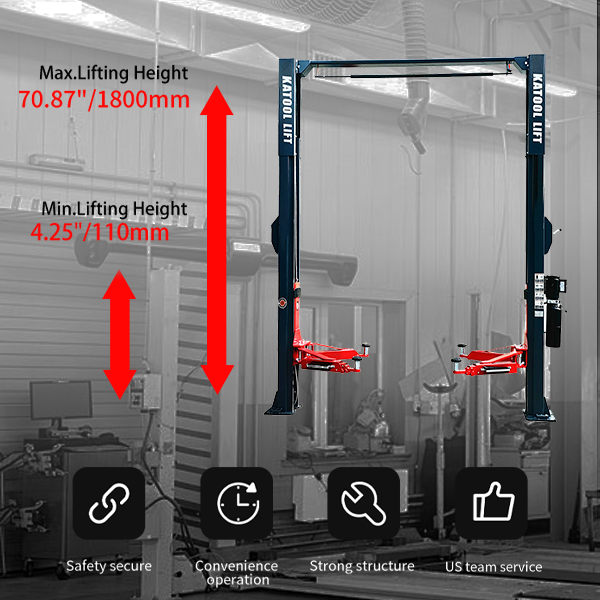

- Max lifting height: 70.87 in / 1,800 mm
- Min pad height: 4.25 in / 110 mm
- Motor: 3 HP, 110V, single phase
- Dimensions: 134.65 in wide x 141.2 in tall
- Product weight: 1,367 lbs. Ship weight: 1,400 lbs.
- Manufacturer warranty: 3 year limited
Before you order
- Needs about 141.2 in of ceiling height for the overhead bar.
- Concrete must be at least 5.9 in thick, rated 3,000 PSI.
- Ships by freight to the lower 48.
Shipping and returns
Tire changers and balancers ship free curbside to the lower 48. Residential liftgate delivery is available at checkout. Car lifts ship freight with delivery included in the price. Tracking is emailed once your order ships.
Inspect your delivery before signing. Note any damage on the delivery receipt.
Full details: Shipping Policy and Refund Policy.
