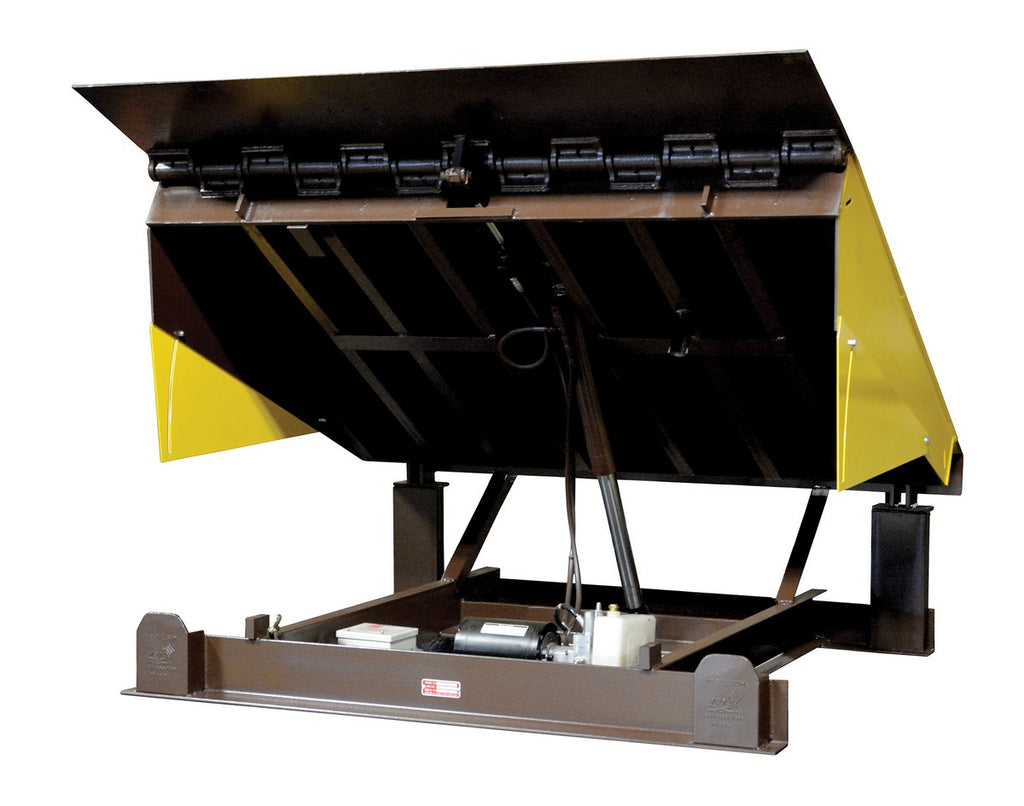

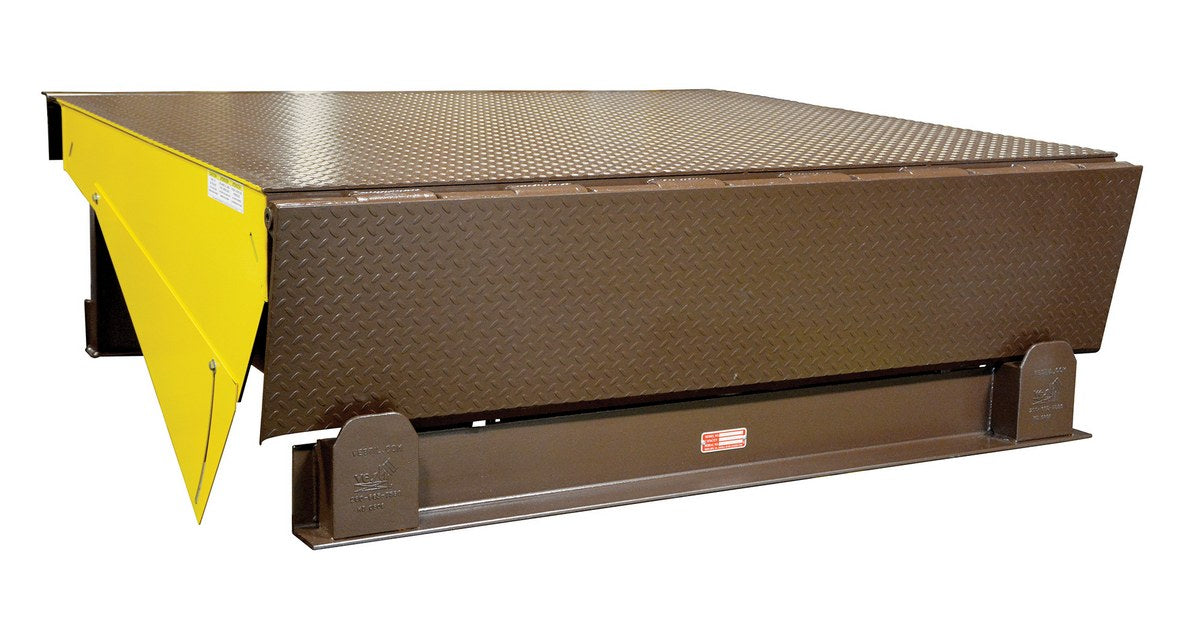

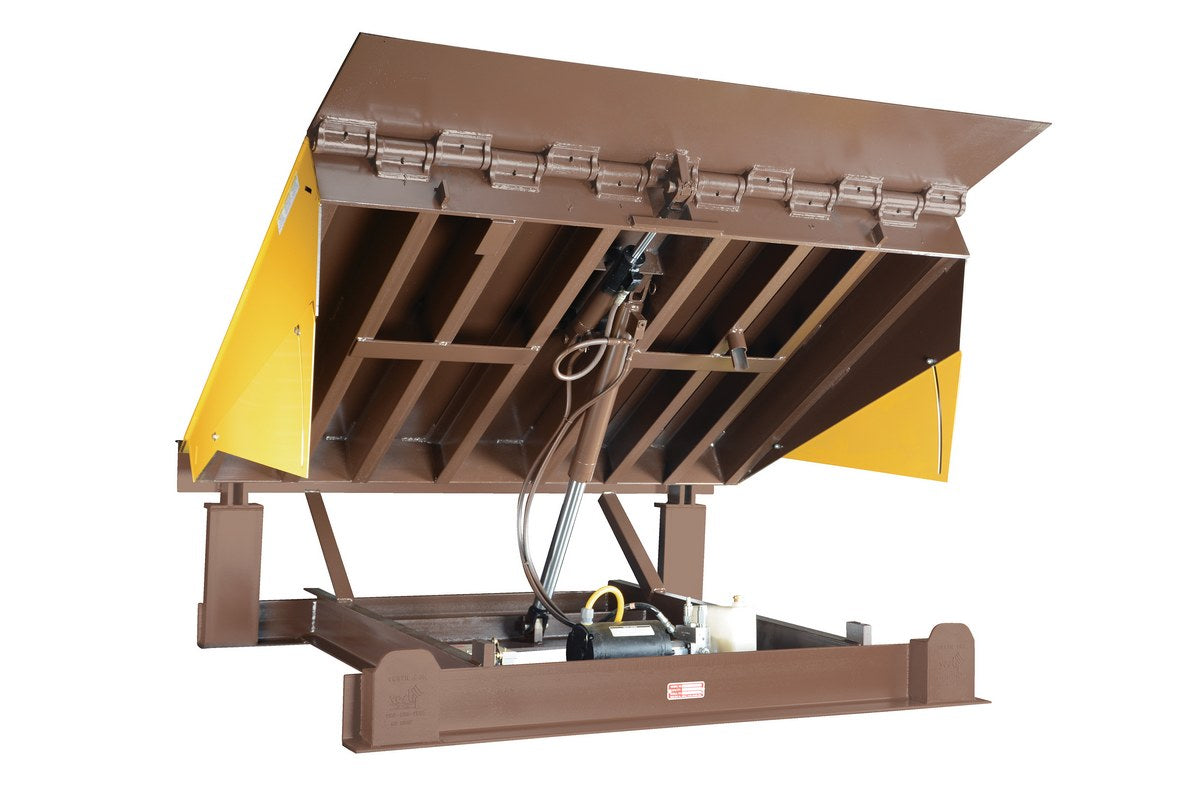

The Vestil electric hydraulic dock leveler is a 20K, 6 x 6 ft leveler for busy loading docks. One push button raises the deck and the lip extends on its own. It bridges trucks within a +/- 12" service range and runs on 460V 3-Phase power.
Key features
- Push and hold the raise button to run the hydraulic pump and lift the deck.
- Lip extends automatically at the top. Release the button and the deck settles onto the trailer.
- When the truck leaves, the deck drops, trips the limit switch and returns to level cross traffic position on its own.

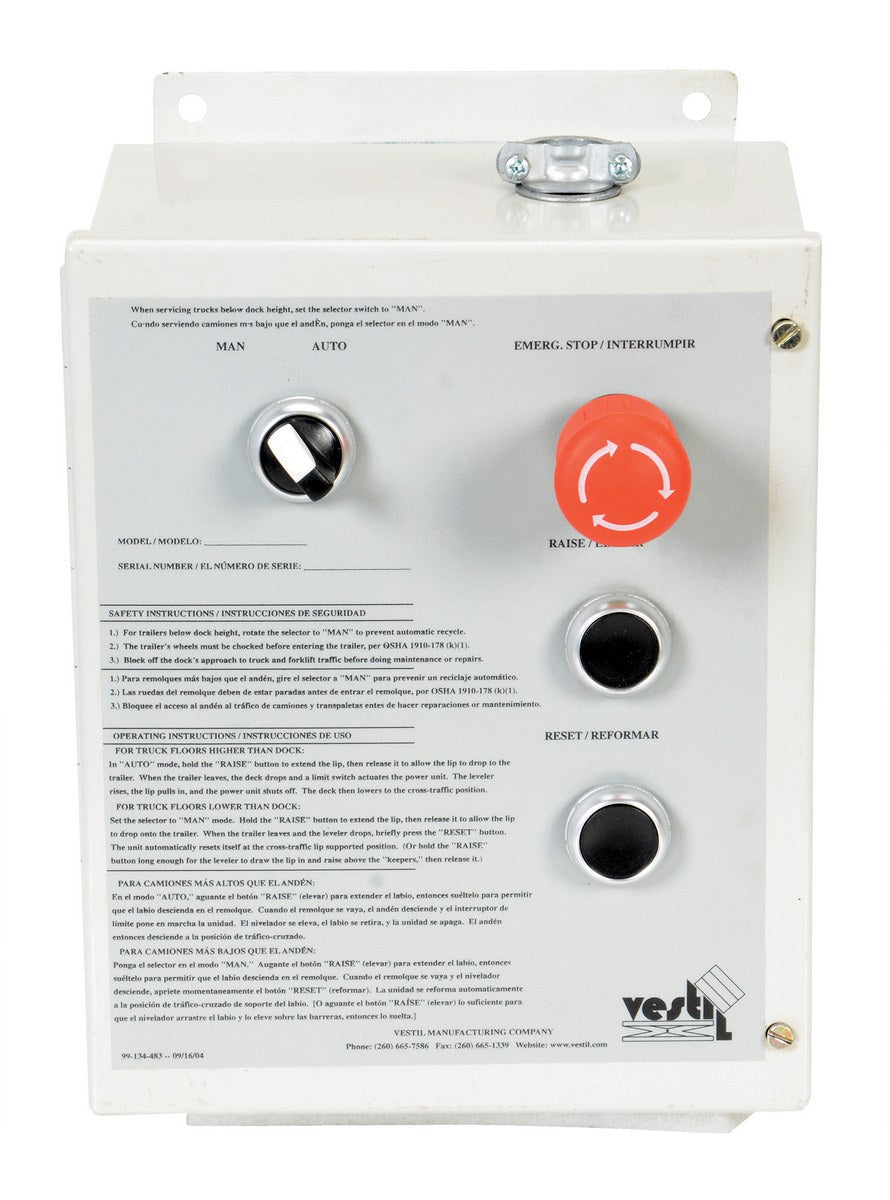

- Red emergency stop button on the control box.
- Telescopic steel toe guards on both sides, flush with the platform edge.
- Two (2) laminated bumpers included.
Specifications
| Capacity | 20K |
| Size | 6 x 6 ft |
| Operation | Electric hydraulic, push button |
| Service range | +/- 12" |
| Power | 460V 3-Phase standard |
| Controls | Control box with red emergency stop button |
| Toe guards | Telescopic steel, both sides, flush with platform edge |
| Bumpers | Two (2) laminated |
| Higher capacities | Uniform capacities available up to 80,000 pounds, contact factory |
Follow the manual for installation and use.
Questions
What power does it need?
460V 3-Phase is standard.
Does it return to level on its own?
Yes. When the truck pulls away, the deck drops, trips the limit switch and returns to the level cross traffic position.
Can I get a higher capacity?
Uniform capacities are available up to 80,000 pounds. Call 833-738-2671 or email support@revampedgarage.com for details.
