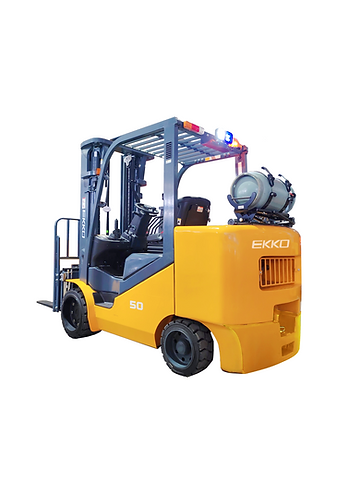

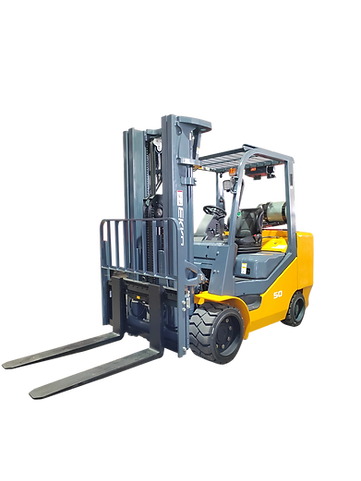

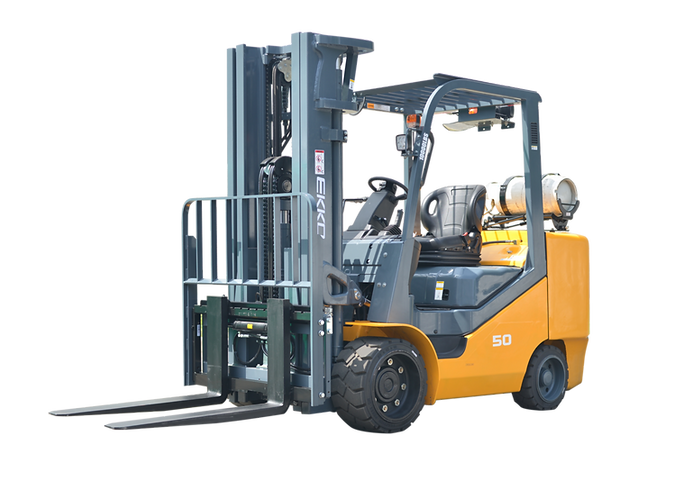

EK50LP
The EKKO EK50LP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.
This unit is manufactured with high durable quality, Tier 4 EPA compliant with the Kubota engine and competitive pricing.
• Multifunction instrument panel - motoring for Safety and efficient operation
• Operator compartment- nonslip entrance step, wider access & leg room.
• Adjustable steering column limiting operator arm and shoulder fatigue.
• Excellent Operator visibility.
• Integral Heavy-Duty Chassis- ensuring driver protection
• Steer axle pivots to 80 degrees for tighter turning radius.

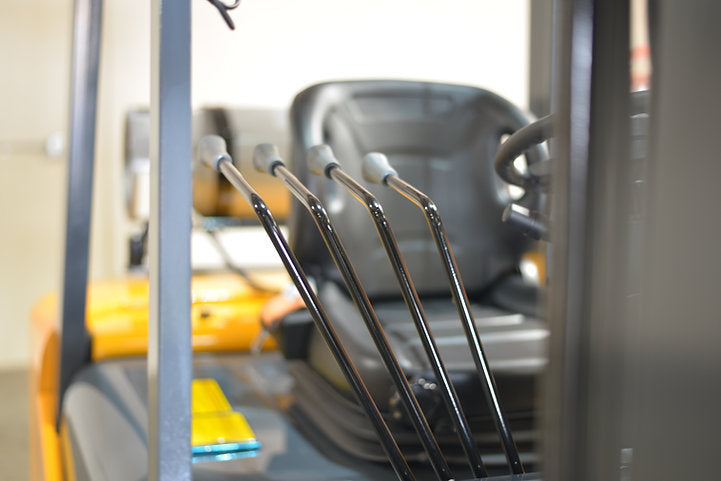

• Hydraulic controls
|
Model |
|
EK50LP |
|
Drive type |
|
LPG |
|
Type of operation |
|
Propane |
|
Load Capacity |
LBS |
10,000 |
|
Load Center |
in |
24 |
|
Lift height |
in |
185 |
|
Wheelbase |
in |
61.8 |
|
Service Weight |
LBS |
16,250 |
|
Tire material |
|
Pattern Cush. Tire |
|
Traction Pin Height |
in |
11.2 |
|
Service Brake |
|
Hydraulic Foot Pedal |
|
Overall width |
in |
55.9 |
|
Overall length with forks |
in |
157 |
|
Overall length without forks |
in |
109 |
|
Min ground clearance (at the mast) |
in |
4.3 |
|
Max traveling speed (loaded/unloaded) |
mph |
10.5/11.2 |
|
Mast Overall height |
in |
91.9 |
|
Free lifting height |
in |
44.3 |
|
Backrest height (from the surface of the forks) |
in |
47.6 |
|
Fork Size |
in |
48x5.9x1.97 |
|
Parking Brake |
|
Mechanicl Hand Lever |
|
Engine Mode |
|
Kubota WG3800 |
|
Engine rated power |
HP/rpm |
63.2 |
