Auxx-Lift

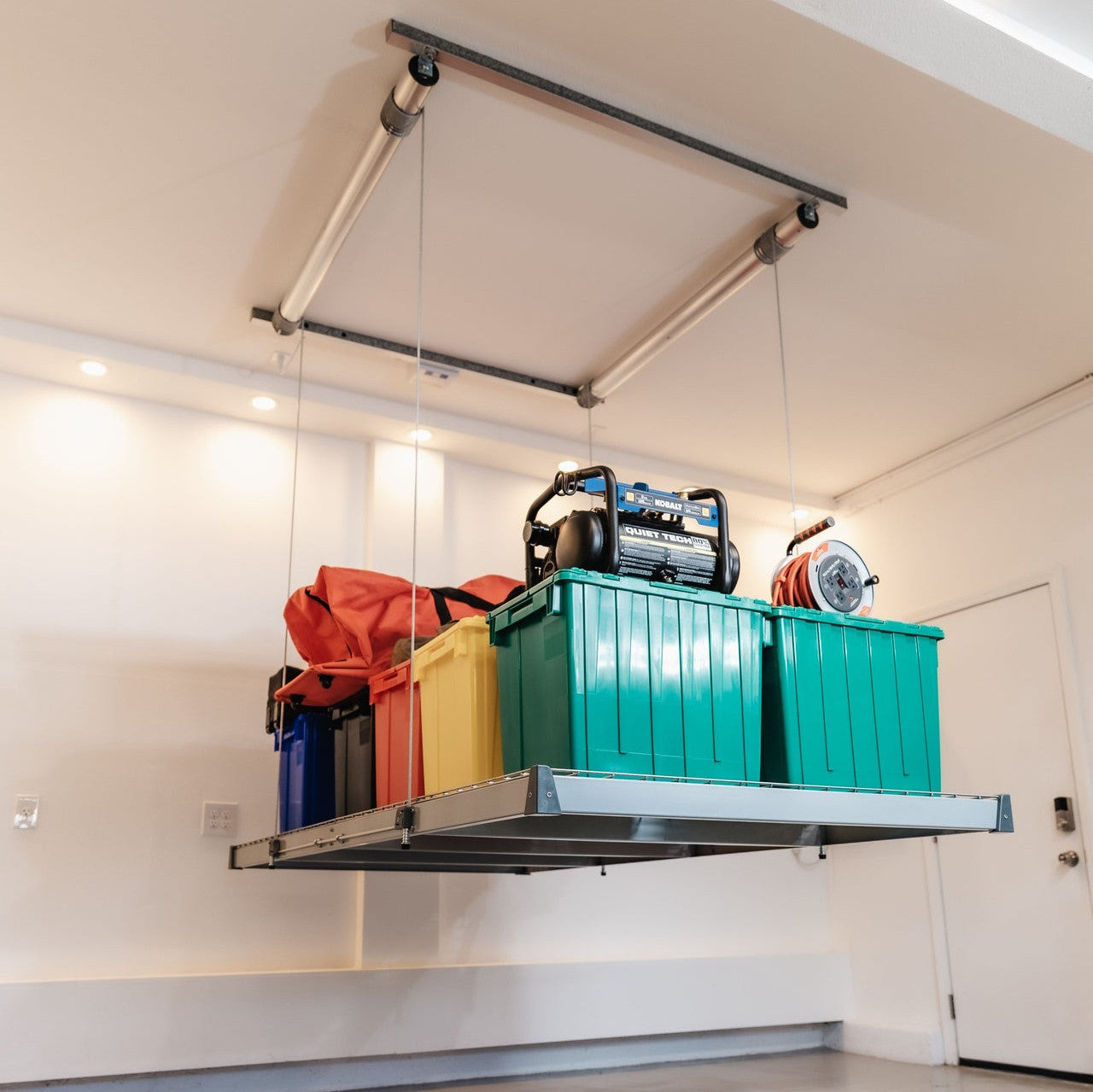

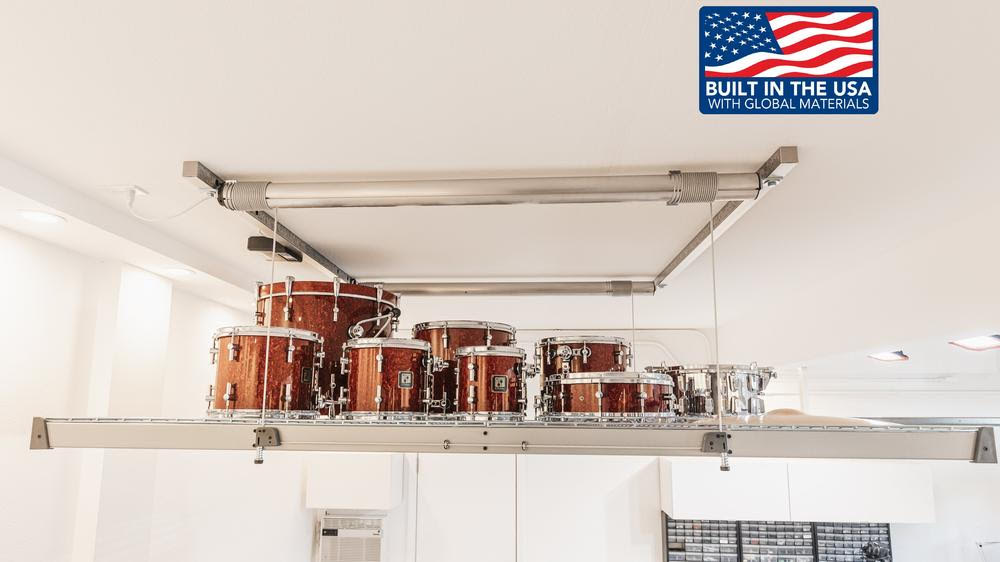

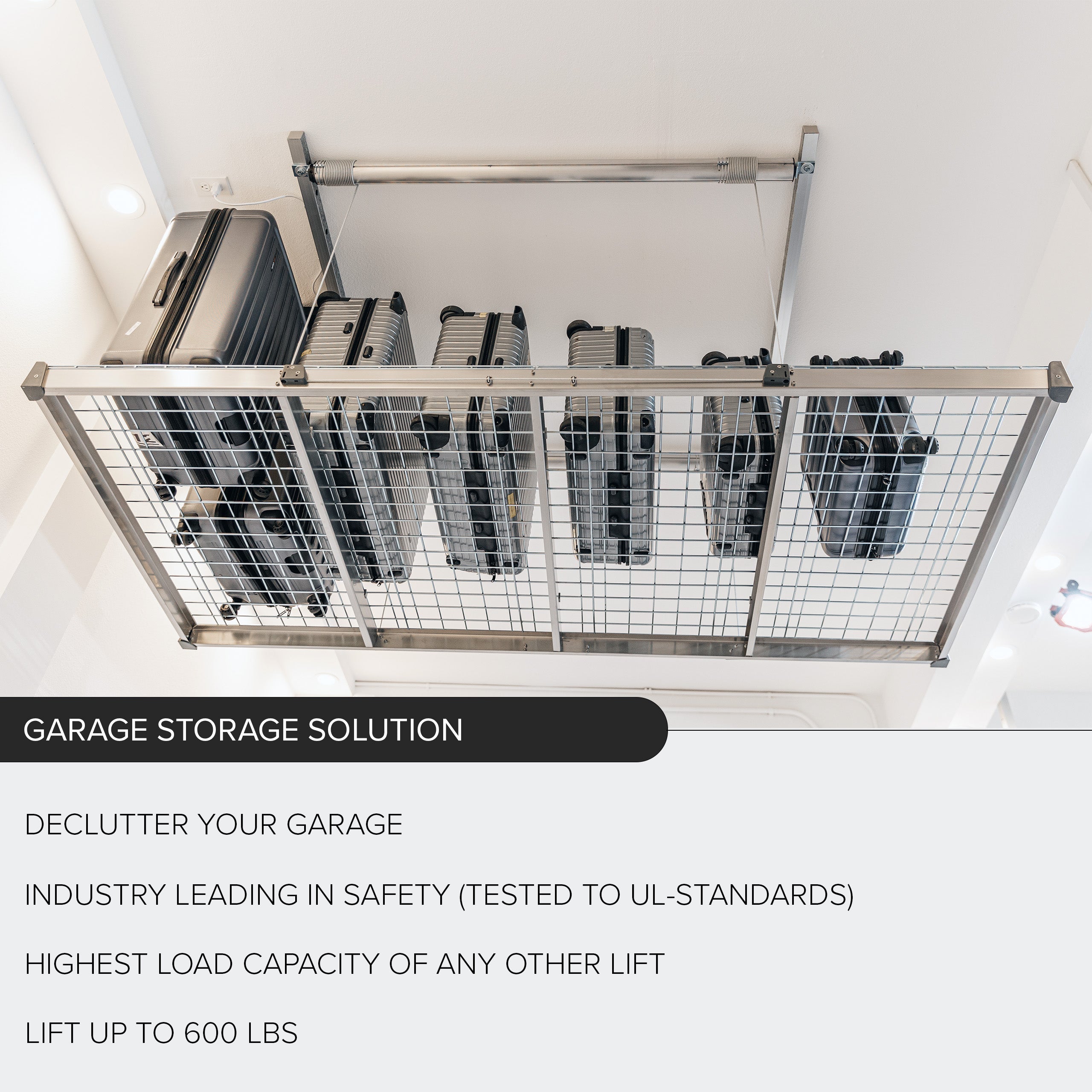

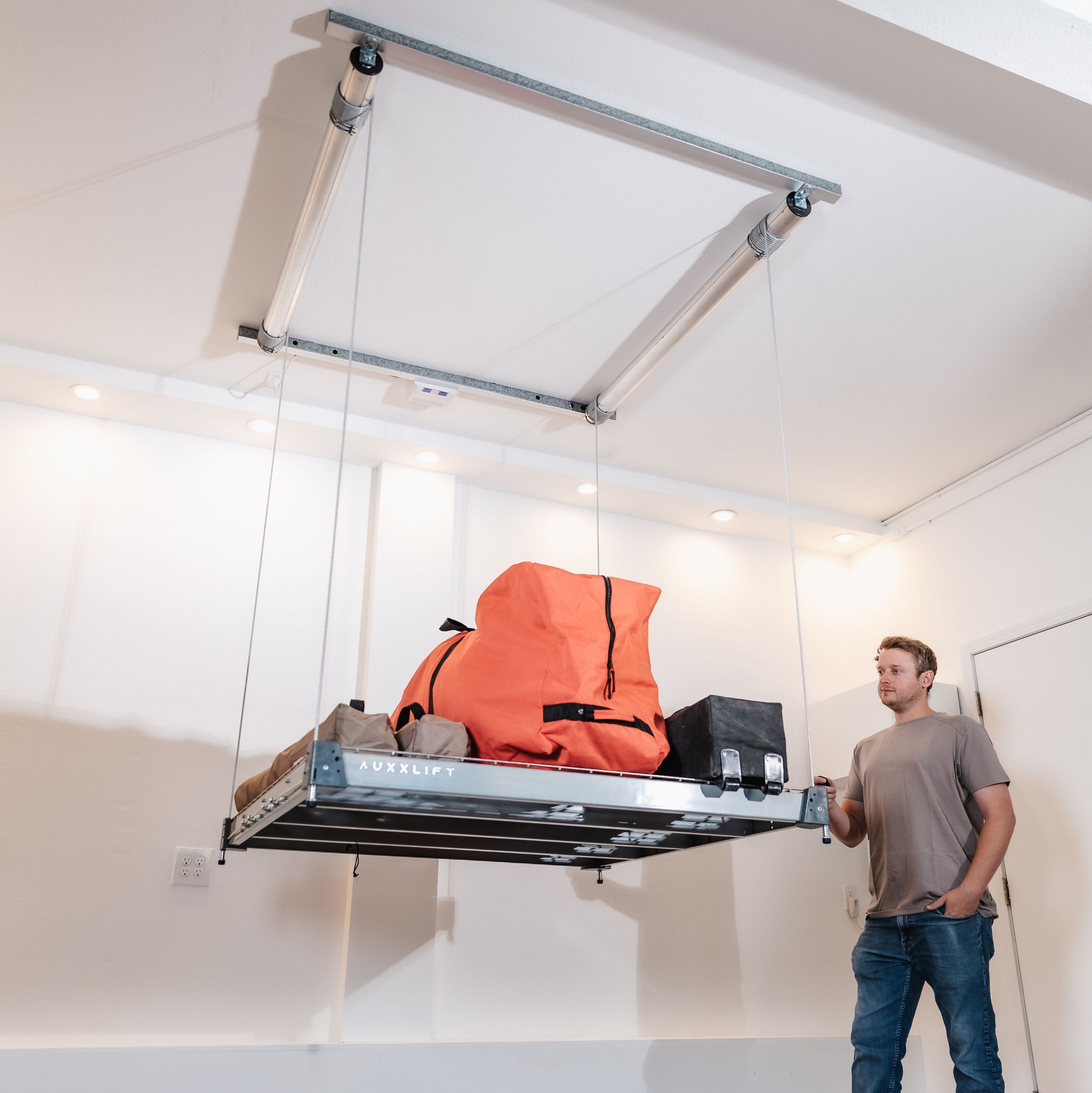

Easily store your items with the push of a button, lift up to 600 lbs, steel aircraft cables, made in USA - uses SPAX® fasteners, easy installation (but installers available), built-in safety features - the only lift tested to UL-standards.
400 LBS
General specs
- Model: Auxx-Lift 1400
- Lifting Capacity: Up to 400 lbs
- Max. Travel Distance: 13'-6" (18'-0" w/ Extension)
- Min. stored height: 8 in
- Speed: Avg. 30sec for 9' ceilings
Ceiling Support

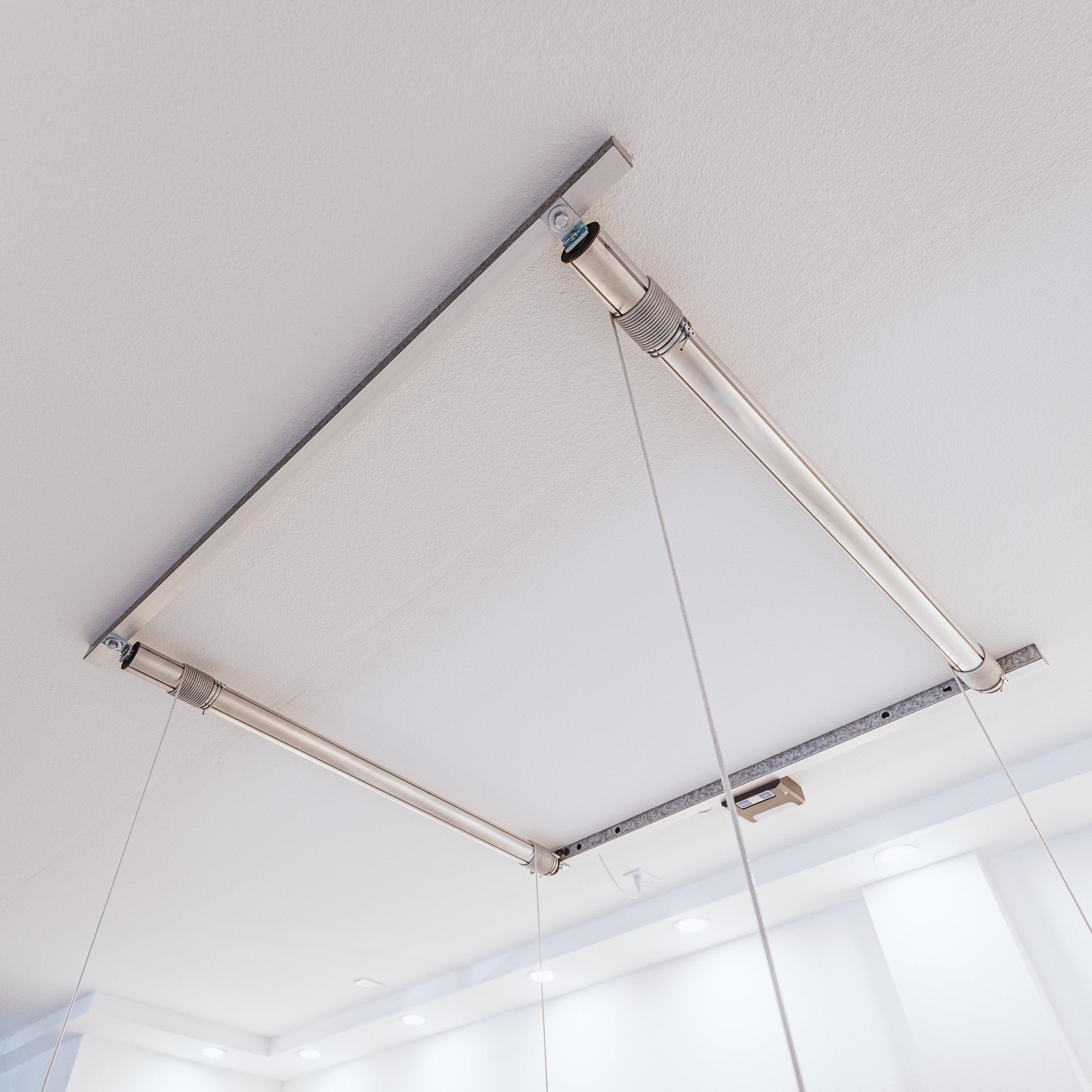

- Type: (2) 1 5/8" x 60" strut channel
- Fasteners: (8) 5/16" x 4" SPAX© Lag Bolts

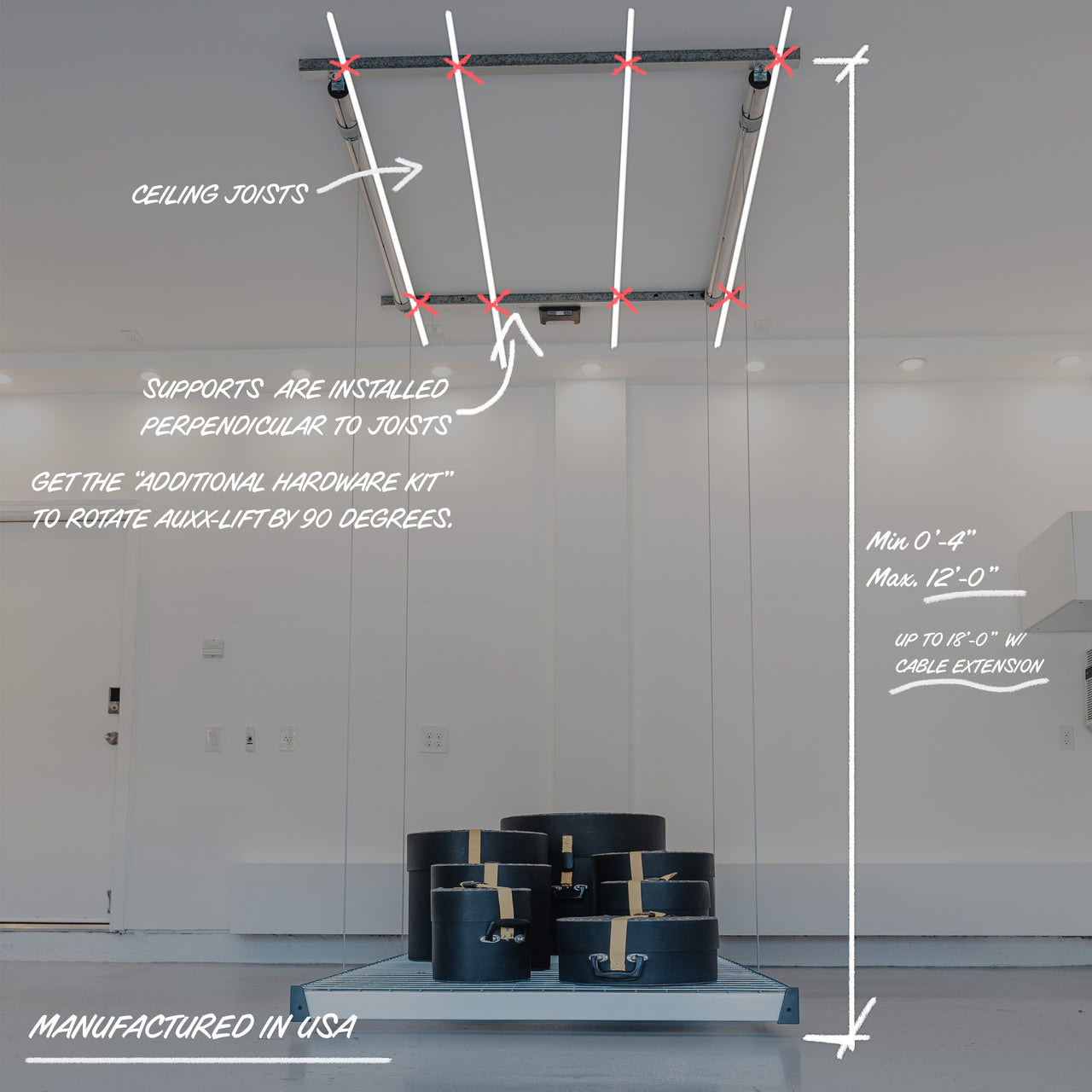

- Mounting Area: 5' x 5' over 3 joists/rafters

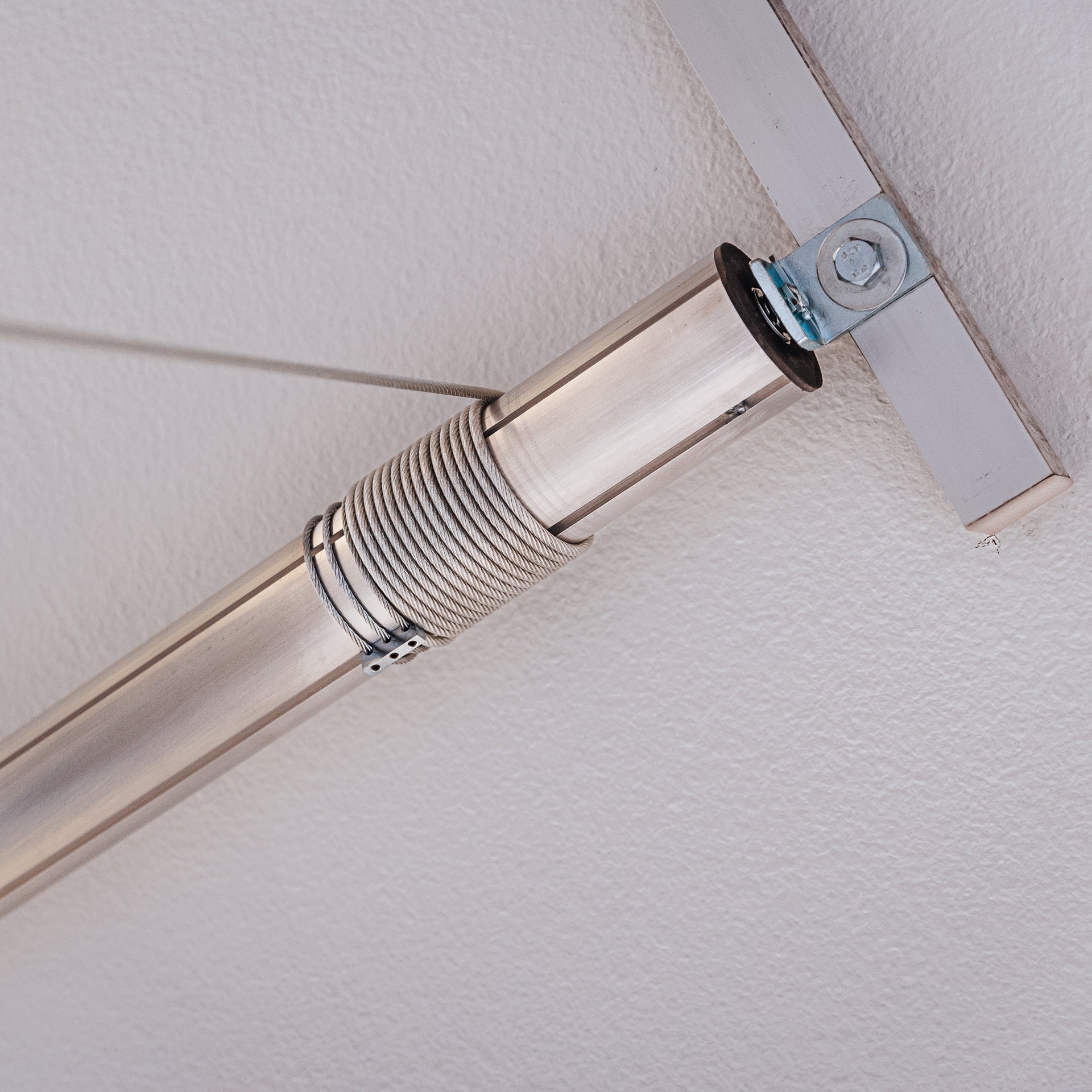

- Cable: 1/8” Vinyl-coated Steel 7x19
- Cable Strength: 2,000 lbs
Operating Requirements
- Switch Voltage: 110V / 120V
- Transmitter: 433.92 MHz
- Electrical Cord: 10 FT / 16 gauge / NEMA 5-15
- Min. circuit size: 15 amp (Standard household)
Platform Specs
- Thickness: 2.5 inches
- Support Frame: C-Channels (15gauge)
- Face material: 3 x 3 galv. Wire Mesh (4gauge)
Motors
- Type: IP44 (T-Motor)
- Rated Power: 235 W
- Rated Current: 2.2 A
- Voltage / Phase: 100-120V AC / Single
- Tube Diameter: 70mm (2-3/4 in)
- Motor speed: 13 rpm
- Duty Cycle @ Max. Capacity: 3 min on, 15 min off
600 LBS
General specs
- Model: Auxx-Lift 1600
- Lifting Capacity: Up to 600 lbs
- Max. Travel Distance: 13'-6" (18'-0" w/ Extension)
- Min. stored height: 8 in
- Speed: Avg. 30sec for 9' ceilings
Ceiling Support
- Type: (2) 1 5/8" x 60" strut channel
- Fasteners: (8) 5/16" x 4" SPAX© Lag Bolts
- Mounting Area: 5' x 5' over 3 joists/rafters
- Cable: 3/16” Vinyl-coated Steel 7x19
- Cable Strength: 4,200 lbs
Operating Requirements
- Switch Voltage: 110V / 120V
- Transmitter: 433.92 MHz
- Electrical Cord: 10 FT / 16 gauge / NEMA 5-15
- Min. circuit size: 15 amp (Standard household)
Platform Specs
- Thickness: 2.5 inches
- Support Frame: C-Channels (15gauge)
- Face material: 3 x 3 galv. Wire Mesh (4gauge)
Motors
- Type: IP44 (T-Motor)
- Rated Power: 680 W
- Rated Current: 6.0 A
- Voltage / Phase: 100-120V AC / Single
- Tube Diameter: 85mm (3-3/8 in)
- Motor speed: 11 rpm
- Duty Cycle @ Max. Capacity: 3 min on, 15 min off
The box includes 2 motors, controller, a remote control, 2 C-strut channels, a platform, and mounting hardware.
